© Panduit Corp. 2018
INSTALLATION INSTRUCTIONS
For Technical Support: www.panduit.com/resources/install_maintain.asp
V00029NY
Page 9 of 11

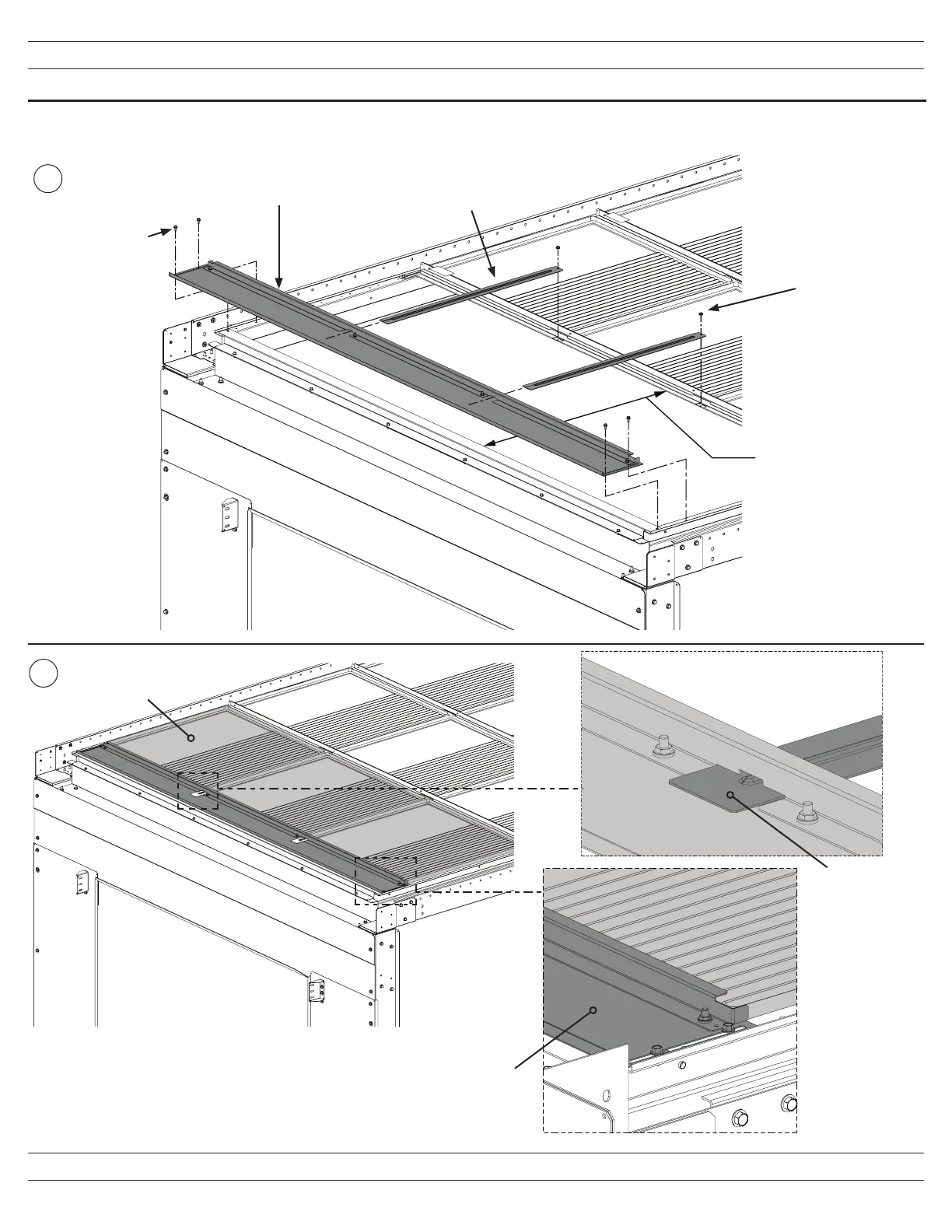

Installation of the last Panels and Slider Plate Assembly with End of Row Cross Beams
Option 1. Last opening is between 23.3” and 27.8”
• Install Slider Plate Assembly with End of Row Cross Beams using full Panels.
Full Panel - 23.3” to 27.8”
Cut Panel - less than 23.3”
Slider Plate Assembly
End of Row
Cross Beam
2 places
M5x0.8 x 10mm
Hex Head Screw
4 places
M5x0.8
Hex Nut
2 places
End of Row
Cross Beams
slide through
pockets in Slider
Plate Assembly
Slide the Slider Plate Assembly over to
support the (3) full Panels, then tighten
the (4) M5x0.8 x 10mm Hex Head Screw
Full Panels
3 places
1
2
Figure 1
