INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
CM546B
Page 10 of 14

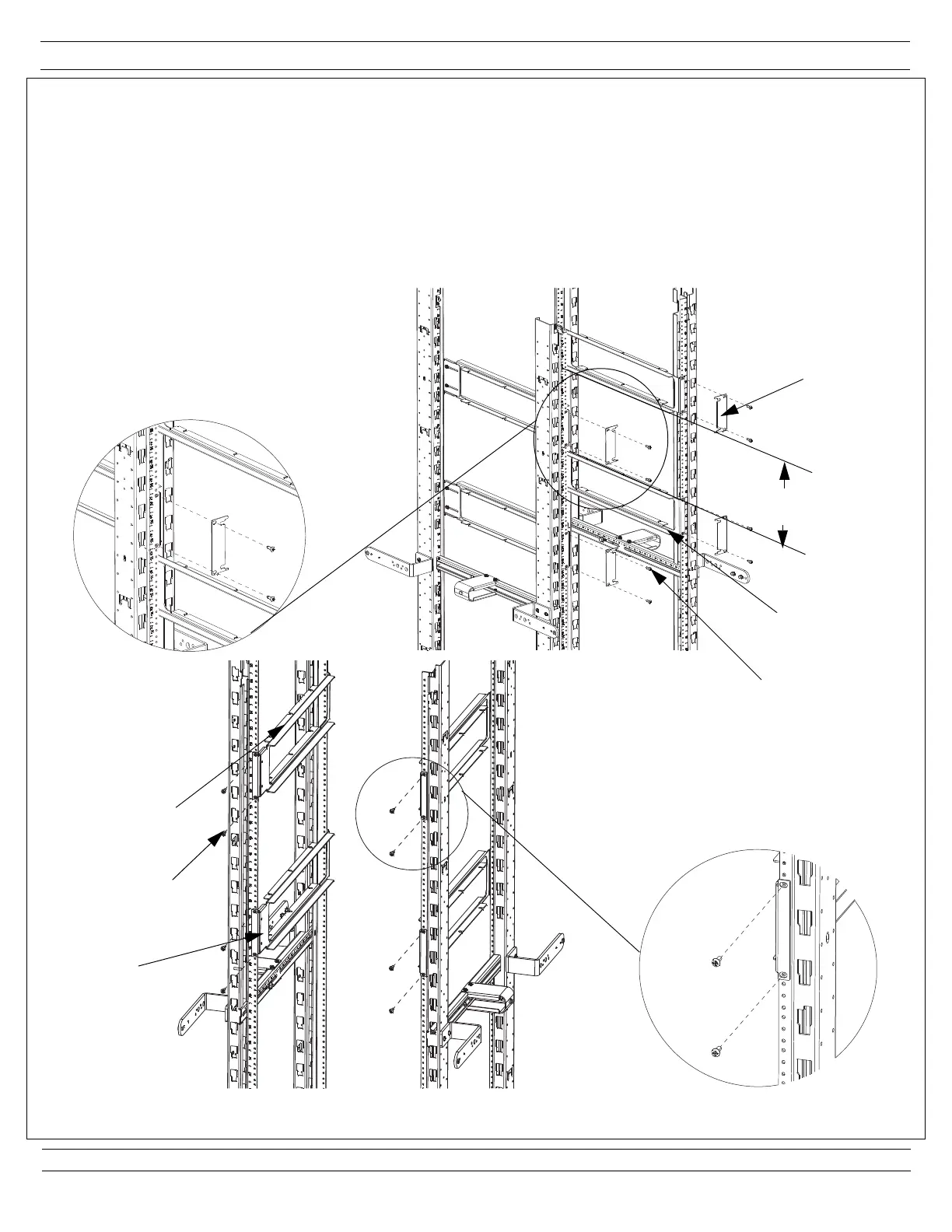

Side Bracket Installation (Switch Cabinet Application)
Loosely attach the switch adjustment bracket to the side bracket using (2) #10-32 nuts. Adjust the bracket to match the distance between
the front and rear rails of the switch cabinet. Align the side bracket with the desired rack space, fasten the bracket and seal plate together
to the rack using (2) #12-24 screws in the front rail and (2) #12-24 screws in the rear rail. Tighten nuts on the adjustment bracket to lock
in place. Attach a second bracket on the same side leaving (7) rack spaces from first bracket.
-Repeat previous steps for opposite side brackets.
Rear of Cabinet
(Hot Aisle)
Front of Cabinet
(Cold Aisle)
Rear of Cabinet
(Hot Aisle)
Front of Cabinet
(Cold Aisle)
Seal Plate (4)
#12-24 screw (8)
Side Bracket (4)
7 Rack
Spaces
#12-24 screw (8)
Side Bracket (4)
Adjustment
Bracket (4)
NOTE ORIENTATION OF
HOT AISLE.
