For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
RW207
1
32
4
3a
- or -

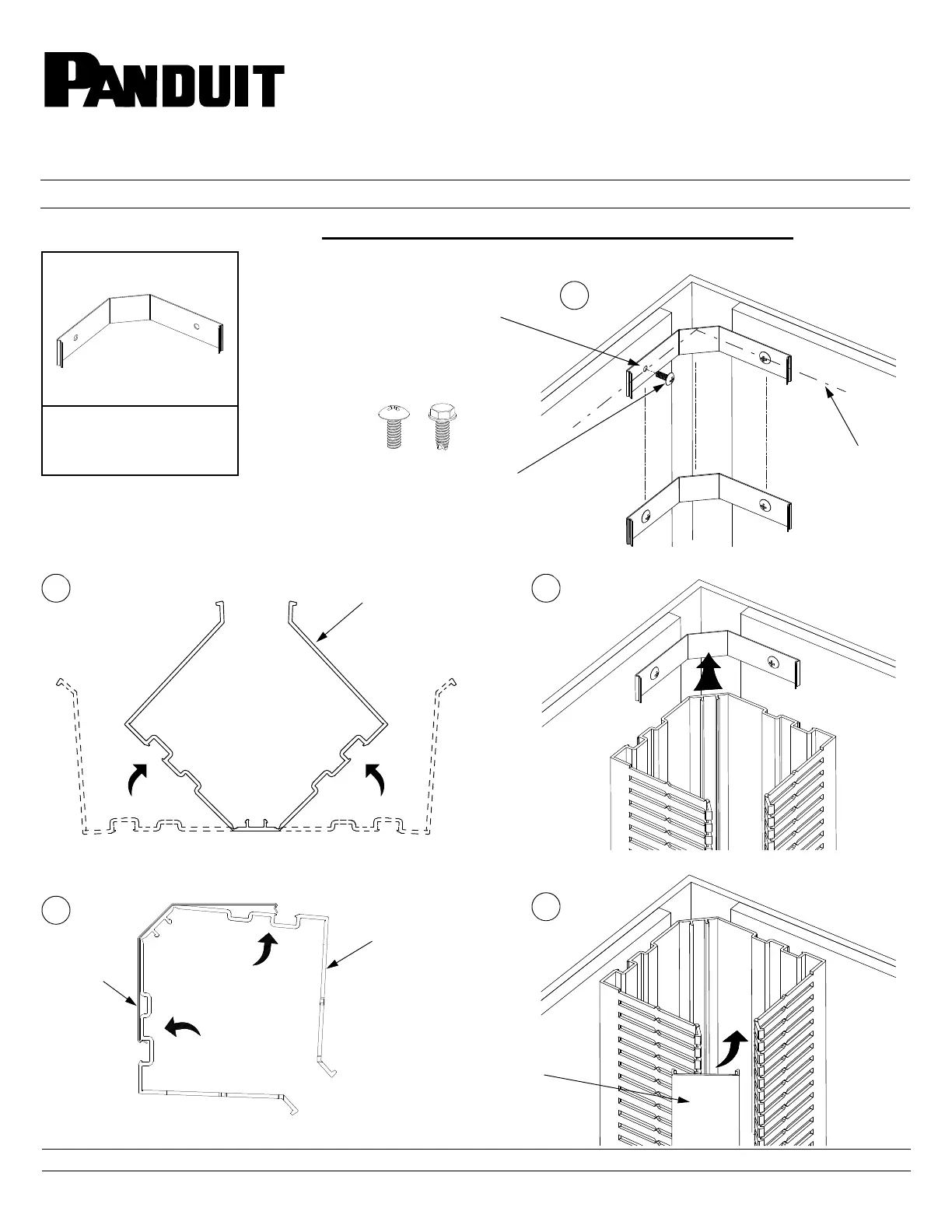

Option 1 - Panduct Corner Wiring Duct Mounting Clip
Note: Clips provide a permanent installation and are not intended to allow for product removal
Panduct PanelMax One-Piece Corner Wiring Duct
For use with Panduit Panduct Types
F, G, FS and D Wiring Duct
Part Numbers: CWD2**6, CWD3**6, CWD4**6, C2**6, CDCLP2, CDCLP3,
CDCLP4, CDLB3, CDLB4
CDCLP2, CDCLP3,
CDCLP4
(sold separately)
CWD2**6
CWD3**6
-or-
CWD4**6
Note: #10-32 x 1/2" (or sheet metal
screw equivalent) to be supplied by
the installer/end user
Refer to chart on page 4 for
mounting hole locations
Mounting clips must
be installed level
Wiring Duct
Mounting
Clip
C2**6
(sold separately)
Page 1 of 4
** Denotes color.
