For Technical Support: www.panduit.com
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2025
V00029MX_08
Page 11 of 16

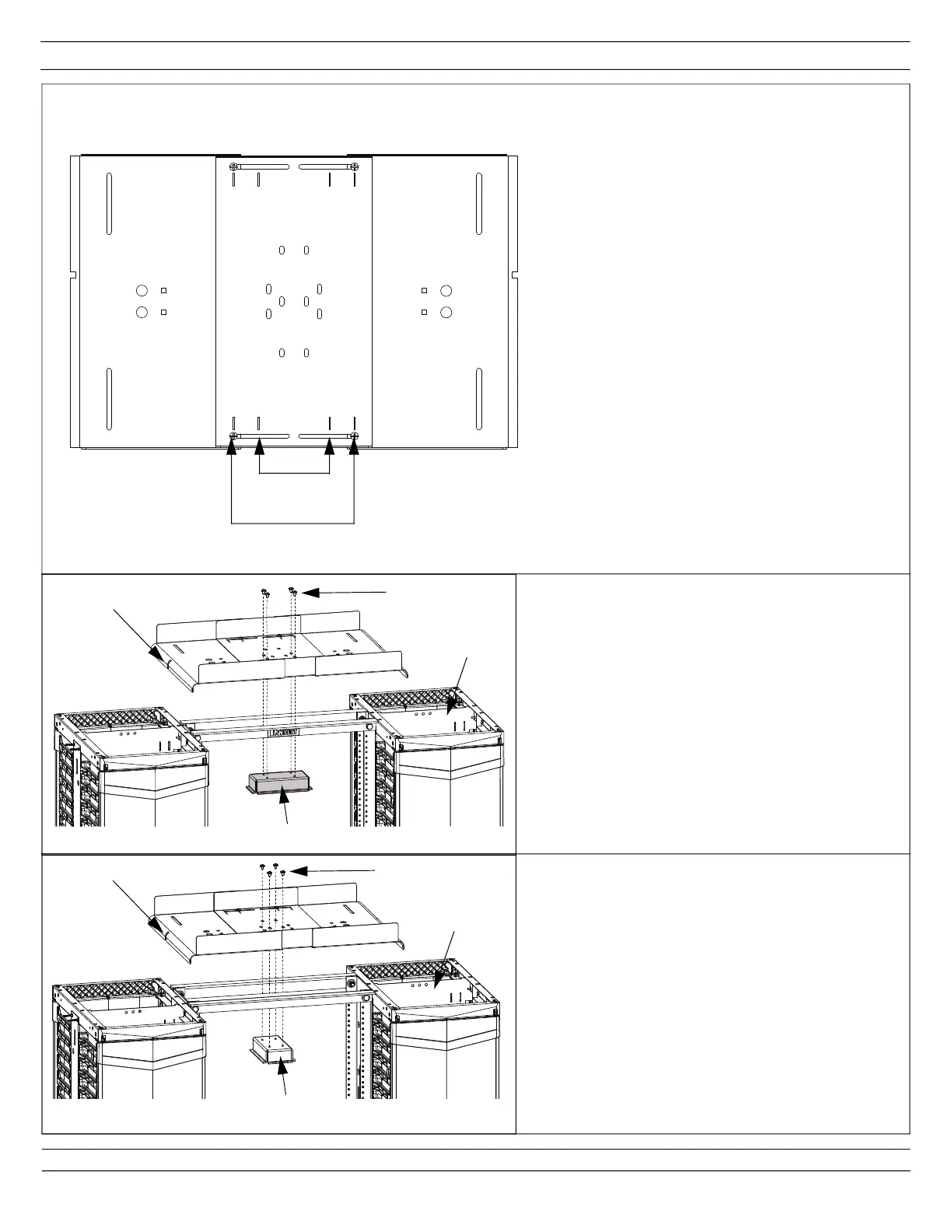

Waterfall Installation for PATCHRUNNER
TM
2 Vertical Managers and Open Racks
Part number:
PR2VWF, PR2VWFWH
Width adjustment of PR2VWF.
1) Adjust the width of the waterfall to fit your
rack by loosening the (4) Phillips head
screws (do not remove) and align them
with the corresponding markers for your
specific rack.
2) Tighten the (4) Phillips head screws.
INSIDE
MARKERS
OUTSIDE MARKERS
For R2P: INSIDE MARKERS
1) Align waterfall slots around the backbone
part of the manager as shown.
2) Place waterfall mounting bracket under
rack between the top angles so that flanges
will stop the bracket. Align holes in bracket
with holes in waterfall.
3) Fasten components together using (4)
M6 x 8mm screws.
(4) M6 x 8mm
Screws
Backbone
Waterfall mounting bracket
Waterfall slots
For R2P6S: INSIDE MARKERS
1) Align waterfall slots around the backbone
part of the manager as shown.
2) Place waterfall mounting bracket under
rack between the top angles so that the
flanges will stop the bracket. Align holes in
bracket with holes in waterfall.
3) Fasten components together using (4)
M6 x 8mm screws.
Waterfall slots
(4) M6 x 8mm
Screws
Backbone
Waterfall mounting bracket
