For Technical Support: www.panduit.com
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2025
V00029MX_08
Page 8 of 16

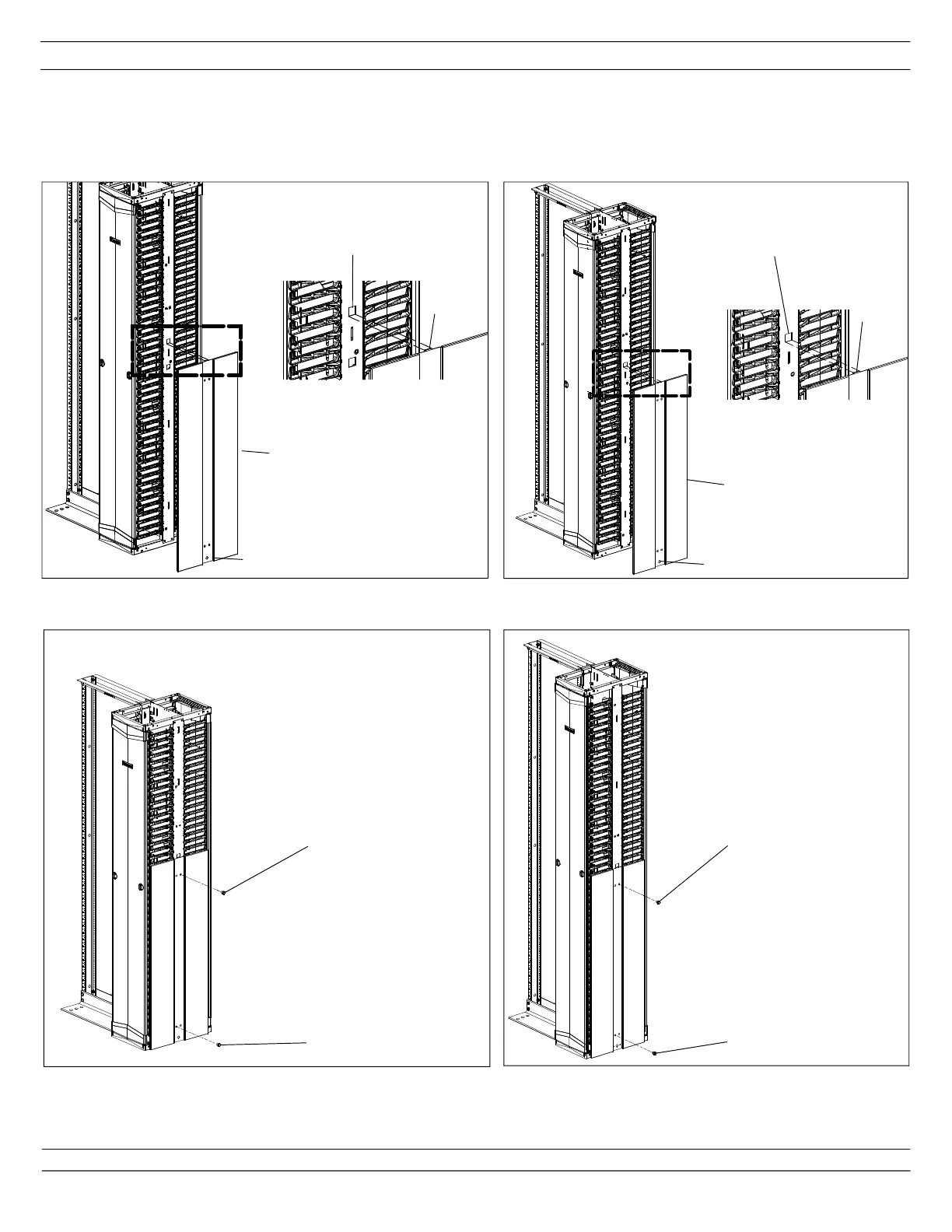

Step 2: Fasten using (2) M10 x 16 serrated hex head bolts and (2) M10 serrated hex head nuts.
Step 1: Use integrated hook at top of bottom panel to attach to square located on manager as shown.
Installing Bottom Panel:
End Panel Installation to P
ATCHRUNNER
TM
2 Vertical Managers
Part Number(s): PR2VEP, PR2VEPWH, PR2VEP96
diamond indicates bottom of panel
integrated
hook
bottom
panel
7 foot rack
square on manager
8 foot rack
integrated
hook
square on manager
bottom
panel
diamond indicates bottom of panel
7 foot rack
M10 X 16 Serrated Hex Head Bolt &
M10 Serrated Hex Head Nut
M10 X 16 Serrated Hex Head Bolt &
M10 Serrated Hex Head Nut
8 foot rack
M10 X 16 Serrated Hex Head Bolt &
M10 Serrated Hex Head Nut
M10 X 16 Serrated Hex Head Bolt &
M10 Serrated Hex Head Nut
