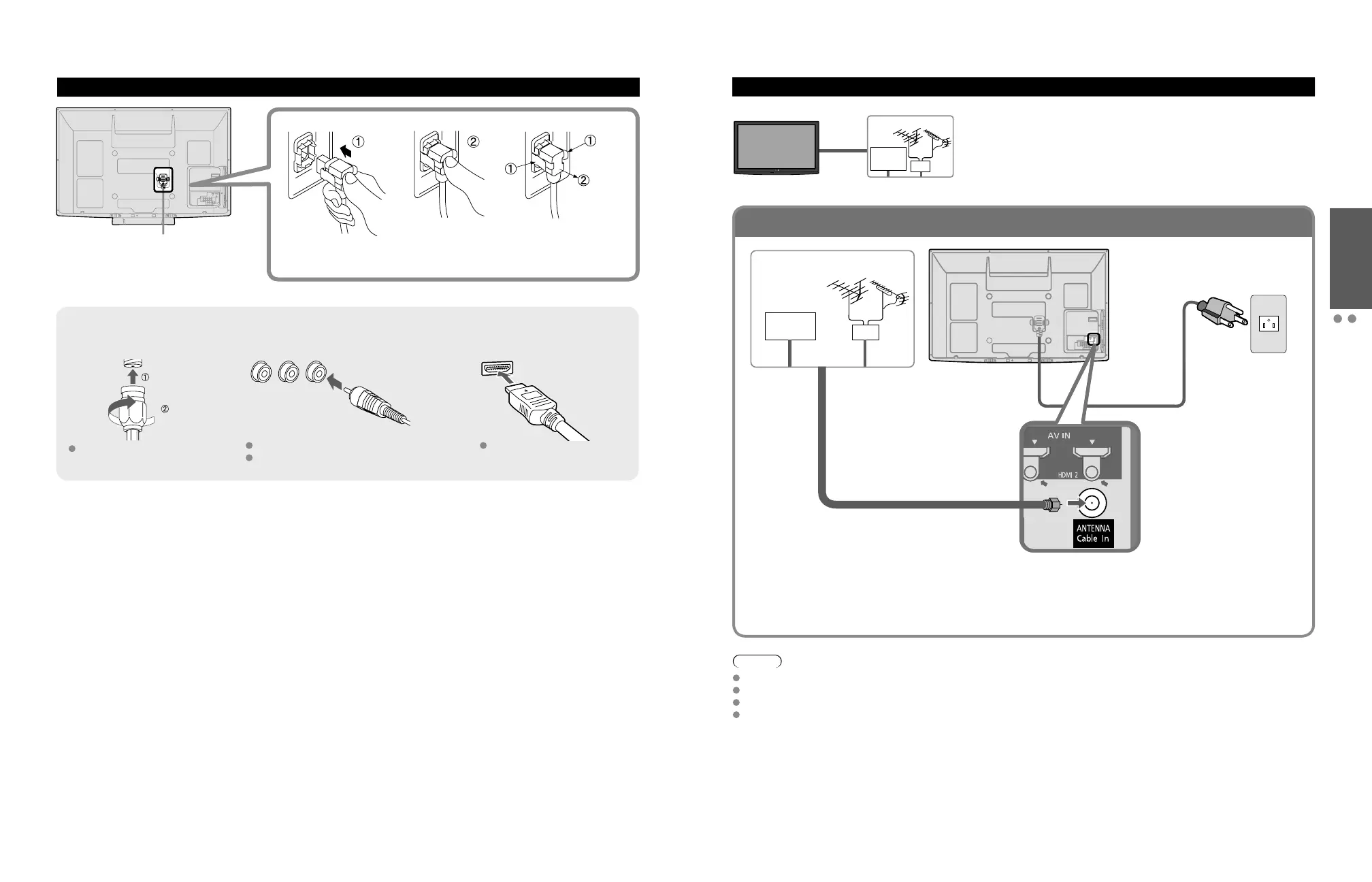

Quick Start
Guide
Basic Connection (Antenna + TV)
Accessories/Optional Accessory
To connect the antenna terminal
Basic Connection
Note
Not all cables and external equipment shown in this book are supplied with the TV.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
For additional assistance, visit us at: www.panasonic.com
www.panasonic.ca
Example
Connecting Antenna (To watch TV)
Cable TV
VHF/UHF Antenna
TV
VHF/UHF Antenna
•
NTSC (National Television System Committee):
Conventional broadcasting
•
ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV),
standard-definition television (SDTV), data broadcasting, multi-
channel surround-sound audio and interactive television.
AC Cord
(Connect after all the
other connections have
been made.)
Back of the TV
Cable TV
AC 120 V
60 Hz
VHF/UHF Antenna
or
Accessories/Optional Accessory (Continued)
AC cord connection
Antenna terminal Pin terminals HDMI terminal
greenbluered
green
Firmly tighten by hand.
Match colors of plugs and terminals.
Insert firmly.
Insert firmly.
Reference of connection
Cable
•
You need to subscribe to a cable TV service to enjoy viewing their programming.
•
You can enjoy high-definition programming by subscribing to a high-definition cable Service.
The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 12)
•
To view high-definition programming select the correct video input. (p. 24)
* See page 10
(AC cord
connection)
To attach To remove
Insert it firmly until the
tabs on both sides click
into place.
Keep pushing both
sides until they snap
and pull.
