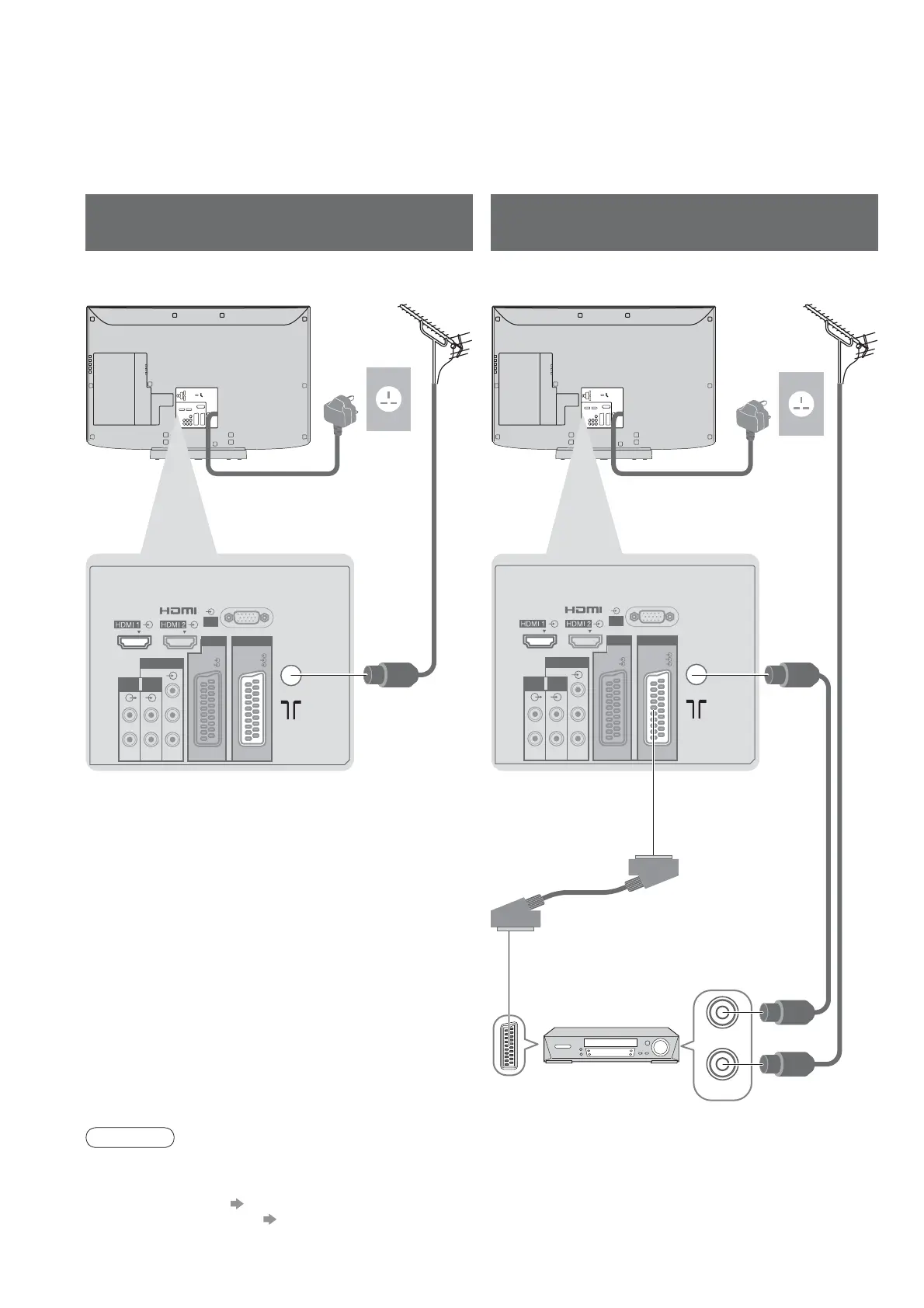

Basic Connection
Mains lead
Mains lead
SCART cable
(fully wired)
DVD Recorder or VCR
RF cable
Aerial AerialRear of the TV Rear of the TV
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
RF cable
RF cable
TV only TV, DVD Recorder or VCR
AC 220-240 V
50 Hz
AC 220-240 V
50 Hz
Note
•
Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 31).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable
(p. 36).
•
Q-Link connection p. 30
•
VIERA Link connection p. 30
•
Read the manual of the equipment too.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
