Basic Connection
Quick Start Guide
(ARC)
COMPONENT
AUDIO
IN
AUDIO
OUT
Y
P
B
P
R
L
R
L
R
DIGITAL
AUDIO
OUT
2
1
RF OUT
RF IN
RF IN
RF OUT
RF IN
PC
HDMI
3
1
Cable
Note
Connect to the TV’s AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 74).
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by
using HDMI cable (p. 80).
Network connection p. 14 and p. 63
Q-Link connection
p. 72
VIERA Link connection
p. 72 and p. 73
Please also read the manual of the equipment being connected.

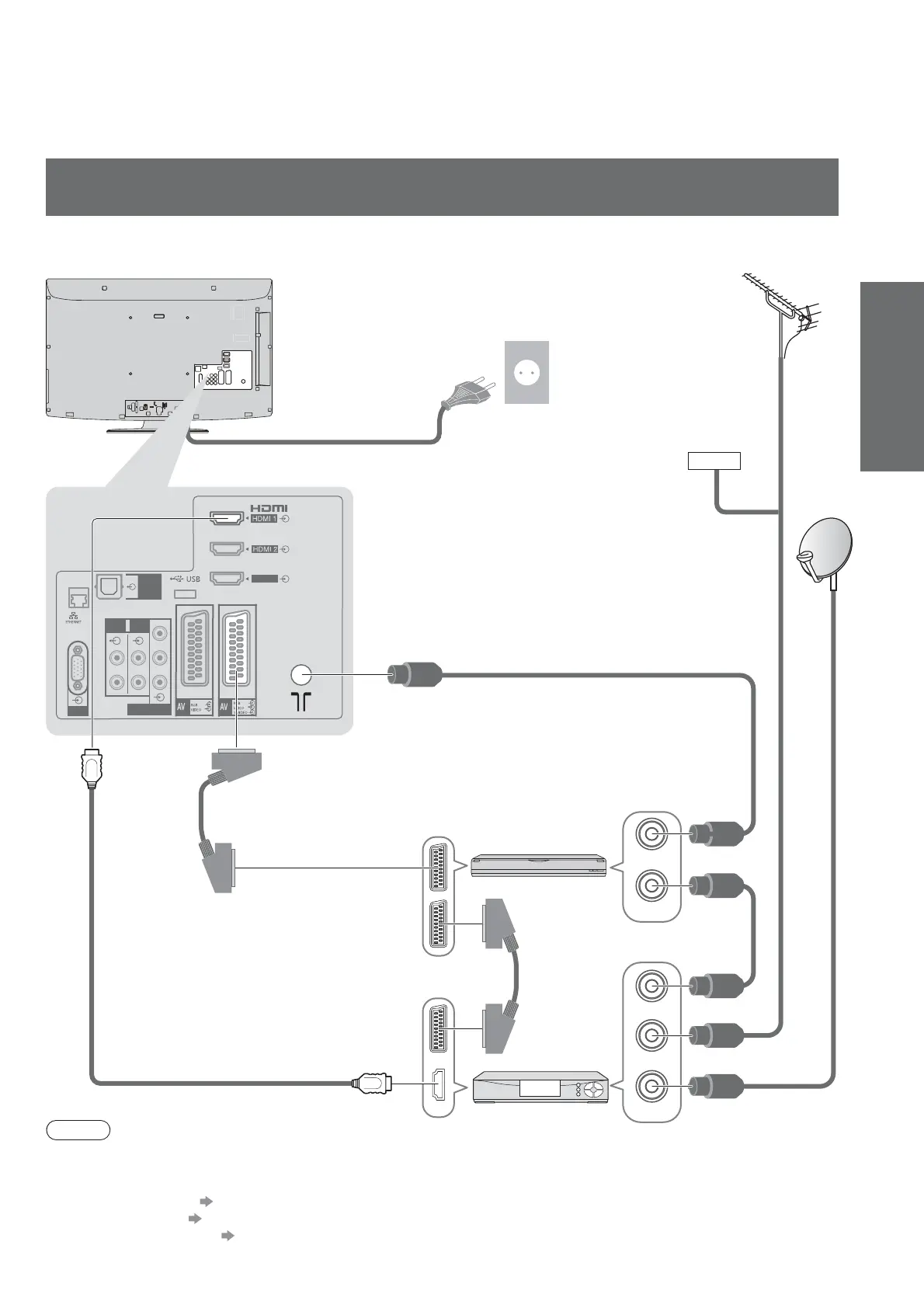

Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
DVD Recorder
or VCR
Terrestrial
aerial
Mains lead
Rear of the TV
Set top box
AC 220-240 V
50 Hz
RF cable
Fully wired
SCART cable
Fully wired
SCART cable
Fully wired HDMI
compliant cable
RF cable
RF cable
RF cable
11
