Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

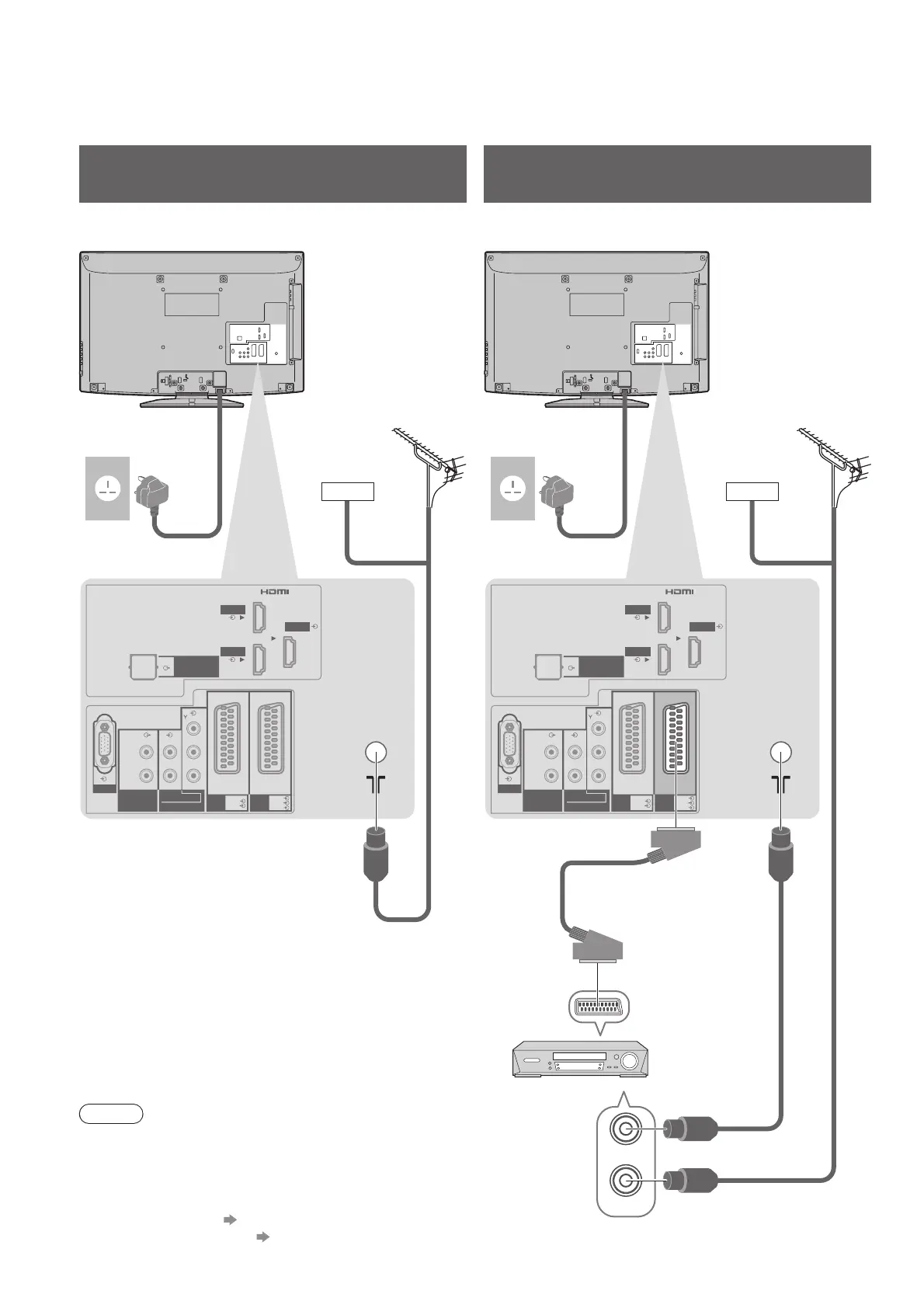

Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Note
Connect to the TV’s AV1 / AV2 for a DVD Recorder / VCR ●
supporting Q-Link (p. 48).
For HDMI-compatible equipment, possible to connect to ●
HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by
using HDMI cable (p. 54).
Q-Link connection ● p. 46
VIERA Link connection ● p. 46 and p. 47
Read the manual of the equipment too. ●
RF cable
RF cable
Rear of the TV
RF cable
Mains lead Mains lead
AC 220-240 V
50 / 60 Hz
AC 220-240 V
50 / 60 Hz
Rear of the TV
Fully wired
SCART cable
DVD Recorder
or VCR
Terrestrial
aerial
Terrestrial
aerial
Cable Cable
