PART NAMES AND FUNCTIONS

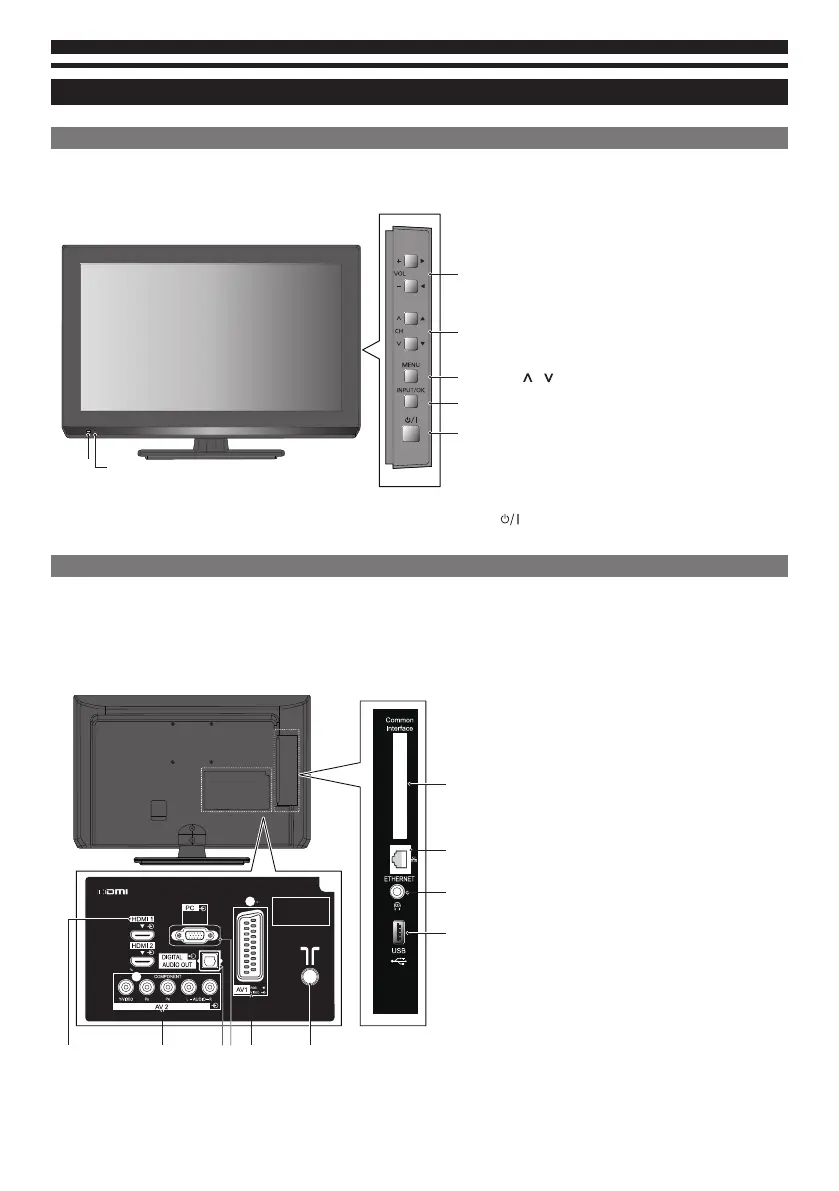

TV Controls/ Indicators
3
4
5
6
7
1 2
1 Remote Control Signal Receiver
•
Do not place any objects between the TV remote
control signal receiver and remote control.
2 Power Indicator
Red: Standby
Green: On
Green blink: Receiving a command from the
remote control.
3 VOL +/-
•
Used to change volume.
•
Used to adjust the value of the selected item on
On-Screen Menu.
4 CH /
•
Used to change channels.
•
Used to select item on On-Screen Menu.
5 MENU
•
Open or close the On-Screen Menu.
6 INPUT/OK
•
Use to select an input source.
•
Confirm and enter a selection.
7 (POWER)
•
Use to turn the TV On or Off.
TV (Side / Back)
AV IN
PC AUDIO
via AV 2
>PC<
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D
symbol are trademarks of
Dolby Laboratories.
ST3
ST3
>PC<
7
9
8
1 2 5
6
34
10
1 HDMI 1/HDMI 2
•
Connect all kinds of HDMI output equipment.
•
When connecting a DVI device using an HDMI-DVI
adapter, connect the device to the HDMI1 jack.
2 AV 2
•
Connect video and audio output from video
equipment.
3 DIGITAL AUDIO OUT
•
Connect an audio amplifier to this jack.
4 PC
•
Connect computer outputs to this terminal.
•
Connect an audio cable to L/R jacks of AV2 and audio
out jack on the computer.
5 AV 1
•
Full SCART, which transmits RGB, S-Video and CVBS
in, and audio/video out (Analogue only).
6 Aerial Jack
•
Connects to TV RF signals (antenna/CATV).
7 Common Interface
•
The Common Interface Module menu provides
access to software contained on Common Interface
(CI) Modules.
8 ETHERNET
•
This terminal is for access to the MHEG interactive
services and features through an internet.
•
Please contact broadcasters for availability of
services.
9 Headphone
•
Connect a headphone (stereo) to this jack and the TV
speaker out will be muted.
10 USB
•
Connect USB memory stick to this terminal to play
Multimedia.
