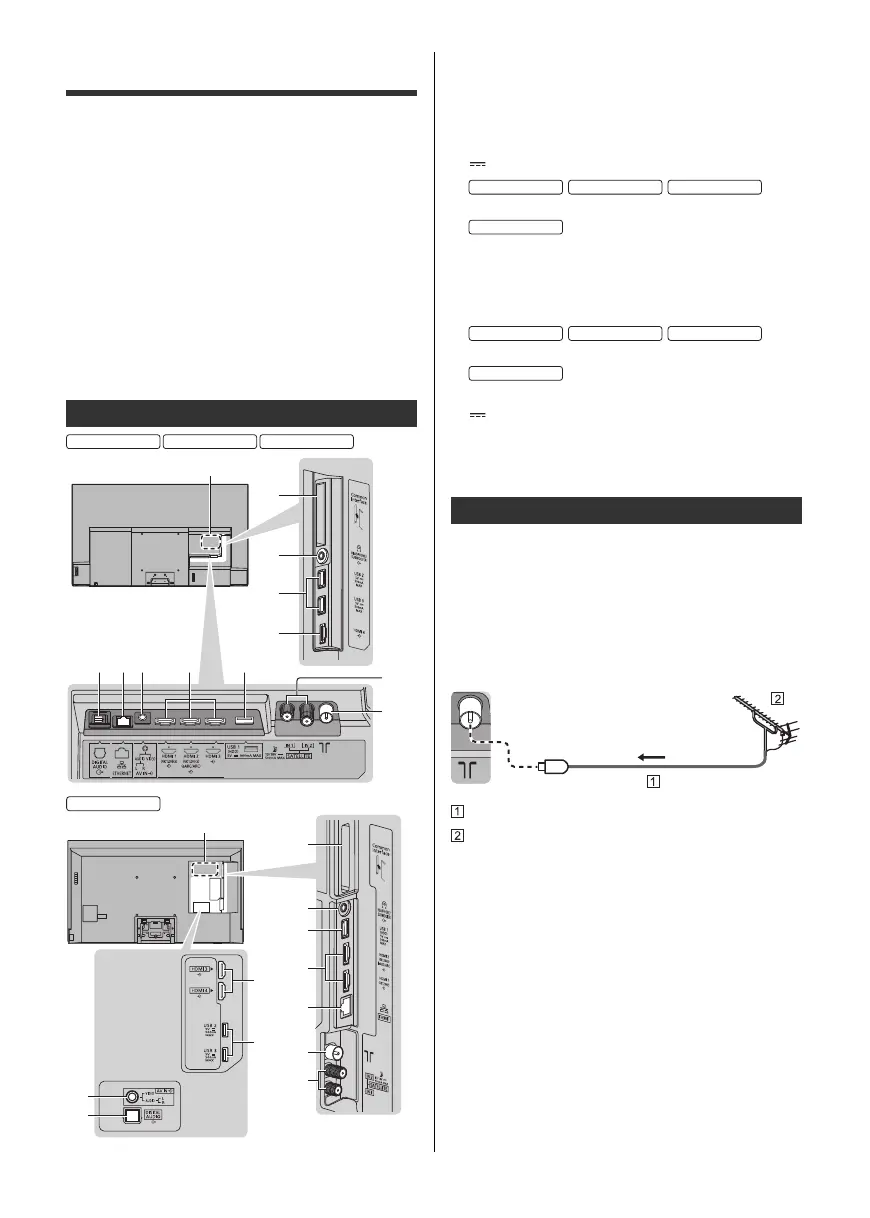

Connections
≥ External equipment and cables shown are not
supplied with this TV.
≥ Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
≥ Check the terminal type and cable plugs are correct
for connection.
≥ Use a fully wired HDMI compliant cable.
≥ Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
≥ Please also read the manual of the equipment being
connected.
1 Model name plate
2 CI slot
3 Headphone / Subwoofer jack
(3.5 mm stereo mini plug)
4
USB 2 - 3 port
This symbol indicates DC operation.
5:
HDMI 4
: HDMI 1 - 2
6 DIGITAL AUDIO
7 ETHERNET terminal
≥ Use Shielded Twist Pair (STP) LAN cable.
8AV IN
9:
HDMI 1 - 3
: HDMI 3 - 4
10
USB 1 port
This symbol indicates DC operation.
11
Satellite terminal
12
Terrestrial terminal
∫ AV devices
(DVD Recorder / Blu-ray Recorder, Cable TV box, etc.)
≥ For details, refer to [eHELP] (Search by Purpose >
Watching > Basic > Basic connection).
∫ Aerial
(For viewing digital / analogue broadcasts)
TV
RF cable
Terrestrial aerial
Terminals
48-inch model
55-inch model
65-inch model
6 7 8 109
12
11
3
2
5
4
1
42-inch model
3
4
9
2
7
8
6
5
1
11
10
12
Basic connections
48-inch model
55-inch model
65-inch model
42-inch model
48-inch model
55-inch model
65-inch model
42-inch model
