English
26

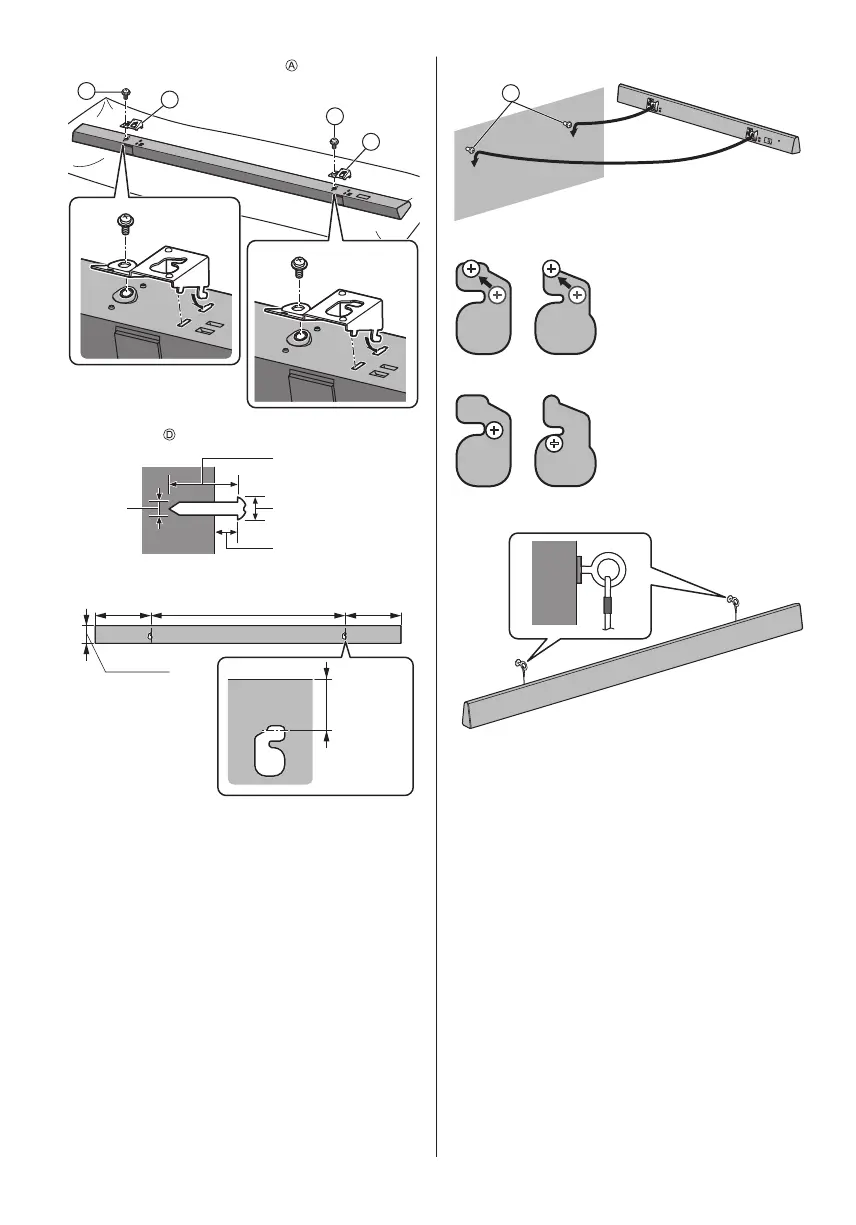

2 Attach the wall-hanging brackets to the speaker
B
A
B
A
3 Drive screws (optional) into the wall
4.0 mm
At least 30 mm
7.0 mm to 9.4 mm
4.5 mm to 5.5 mm
(View from the side)
202.5 mm 700 mm 202.5 mm
65 mm
22 mm
●
Use the measurements indicated below to identify the
screwing positions on the wall.
●
Leave at least 100 mm of space above of the speaker
to allow enough space for fitting the speaker.
●
Be sure to use a level to ensure that both mounting
holes are level to each other.
4 Fit the speaker securely onto the screws
D
DO
Move the speaker so that the
screw is in this position.
DO NOT
In this position, the speaker will
likely fall if moved to the left
or right.
5 Secure the wire to the wall
●
Make sure that the slack of the wire is minimal.
