Connections
Notes:
• Additional equipment and cables shown are not supplied with this TV set.
• Do not connect a computer with TTL output (5V) to this set.
• For Scart terminal wiring and applicable component signals information see page 28.
AV1/2
Y
P
B
PR
L
R
AUDIO
OUT
L
R
Y
P
B
PR
Y, PB, PR
OUT
DVD PLAYER

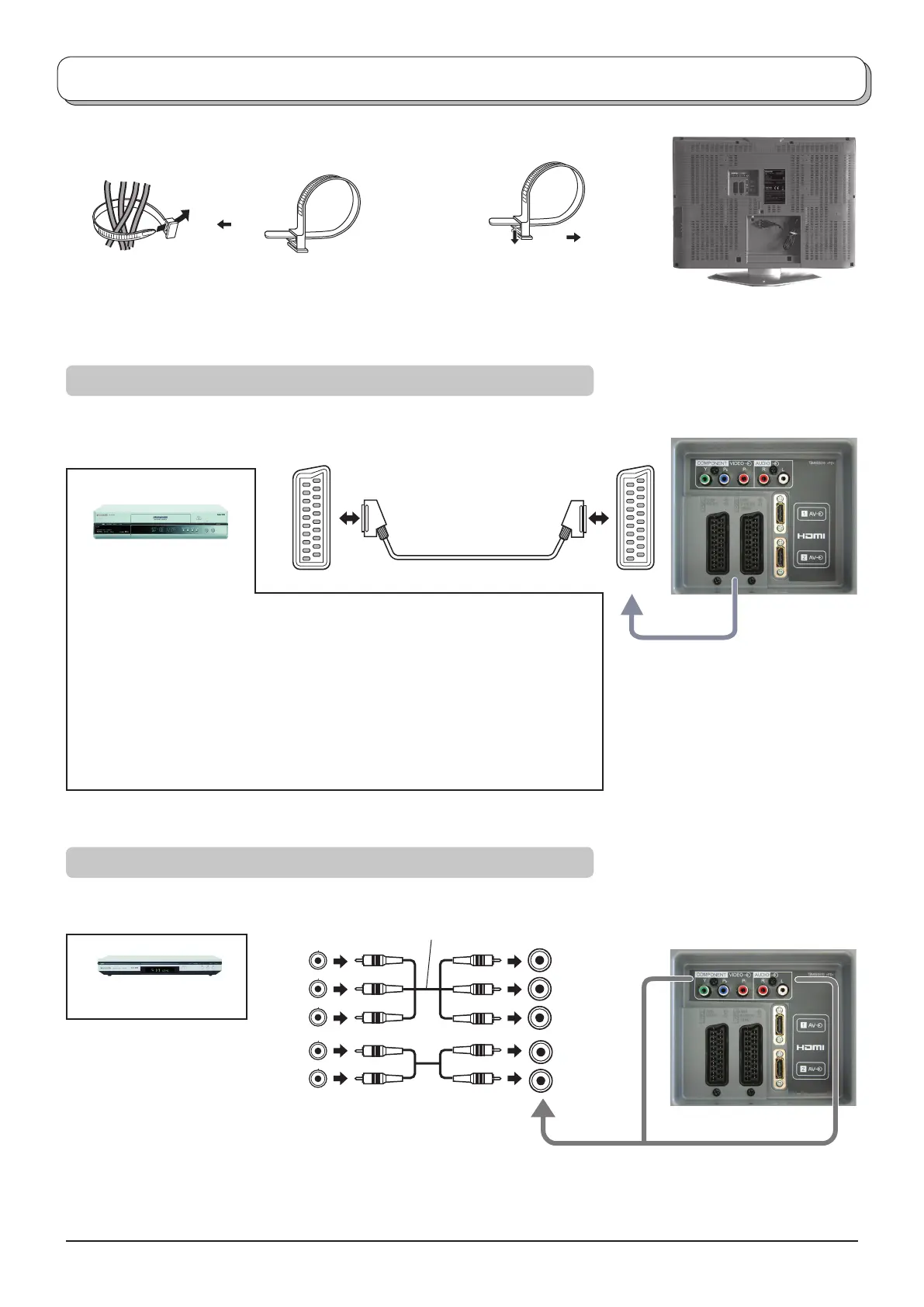

How to connect the Component Input terminals
How to connect the AV1 / 2 Scart terminals
AV1:
VCR
Q-Link COMPATIBLE VCR
SET TOP BOX
DVD PLAYER
DVD RECORDER
Q-Link COMPATIBLE DVD RECORDER
CAMCORDER
GAME CONSOLE / COMPUTER (RGB)
AV2:
VCR / S-VIDEO VCR
Q-Link COMPATIBLE VCR
SET TOP BOX
DVD PLAYER
DVD RECORDER
Q-Link COMPATIBLE DVD RECORDER
CAMCORDER / S-VIDEO CAMCORDER
GAME CONSOLE / COMPUTER (RGB)
This terminal accepts progressive or non-progressive signals format, as well as
high defi nition 750(720)/50p, 750(720)/60p, 1125(1080)/50i and 1125(1080)/60i.
To bundle the cables with the clamper
Note: Do not put the RF cable and the mains lead together to avoid noise.
To tighten: To loosen:
Pull
PullKeep the
knob pressed.
