6
Scart cables
(Not supplied)
SET TOP BOX
VCR / DVD
Recorder
RF cable
(Not supplied)

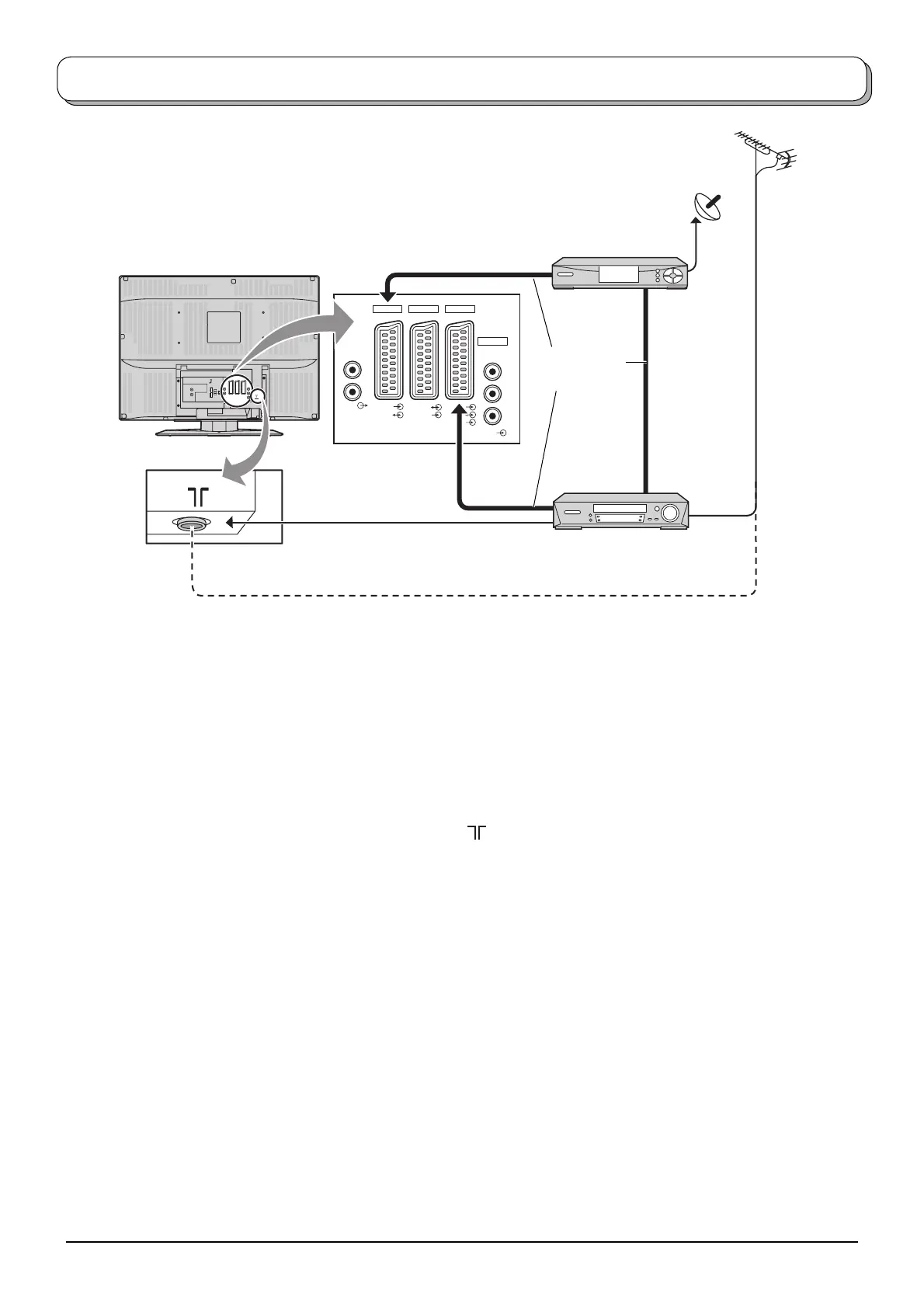

Connection and setting up options
Note:
Please ensure that the unit is disconnected from the mains
before attaching or disconnecting any leads.
RF cable (Not supplied)
OR
Quick Start Guide
Scart Connections
• The VCR / DVD Recorder can be connected to the TV using a Scart cable, if you are using a Scart equipped VCR
/ DVD Recorder.
• Use the TV’s any Scart terminal for any VCR. Always use a “fully wired” Scart cable.
• Use the TV’s AV1 or AV4 Scart terminal for any DVD Recorder. Always use a “fully wired” Scart cable.
• Use the TV’s AV1 or AV4 Scart terminal for Satellite Receiver. Always use a “fully wired” Scart cable.
RF Connection
• Connect the RF cable to the “Aerial In” terminal of the VCR / DVD Recorder and an RF cable from the VCR / DVD
Recorder “Aerial Out” terminal to the TV Aerial terminal ( ).
Notes:
• If using a “Q-Link” VCR / DVD Recorder, then the AV1 Scart of the VCR / DVD Recorder must be connected to the
AV2 or AV4 terminal of the TV. If your VCR or DVD Recorder is not a “Q-Link” device, please consult the operating
instruction book for that product. Further information on Q-Link can be found on page 21.
• Further details of Audio / Video connections can be found on page 28-30.
• Additional equipment and cables are not supplied.
