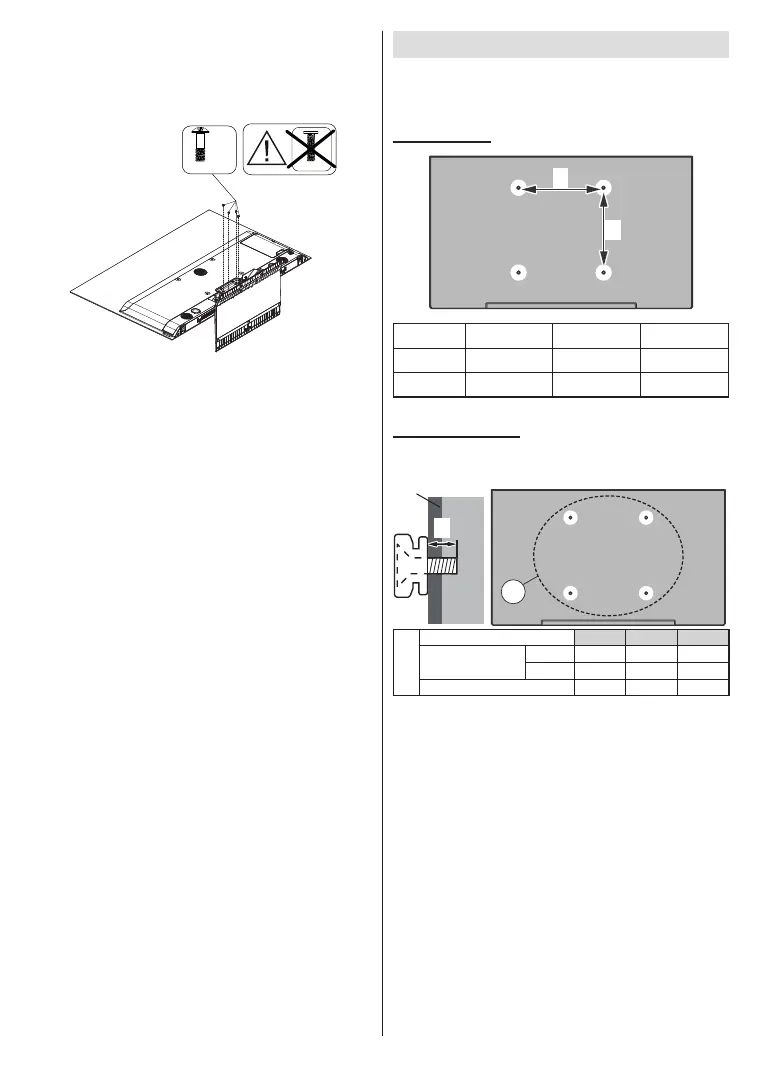

English - 5 -
When using the wall-hanging bracket
Please contact your local Panasonic dealer to
purchase the recommended wall-hanging bracket.
Holes for wall-hanging bracket installation;
Rear of the TV
a
b
48" 55” 65”
a (mm) 300 300 300
b (mm) 200 200 200
View from the side
c
VESA
Bracket
d
(d)
48” 55” 65”
Depth of screw
(c)
min. 10 mm 8 mm 15 mm
max. 13 mm 12 mm 20 mm
Diameter M6 M6 M6
Note: The screws for xing the TV onto the wall-hanging
bracket are not supplied with the TV.
2. Place the stand(s) on the stand mounting
pattern(s) on the rear side of the TV. Insert the
screws (M4 x 12 mm) provided and tighten them
gently until the stand is properly tted.
x4
M4 x 12 mm
M4 x 12 mm
X4
M4*12 HALF THREAD L5.6
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking
the TV.
• Put the TV onto a work table with the screen panel
down on the clean and soft cloth. Leave the stand(s)
protruding over the edge of the surface.
• Unscrew the screws that xing the stand(s).
• Remove the stand(s).
