English - 5 -

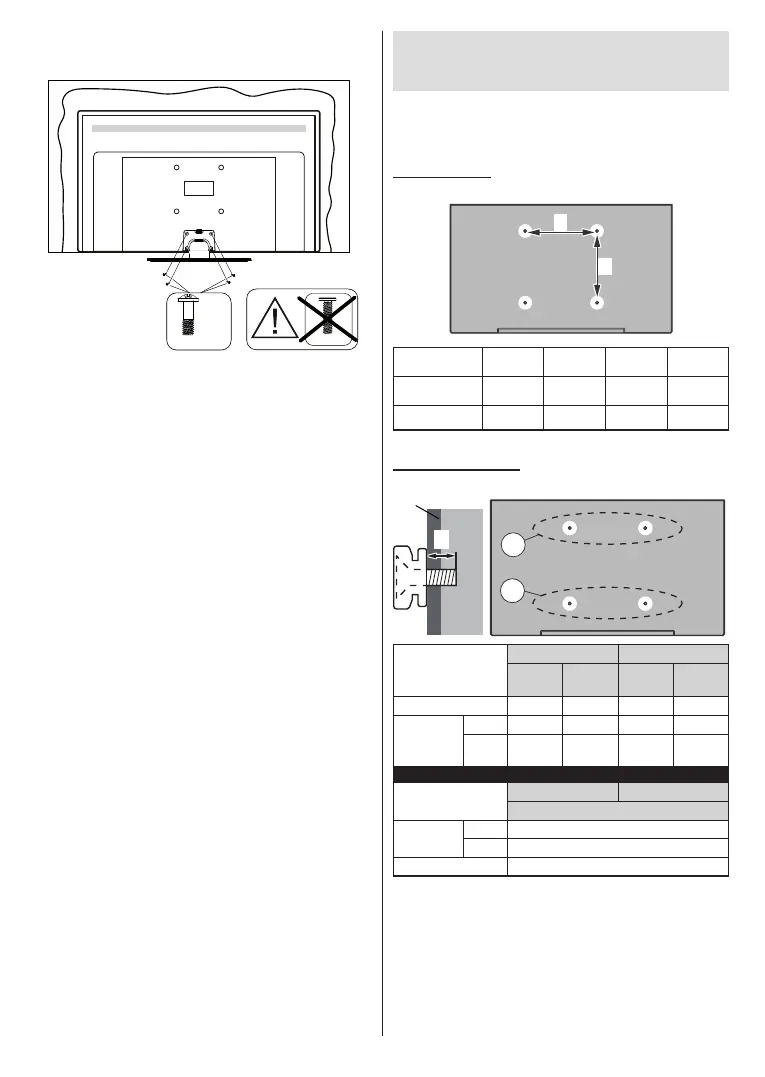

When using the wall-
hanging bracket
Please contact your local Panasonic dealer to
purchase the recommended wall-hanging bracket.
Holes for wall-hanging bracket installation;
Rear of the TV
a
b
43" 50" 55" 65"
a (mm)
100
200 200 400
b (mm) 100 200 200 200
View from the side
c
VESA
Bracket
e
d
(d) (e)
43” 50”
55”
43” 50”
55”
Diameter M4 M6 M4 M6
Depth of
screw
(c)
min. 8 mm 8 mm 5 mm 6 mm
max. 11 mm 11 mm 6 mm 8 mm
(d) (e)
65”
Depth of
screw (c)
min. 8 mm
max. 11 mm
Diameter M6
Note: The screws for xing the TV onto the wall-hanging
bracket are not supplied with the TV.
3. Insert the screws (M4 x 12 mm) provided and
tighten them gently until the stand is properly tted.
x4
M4 x 12 mm
M6 x 10 mm
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking
the TV.
• Put the TV onto a work table with the screen panel
down on the clean and soft cloth. Leave the stand(s)
protruding over the edge of the surface.
• Unscrew the screws that xing the stand(s).
• Remove the stand(s).
