28
English
Note
●
Component video signal is supported with this
terminal (Mini D-sub 15P).
Select an input signal mode with [Setup] - [PC input
mode] according to the input signal. (see page 98)
●
According to the [PC input mode] setting, the
synchronized signal supports the following inputs
only. (see page 98)
[PC]: HD/VD signal input only
[PC[YP
BPR]]: Only the synchronized signal
superimposed on Y signal input
●
Additional computer, cables and conversion adapter
shown are not supplied with this set.
●
If the computer being connected is not DDC2B-
compatible, you will need to make setting changes to
the computer at the time of connection.
●
When connecting a computer equipped with a
D-sub15 pin terminal or a Mac, use a commercially
sold conversion adapter as necessary.
*
There is no need to use an adapter for computers
with DOS/V compatible Mini D-sub 15P terminal.
●
Do not set the horizontal and vertical scanning
frequencies for PC signals which are above or below
the specified frequency range.

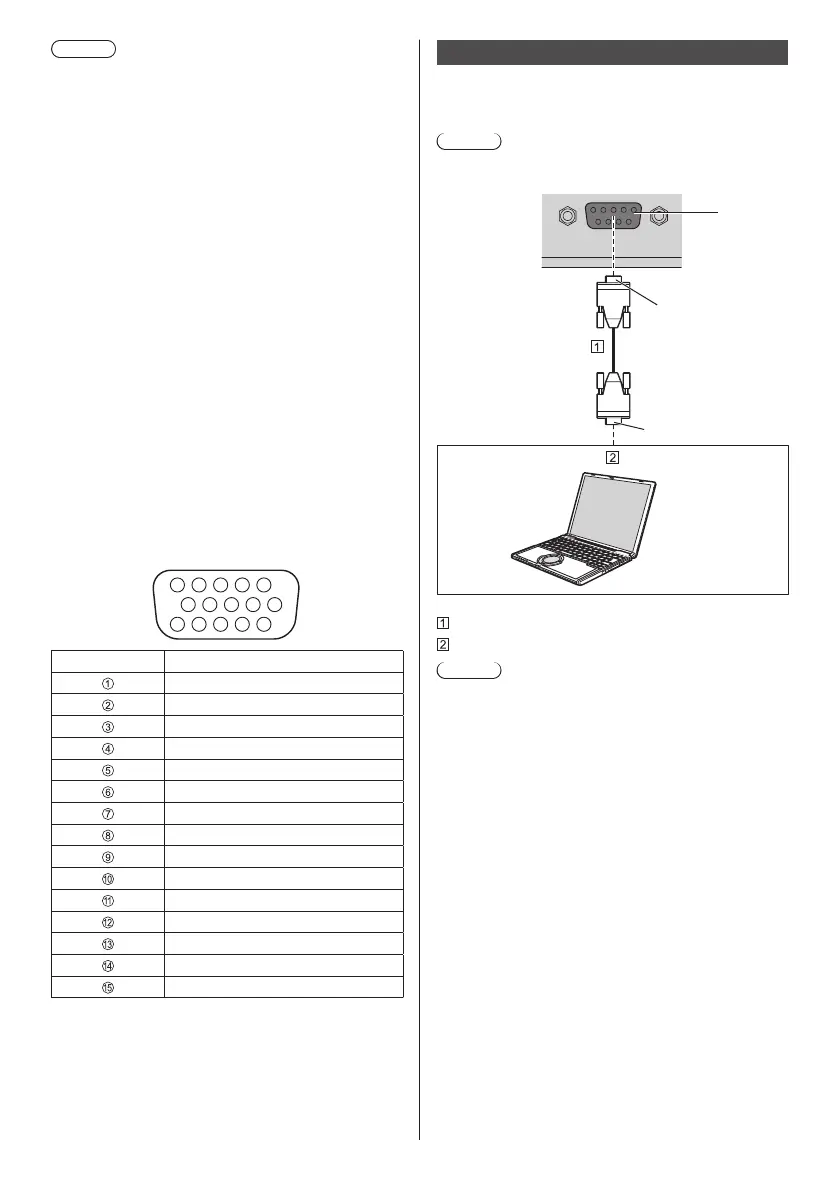

Pin assignments and signal names for PC Input
Terminal (Mini D-sub 15P)
1
678
3
9
45
10
15 14 13 12 11
2
Pin No. Signal Name
R (PR/CR)
G (Y)
B (PB/CB)
NC (not connected)
GND (Ground)
GND (Ground)
GND (Ground)
GND (Ground)
+5 V DC
GND (Ground)
NC (not connected)
SDA
HD
VD
SCL
SERIAL IN terminal connection
The SERIAL terminal conforms to the RS-232C interface
specification, so that the Display can be controlled by a
computer which is connected to this terminal.
Note
●
Additional computer and cables shown are not
supplied with this set.
D-sub 9p
(Female)
(Male)
RS-232C Straight cable (commercially available)
PC
Note
●
Select the RS-232C straight cable for communication
used for connecting SERIAL terminal and computer
according to the computer you are using.
