11
English

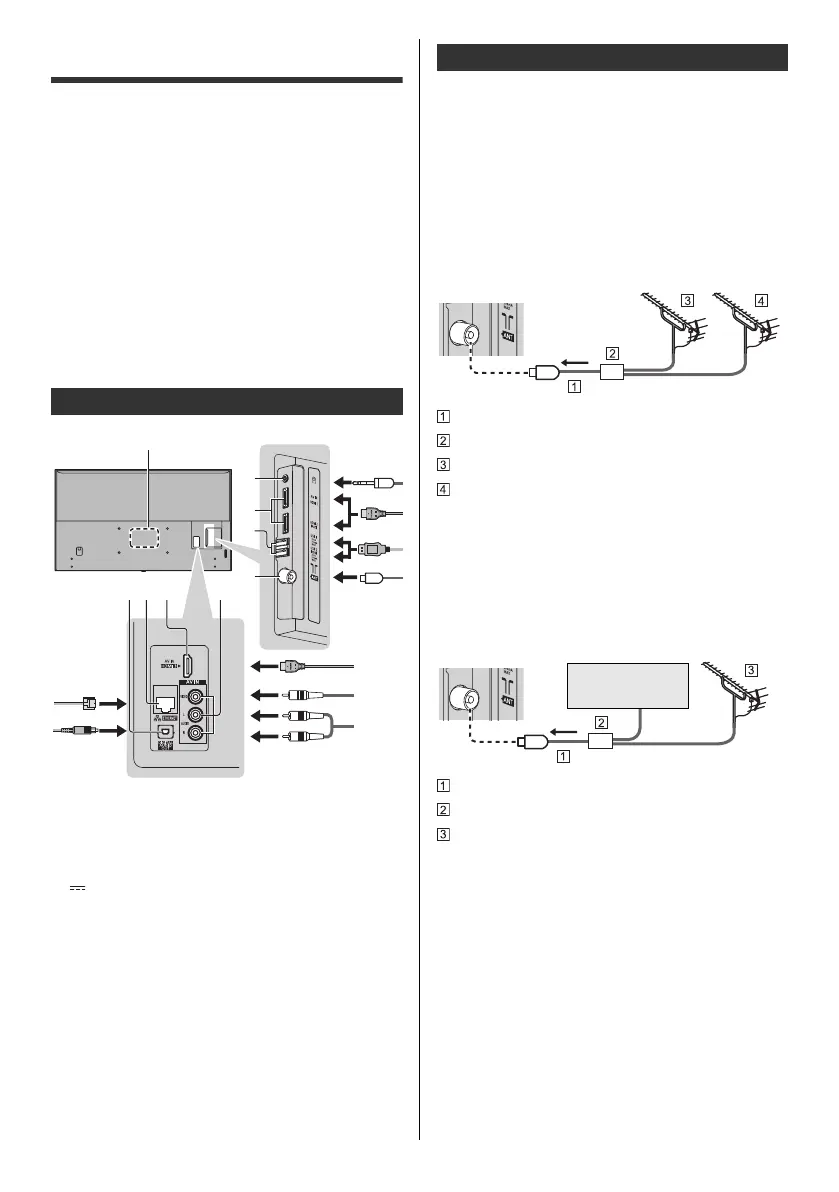

Connections
≥ External equipment and cables shown are not
supplied with this TV.
≥ Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
≥ Check the terminal type and cable plugs are correct
for connection.
≥ Use a fully wired HDMI compliant cable.
≥ Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
≥ Please also read the manual of the equipment being
connected.
1 Model name plate
2 Headphone jack (3.5 mm stereo mini plug)
3 HDMI 1 - 2
4 USB 1 - 2 port
This symbol indicates DC operation.
5 Aerial terminal
6 DIGITAL AUDIO OUT
7 ETHERNET terminal
≥ Use Shielded Twist Pair (STP) LAN cable.
8 HDMI 3
9 AV IN (VIDEO / AUDIO L/R)
∫ AV devices
(DVD Recorder / Blu-ray Recorder, Set top box, etc)
≥ For details, refer to [eHELP] (Search by Purpose >
Watching > Basic > Basic connection).
∫ Aerial
Special notices for receiving digital terrestrial
services
≥ If you receive analogue and digital TV signals through
two separate aerials, use an RF mixer to mix them.
TV
RF cable
RF mixer
Aerial (Analogue TV)
Aerial (Digital TV)
≥ If you receive analogue TV signals through a cable TV
network, an aerial is required to receive digital TV
signals.
In this case, using an RF mixer is not recommended
because the TV signals interfere with each other.
≥ An RF selector is available to switch analogue and
digital TV signal.
TV
RF cable
RF selector
Aerial (Digital TV)
Terminals
1
76 8 9
2
4
5
3
Basic connections
Cable
(Analogue TV)
TH-40_50_58_65JX700GKST_Eng_8A06B00034100.book 11 ページ ２０２１年２月１９日 金曜日 午後４時５３分
