7

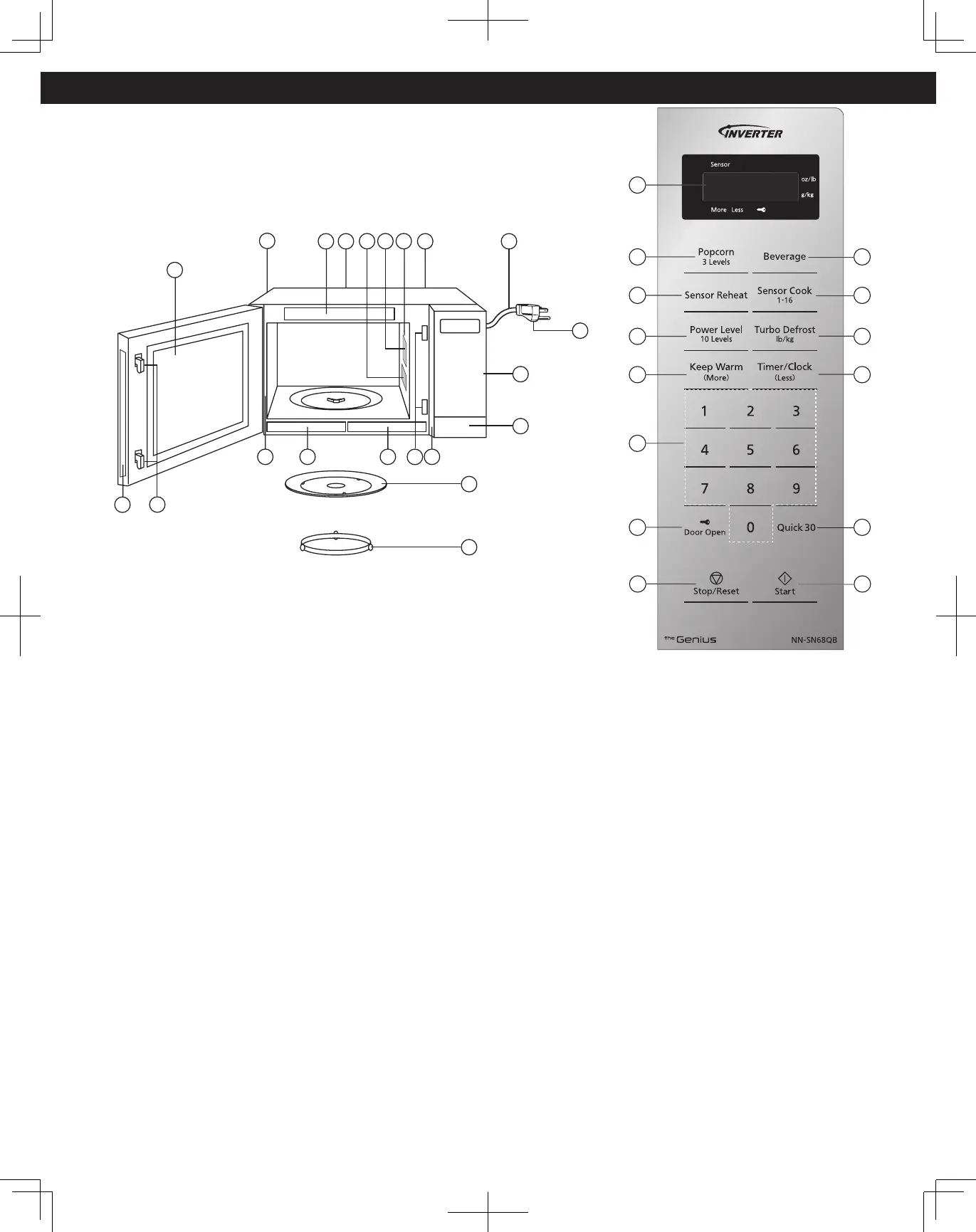

Location of Controls
1 External Air Vent
2 Internal Air Vent
3 Door Safety Lock System
4 Exhaust Air Vent
5 Control Panel
6 Identification Plate
7 Glass Tray
8 Roller Ring
9 Heat/Vapor Barrier Film
(do not remove)
10 Waveguide Cover
(do not remove)
11 Door Release Button
12 Warning Label
13 Menu Label
14 Power Supply Cord
15 Power Supply Plug
16 Warning Label
17 Oven Light
The oven light will be off with
the door open for 1 minute.
18 Door Hinges
To prevent injury when opening
or closing the door, keep fingers
away from the door hinges.
19 DHHS Label
20 Display Window
21 Popcorn Pad (See page 13)
22 Beverage Pad (See page 13)
23 Sensor Reheat Pad (See page 15)
24 Sensor Cook Pad (See page 15)
25 Power level Pad (See page 10)
26 Turbo Defrost Pad (See page 14)
27 Keep Warm (More) Pad
(See page 12)
28 Timer/Clock (Less) Pad
(See page 8, 10)
29 Number Pads
30 Door Open Pad (See page 9)
31 Quick 30 Pad (See page 12)
32 Stop/Reset Pad
Before cooking: one tap clears
all your instructions.
During cooking: one tap
temporarily stops the cooking
process. Another tap cancels
all your instructions, and time
of day or colon appears in the
display window.
33 Start Pad
After cooking program setting,
one tap allows oven to begin
functioning. If door is opened or
Stop/Reset Pad is pressed once
during oven operation, Start
Pad must be pressed again to
restart oven.
Beep Sound:
When a pad is pressed correctly, a
beep will be heard. If a pad is pressed
and no beep is heard, the unit did
not or cannot accept the instruction.
When operating, the oven will beep
twice between programmed stages.
At the end of any complete program,
the oven will beep 5 times.
NOTE:
If no operation after cooking
program setting, 6 minutes later, the
oven will automatically cancel the
cooking program. The display will
return to clock or colon display.
NOTE:
The illustration is for reference only.
20
29
22
26
24
31
33
21
23
25
28
27
30
32
112
613 1618
4
12 14
15
9
3
5
11
7
8
3
1710 2
19
* The control panels of NN-SN67QS/NN-SN68QB/NN-SN68QS/
NN-SN69QS/NN-SN65QS/NN-SN65QW have same key layout
and function, even the different key name.
