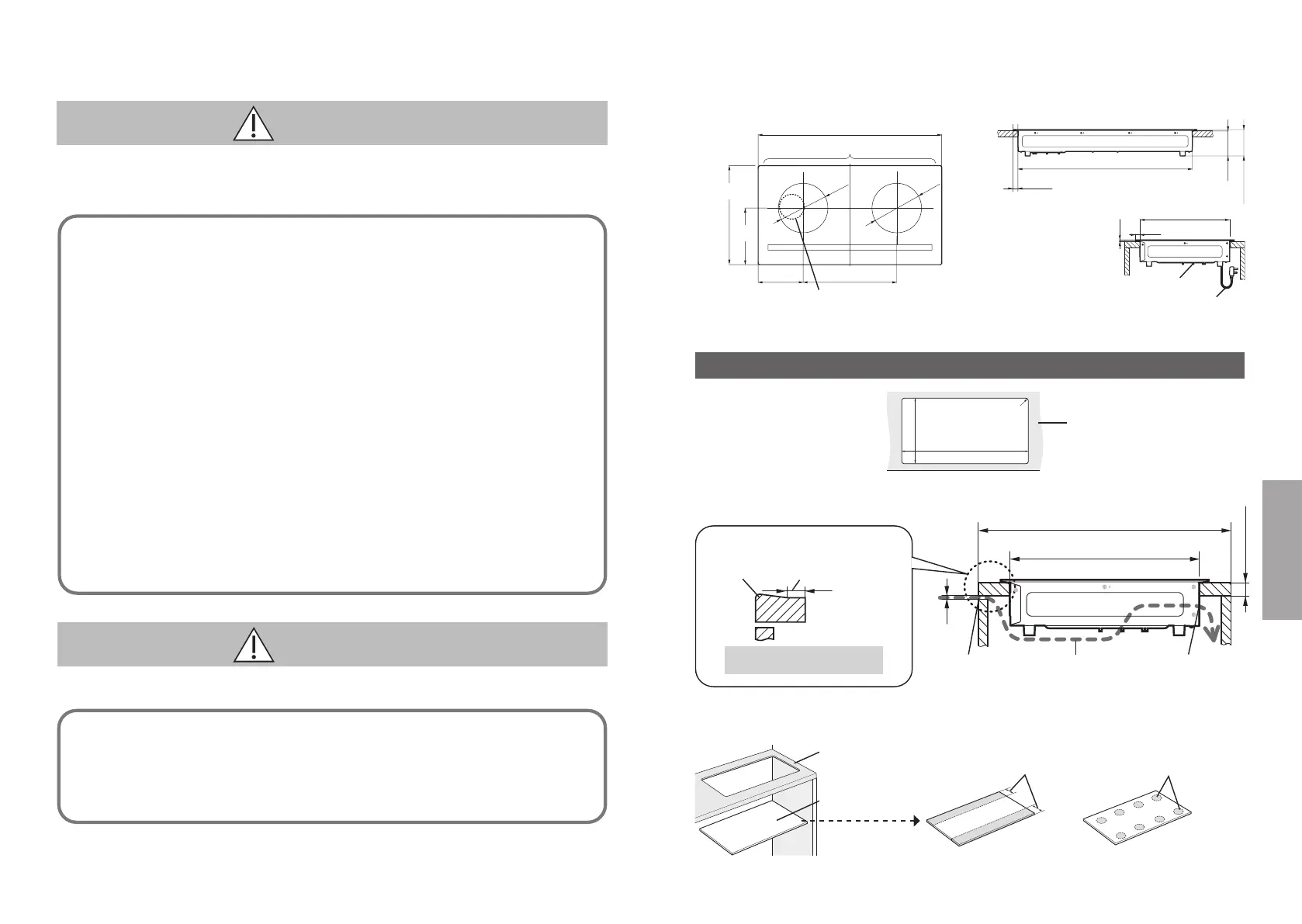

27
Installation
26
■Front view
101
705
18.5
107
Dimensions
(unit: mm)
■Top view
380
Intake vent (on the undersurface)
Ø
190
Ø
190
181
400
229
742
Exhaust vent
■Side view
Approx. 1.5 m
6 18
364
Intake vent
Related Dimensions
■Countertop cutout
Cabinet front
710
+3
−0
R3
+
−
1
368
+3
−0
Template provided
with the appliance
■Cabinet
Countertop with bulge in front
Bulge
More than 25 mm
for at part
Do not install unless the
condition above is met.
*The clearance area of the intake has to be more than 40 cm².
More than 470
Intake
More
than 6*
(12 - 30)
368
+3
−0
(Depth of mounting hole)
Exhaust ventFlow from intake to exhaust
■If a partition board without an intake part has been set
Partition board
Countertop
Cut
(More than 100)
Make holes.
(Approx. Ø 100×8)
or
WARNING
To avoid re, electric leakage, electric shock or
abnormal operation
Safety Precautions
CAUTION
To avoid re, deformation or discolouration
■
Use a heat resistant material for the countertop.
( Heat resistance equal to or exceeding that of “laminated
thermosetting high-pressure decorative sheets”)
■
Do not use a varnished material for the countertop.
■
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or a qualied person in order to
avoid hazards.
■
Electrical work must be performed by a legally certied electrician.
■
Before installation, make sure to turn off the circuit breaker.
■
Install a 230 V / 20 A dedicated single-phase circuit with an earth
leakage circuit breaker for the power supply to avoid abnormal
overheating of the electric wire.
■
This appliance must be properly earthed following the electric laws.
■
The earth line must not be connected to a gas pipe, water pipe,
earth of lightning rod or telephone.
■
The power cord must be correctly connected to ensure the integrity
of the connection.
■
Do not step on the appliance, or drop heavy items on top of it.
■
Do not disassemble, repair or modify the appliance.
(Ex. Disassembling the top plate)
