If you perform lens calibration after attaching the projection lens, the projection lens
moves to the home position after calibration is complete.
Using the position of the projected image at the home position (i.e., the standard projection
position) as a basis, you can use the lens shift adjustment function on the projector to
adjust the position of the projected image within the respective lens shift ranges.

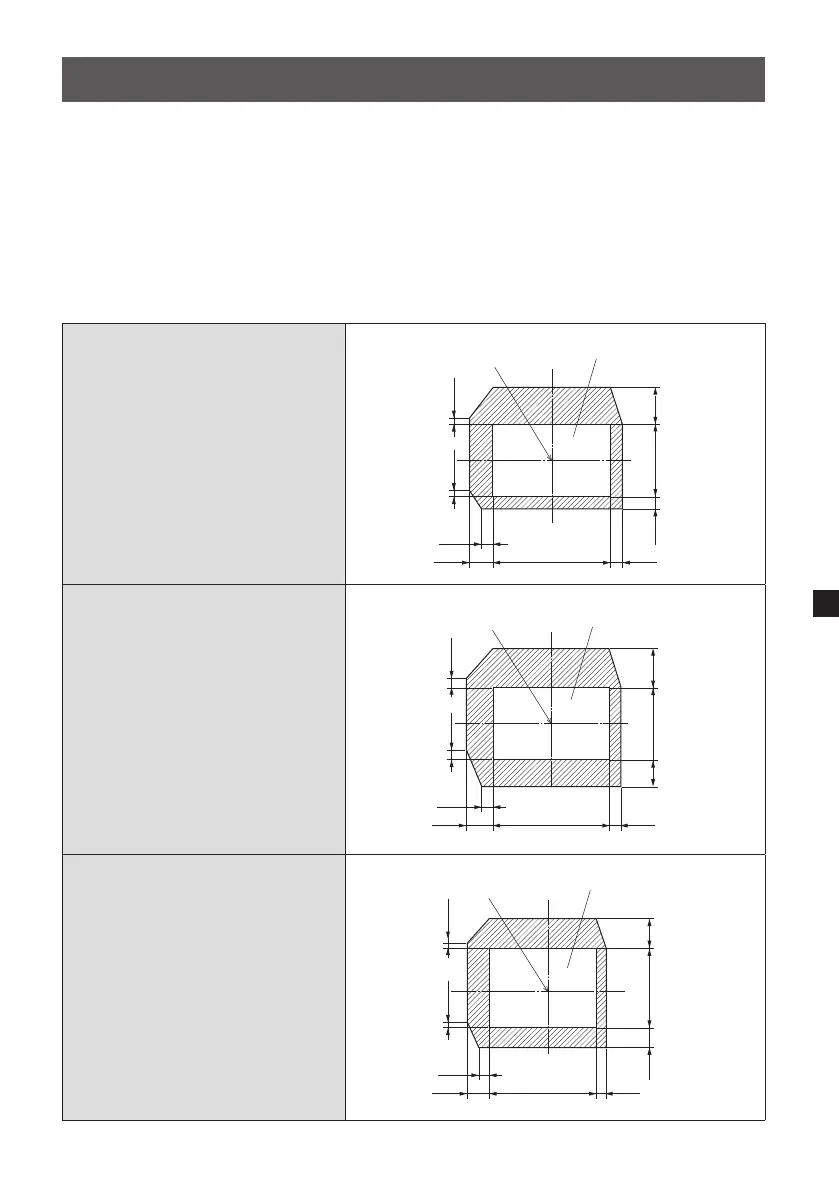

Perform lens shift adjustment within the ranges shown in the following illustrations.
Moving the lens outside of the adjustment ranges may alter the focus. This occurs due
to limitations in lens movement that are intended to protect the optical components.
The following illustrations depict lens shift ranges for oor installations of the projector.
PT-RCQ10 / PT-RCQ80 / PT-RZ120 /
PT-RZ970 / PT-RZ870 / PT-RZ770 /
PT-RZ660
0.2H
0.1H
0.08V0.08V
0.5V0.16V
0.1H
Standard
projection position
Projected image height V
Projected image width H
Origin position of
the lens mounte
PT-RW930 / PT-RW730 / PT-RW620
0.23H
0.1H
0.13V0.13V
0.55V
0.37V
0.1H
Standard
projection position
Projected image height V
Projected image width H
Origin position of
the lens mounte
PT-RX110
0.2H
0.1H
0.06V0.06V
0.38V
0.25V
0.1H
Standard
projection position
Projected image height V
Projected image width H
Origin position of
the lens mounte
Lens shift ranges
