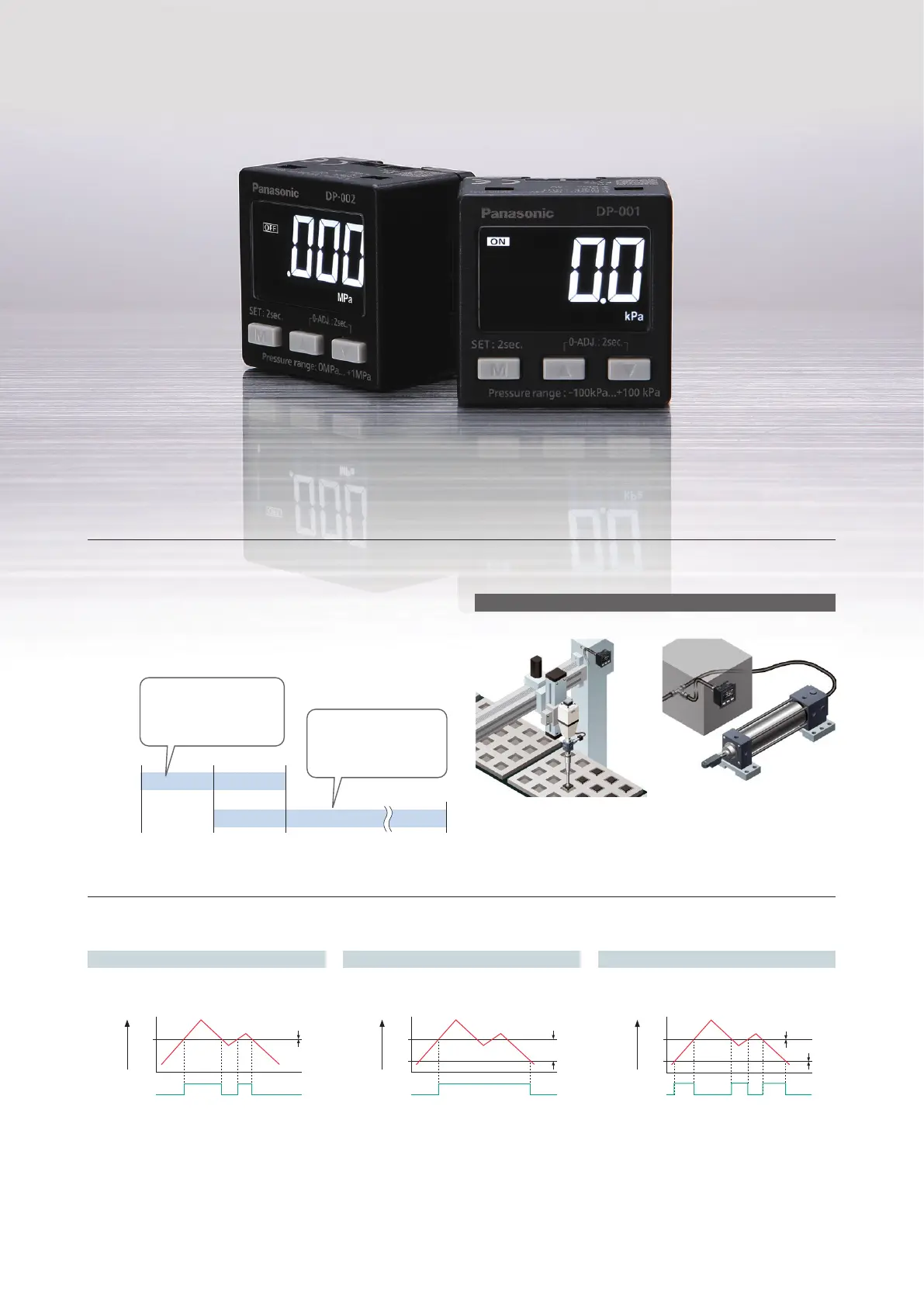

Low Pressure Type and High Pressure Type Available
Three Output Modes
Two types to choose from
according to applications
The low pressure type can be used with positive or negative
pressure, while the high pressure type is suitable for positive
pressure of up to 1 MPa.
Low
pressure type
High
pressure type
DP-001□
DP-002□
−100 kPa 100 kPa
1 MPa
0 kPa
Ideal for applications such
as suction. No
misoperations due to
vacuum breakdown occur.
Ideal for applications such
as checking reference
pressure. Can also be
used for simple suction.
<Low pressure type>
<High pressure type>
Equipped with three output modes for use in a wide range of applications
Applications
High pressure type
Low pressure type
Suction conrmation for
electronic parts
Reference pressure check
(1) EASY mode (2) Hysteresis mode (3) Window comparator mode
This mode is used for comparative output ON /
OFF control.
This mode is used for setting comparative output
hysteresis to the desired level and for carrying
out ON / OFF control.
This mode is used for setting comparative output
ON and OFF at pressures within the setting
range.
H (Hysteresis)
P-1
0
ON
OFF
Comparative
output
Pressure
P-1
P-2
0
P-1
P-2
0
ON
OFF
Comparative
output
H (Hysteresis)
Pressure
H (Hysteresis)
H (Hysteresis)
Comparative
output
ON
OFF
Pressure
H: 4 digits (xed) (10 digits or more when using psi unit) H: 2 digits or more (5 digits or more when using psi unit) H: 4 digits or more (10 digits or more when using psi unit)
4
DP-0
