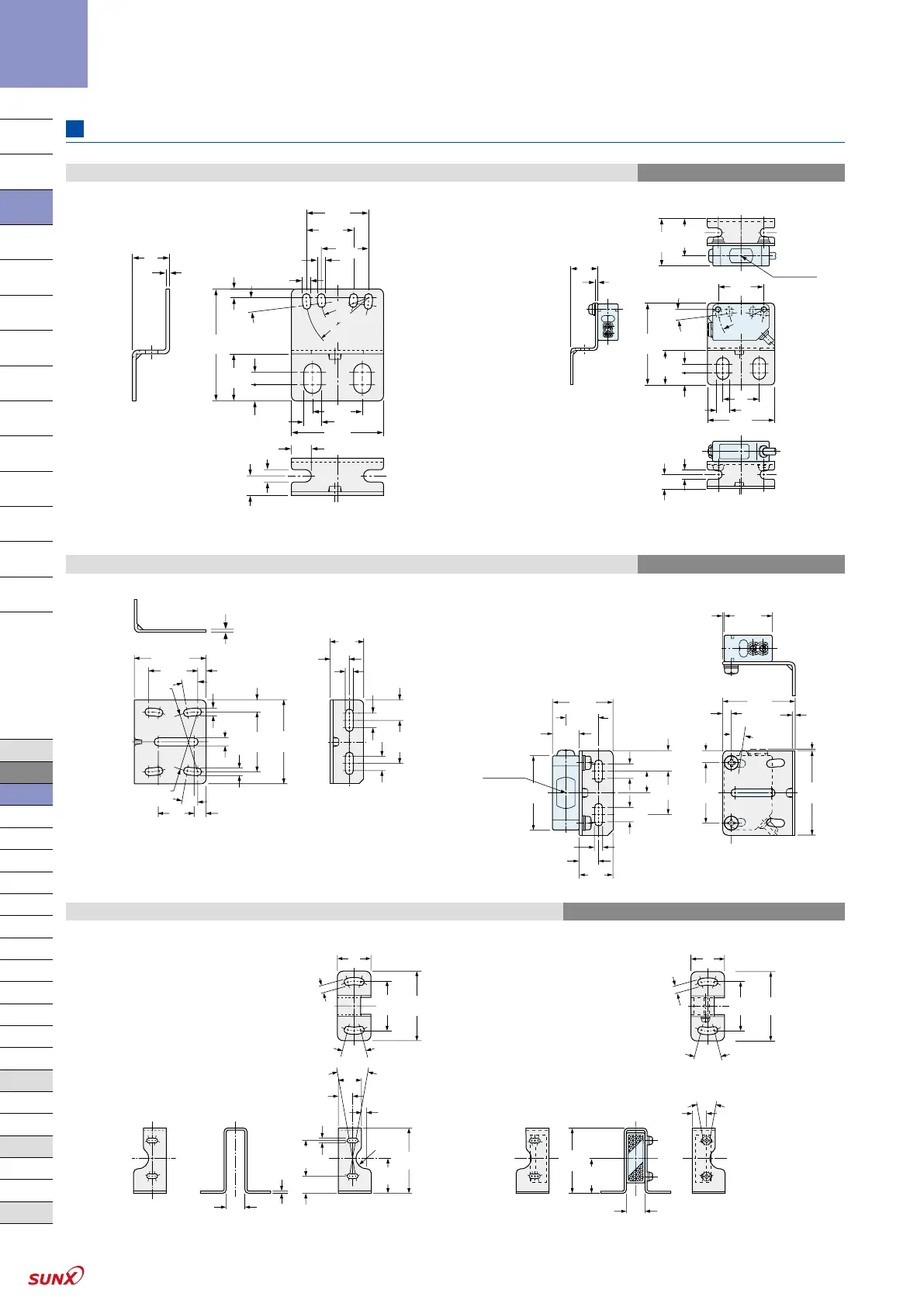

Compact Photoelectric Sensor CX-400 SERIES
MS-CX2-5
Sensor mounting bracket (Optional)
Assembly dimensions
Mounting drawing with the
receiver of CX-41□
3.4
0.134
3.4
0.134
3.5
0.138
6.5 0.256
5 0.197
7°
15
0.591
t 1.5
t 0.059
8
0.315
5
0.197
7.9
0.311
7
0.276
45
1.772
18.9
0.744
37
1.457
20
0.787
19
0.748
25
0.984
19
0.748
R19
R 0.748
R25
R0.984
t 1.5
t 0.059
25.4
1.000
Beam axis
7°
R25
R0.984
7
0.276
20
0.787
6.5 0.256
5 0.197
5
0.197
7.9 0.311
20.6
0.811
26.2
1.031
45
1.772
18.9
0.744
37
1.457
15
0.591
MS-CX-3
Sensor mounting bracket (Optional)
t 1.2
t 0.047
20.5
0.807
3.5
0.138
3.4
0.134
3.4
0.134
10°
R25
R0.984
5
0.197
3.4
0.134
10°
5
0.197
15
0.591
14
0.551
8
0.315
3.4
0.134
6
0.236
8.5
0.335
6
0.236
30 1.181
35
1.378
25
0.984
18
0.709
R25
R0.984
Assembly dimensions
Mounting drawing with the
receiver of CX-41□
13.6
0.535
3.4
0.134
8
0.315
14
0.551
6
0.236
9 0.354
8.5
0.335
18
0.709
Beam axis
0.5
0.020
3.5
0.138
4.8
0.189
t 1.2
t 0.047
0.4
0.016
10
°
25.2
0.992
11.2
0.441
6 0.236
31
1.220
30
1.181
25.4
1.000
35
1.378
( )
20
0.787
MS-RF21-1
Reector mounting bracket for RF-210 (Optional)
Assembly dimensions
12.5 0.492
t 1.2
t 0.047
13
0.512
ø25
ø0.984
16
0.630
10
0.394
3.5
0.138
3.2
0.126
R7.5
R0.295
25
0.984
46
1.811
20°
23
0.906
50
1.969
5.5
0.217
ø36
ø1.417
30°
46
1.811
25
0.984
13
0.512
10
0.394
20°
50
1.969
ø36
ø1.417
30°
23
0.906
5.5
0.217
DIMENSIONS (Unit: mm in)
The CAD data in the dimensions can be downloaded from the SUNX website: http://www.sunx.com
Material: Stainless steel (SUS304)
Two M3 (length 12 mm 0.472 in) screws with washers are attached.
Material: Stainless steel (SUS304)
Two M3 (length 12 mm 0.472 in) screws with washers are attached.
Material: Stainless steel (SUS304)
Two M3 (length 12 mm 0.472 in) screws with washers are attached.
