FS Single Split Packaged
Air Conditioner
More than 50cm needed
(conventional)
4 5
Hyper Wave Inverter
Panasonic inverter circuit technology provides
detailed motor current control. A comfortable room
temperature is maintained with less energy,
vibration, and noise.
The current waveform
closely matches the
motor voltage waveform,
so power consumption is
reduced.
Hyper Wave Inverter
Power is wasted when the
car swings off course.
Compare this to a car rounding a corner.
When the car stays right
on course, there's no
power loss.
The current waveform
deviates from the motor
voltage waveform, so
power is wasted.
Our Conventional Inverter
Power is wasted.
High-Efficiency Compressor
DC Inverter motor is compact in size. Thanks to the powerful neodymium
(rare-metal) used to make the motor. With less magnetic field distortion
from the winding motor, DC Inverter Compressor delivers higher
efficiency performance.

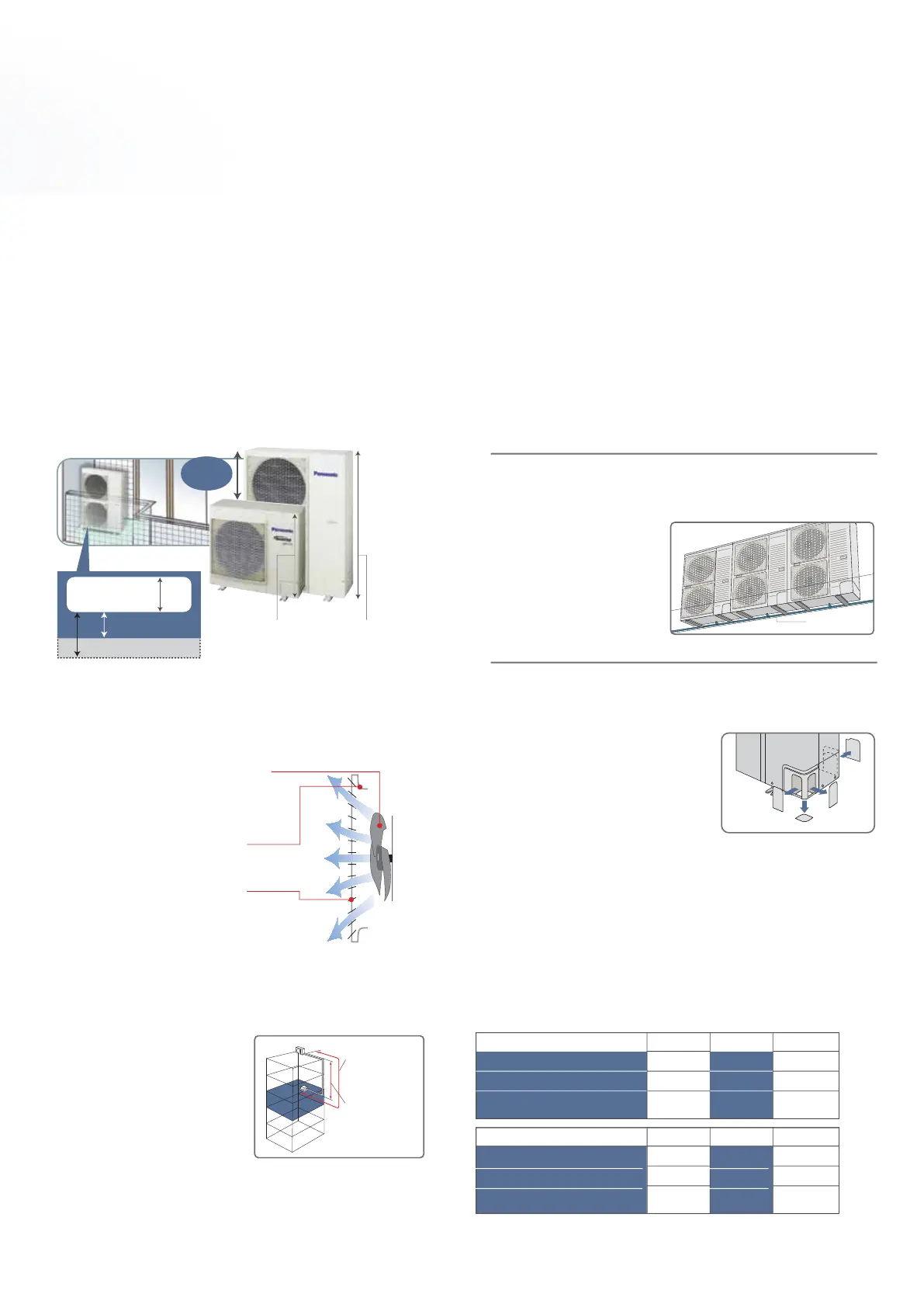

Space-Saving Outdoor Unit
Newly designed outdoor unit’s fan design has made it possible
to reduce the size of the outdoor unit without compromising
on quiet and energy efficient operation. Reduction in outdoor
unit size enables ease of installation in smaller spaces.
Flexibility in piping gives more freedom in installation leading
to reduction in installation cost.
Top view
Only 30 cm needed
32 cm
*for 4HP model
(Air discharge side)
Outdoor unit
YT34
(Inverter)
795mm
J34
(Conventional/
Non-inverter)
1,170mm
375mm
shorter
Side-by-Side Continuous Installation
Even outdoor units with different capacities can be installed
side-by-side in an efficient, orderly layout. To make this
possible, we have positioned the service port in the front and
given all models the same depth.
*For Inverter : CU-YT43KBP5
For non-Inverter : CU-J34DBP8, CU-J43DBP8 &
CU-J50DBP8
The drain outlets can be
gathered into a single drain
pipe even when multiple
outdoor units are installed
to a wall.
# Gas is pre-charged for 30m (Inverter) and 20m (non-Inverter). (Additional gas is required
when pipe length is extended.)
*1 When installing the outdoor unit at a higher position than the indoor unit.
*2 When installing the outdoor unit at a lower position than the indoor unit.
Max. Chargeless Length
2.0-2.5HP
30 m
4.0HP
30 m
5.0 HP
30 m
25 m*
1
20 m*
2
30 m*
1
20 m*
2
30 m*
1
20 m*
2
Max. Height Difference
#
30 m
50 m 50 m
Max. Length
#
Inverter
Max. Chargeless Length
2.5-3.0HP
20 m
4.0HP
20 m
5.0-6.0HP
20 m
30 m*
1
20 m*
2
30 m*
1
20 m*
2
30 m*
1
20 m*
2
Max. Height Difference
#
40 m
40 m
40 m
Max. Length
#
Non-Inverter
Flexible 4-Way Piping
Piping can be routed in any of
four directions.
*For Inverter : CU-YT34KBP5 &
CU-YT43KBP5
For non-Inverter : All models
The newly designed fan blades reduce
the frontal discharge distance.
Improved front grille opening
shape
Improved front grille grid
shape
1
2
3
These three improvements to minimise the air resistance.
New Large Diagonal Air Flow Fan
The Sophisticated Air Path Design – Key to
Compact Size.
Long Piping
ä,Qverter: 50m, non-Inverter: 40m
Piping can be extended up to
30m (Inverter) and 20m
(non-Inverter without additional
gas charging, and up to 50m
(Inverter) and 40m (non-
Inverter) with additional gas
charging. By giving you more
flexibility in positioning the
outdoor unit, this gives you a
wider range of installation
options.
Max.
50m
*
1
(Inverter)
40m
*
2
(non-Inverter)
Pipe
length
Max.
30m
#
Height
difference
*1 (Inverter) For CU-YT34KBP5 & CU-YT43KBP5
*2 (non-Inverter) For all models
Energy-Saving
Hyper Wave Inverter
DC Inverter Compressor
New Large Diagonal Air Flow Fan
1
3
2
1
2
3
Flexible Installation
Centralized Drain Method
Drain Pipe
FS Single Split Packaged
Air Conditioner
More than 50cm needed
(conventional)
4 5
Hyper Wave Inverter
Panasonic inverter circuit technology provides
detailed motor current control. A comfortable room
temperature is maintained with less energy,
vibration, and noise.
The current waveform
closely matches the
motor voltage waveform,
so power consumption is
reduced.
Hyper Wave Inverter
Power is wasted when the
car swings off course.
Compare this to a car rounding a corner.
When the car stays right
on course, there's no
power loss.
The current waveform
deviates from the motor
voltage waveform, so
power is wasted.
Our Conventional Inverter
Power is wasted.
High-Efficiency Compressor
DC Inverter motor is compact in size. Thanks to the powerful neodymium
(rare-metal) used to make the motor. With less magnetic field distortion
from the winding motor, DC Inverter Compressor delivers higher
efficiency performance.
Space-Saving Outdoor Unit
Newly designed outdoor unit’s fan design has made it possible
to reduce the size of the outdoor unit without compromising
on quiet and energy efficient operation. Reduction in outdoor
unit size enables ease of installation in smaller spaces.
Flexibility in piping gives more freedom in installation leading
to reduction in installation cost.
Top view
Only 30 cm needed
32 cm
*for 4HP model
(Air discharge side)
Outdoor unit
YT34
(Inverter)
795mm
J34
(Conventional/
Non-inverter)
1,170mm
375mm
shorter
Side-by-Side Continuous Installation
Even outdoor units with different capacities can be installed
side-by-side in an efficient, orderly layout. To make this
possible, we have positioned the service port in the front and
given all models the same depth.
*For Inverter : CU-YT43KBP5
For non-Inverter : CU-J34DBP8, CU-J43DBP8 &
CU-J50DBP8
The drain outlets can be
gathered into a single drain
pipe even when multiple
outdoor units are installed
to a wall.
# Gas is pre-charged for 30m (Inverter) and 20m (non-Inverter). (Additional gas is required
when pipe length is extended.)
*1 When installing the outdoor unit at a higher position than the indoor unit.
*2 When installing the outdoor unit at a lower position than the indoor unit.
Max. Chargeless Length
2.0-2.5HP
30 m
4.0HP
30 m
5.0 HP
30 m
25 m*
1
20 m*
2
30 m*
1
20 m*
2
30 m*
1
20 m*
2
Max. Height Difference
#
30 m
50 m 50 m
Max. Length
#
Inverter
Max. Chargeless Length
2.5-3.0HP
20 m
4.0HP
20 m
5.0-6.0HP
20 m
30 m*
1
20 m*
2
30 m*
1
20 m*
2
30 m*
1
20 m*
2
Max. Height Difference
#
40 m
40 m
40 m
Max. Length
#
Non-Inverter
Flexible 4-Way Piping
Piping can be routed in any of
four directions.
*For Inverter : CU-YT34KBP5 &
CU-YT43KBP5
For non-Inverter : All models
The newly designed fan blades reduce
the frontal discharge distance.
Improved front grille opening
shape
Improved front grille grid
shape
1
2
3
These three improvements to minimise the air resistance.
New Large Diagonal Air Flow Fan
The Sophisticated Air Path Design – Key to
Compact Size.
Long Piping
ä,Qverter: 50m, non-Inverter: 40m
Piping can be extended up to
30m (Inverter) and 20m
(non-Inverter without additional
gas charging, and up to 50m
(Inverter) and 40m (non-
Inverter) with additional gas
charging. By giving you more
flexibility in positioning the
outdoor unit, this gives you a
wider range of i
nstallation
options.
Max.
50m
*
1
(Inverter)
40m
*
2
(non-Inverter)
Pipe
length
Max.
30m
#
Height
difference
*1 (Inverter) For CU-YT34KBP5 & CU-YT43KBP5
*2 (non-Inverter) For all models
Energy-Saving
Hyper Wave Inverter
DC Inverter Compressor
New Large Diagonal Air Flow Fan
1
3
2
1
2
3
Flexible Installation
Centralized Drain Method
Drain Pipe
