First complete the electrical connections, and then
check them for correctness. (page 36)
The included mounting collar 1 is designed
specifically for this unit. Do not use it to attach
any other model.
6 Power
connector
Mounting holes
5 Mounting bolt

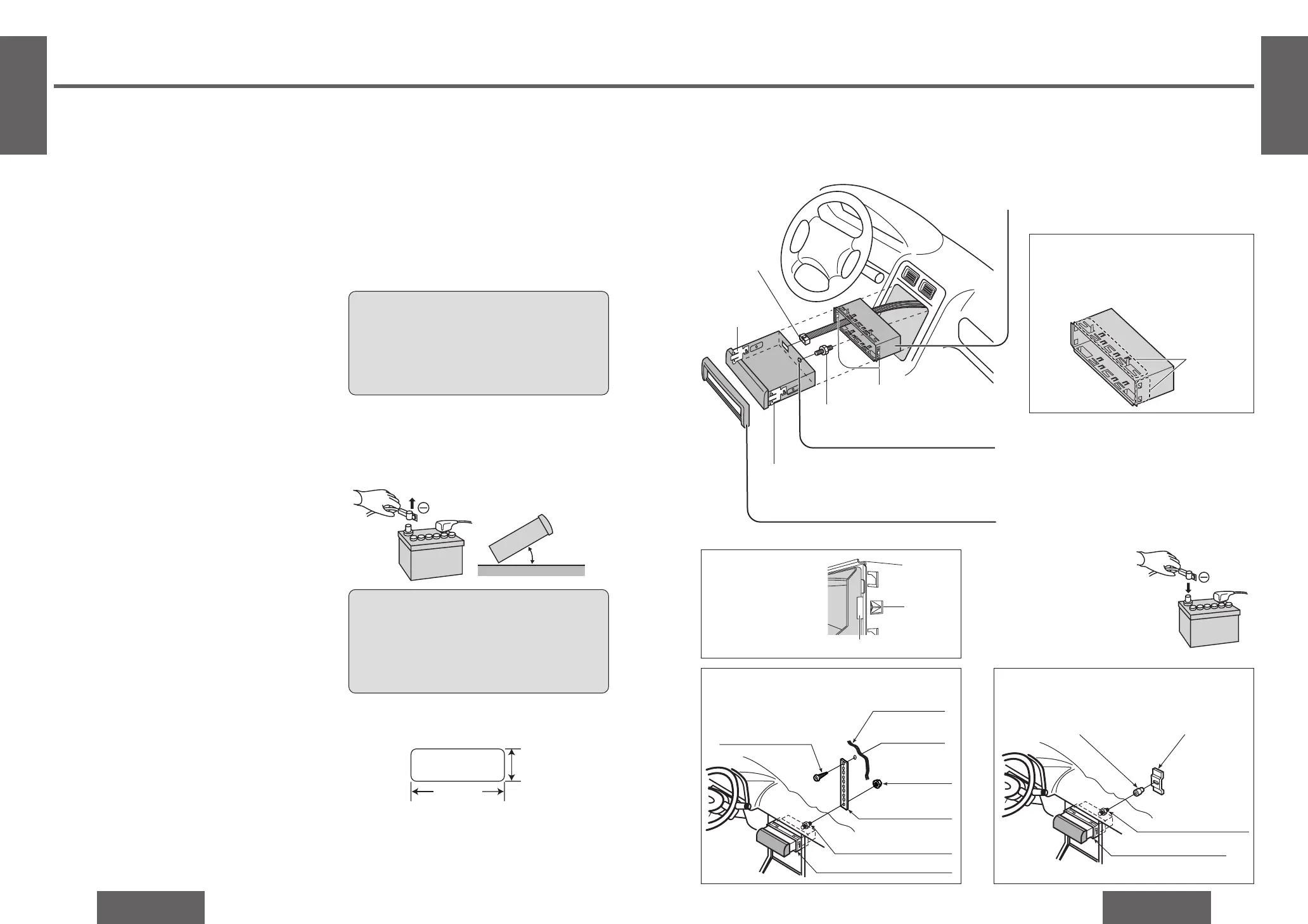

❐ Installation Procedures
Insert mounting collar 1 into the
dashboard, and bend the mounting tabs
out with a screwdriver.
(b) Using the rubber cushion (option)
5 Mounting bolt
1 Mounting collar
Rear support bracket
(provided on the car)
Rubber cushion (option)
Secure the rear of the unit.
After fixing mounting bolt
5
and power con-
nector
6
, fix the rear of the unit to the car
body by either method (a) or (b) shown below.
Insert trim plate 7.
After installation,
reconnect the nega-
tive - battery ter-
minal.
4
The tabs to be bent vary depending on the
car. To securely install the unit, fully bend
a number of the tabs so that there is no
rattling.
Example:
Installation Guide (continued)
Speakers
Connect the speaker wires. See the wiring diagram
(page 36) for the proper hookups. Follow the dia-
gram carefully to avoid damaging the speakers and
the stereo unit.
The speakers used must be able to handle more
than 50 W of audio power. If using an optional
audio amplifier, the speakers should be able to han-
dle the maximum amplifier output power. Speakers
with low input ratings can be damaged. Speaker im-
pedance should measure 4–8 ≠, which is typically
marked on most speakers. Lower or higher imped-
ance speakers will affect output and can cause both
speaker and stereo unit damage.
Motor Antenna
Connect the car motor antenna lead to the dark blue
motor antenna relay control lead.
(Do not confuse the antenna lead with blue/white
stripe lead for a power amplifier.)
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Antenna
Connect the antenna by plugging the antenna lead
into the antenna receptacle.
Equipment
Connect any optional equipment such as an amplifi-
er, according to the instructions furnished with the
equipment. Leave about 30 cm of distance between
the speaker leads/amplifier unit and the antenna/an-
tenna extension cord. Read the operating and instal-
lation instructions of any equipment you will
connect to this unit.
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and pro-
ceed to the final installation.
❐ Final Installation
❐ Final Checks
Lead Connections
Connect all wires, making sure that each connection
is insulated and secure. Bundle all loose wires and
fasten them with tape so they will not fall down
later. Now insert the stereo unit into the mounting
collar.
Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the stereo unit is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest author-
ized professional installer for assistance.
❐ Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the
mounting collar with a screwdriver, be careful
not to injure your hands and fingers.
≥ Disconnect the cable from the negative - battery
terminal (see caution below).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but
not more than 30o.
Caution:
≥ Do not disconnect the battery terminals of a
car with a trip or navigational computer since
all user settings stored in memory will be lost.
Instead take extra care with installing the unit
to prevent shorts.
Less than 30x
Dashboard Installation
Installation Opening
182 mm
53 mm
This unit can be installed in any dashboard having
an opening as shown above. The dashboard should
be 4.75 mmj5.56 mm thick in order to be able to
support the unit.
Mounting spring (§)
Engage the mounting
springs (§) in the
mounting holes of
the mounting collar
1 firmly.
(a) Using the rear support strap 3
4 Tapping screw
2 Hex. nut
3 Rear support
strap
5 Mounting bolt
1 Mounting collar
Fire wall of car
3 mm·
2
3
1
Mounting
spring (§)
Tab
Mounting spring
Mounting
hole
