Electrical Connections (continued)
CQ-DF203W

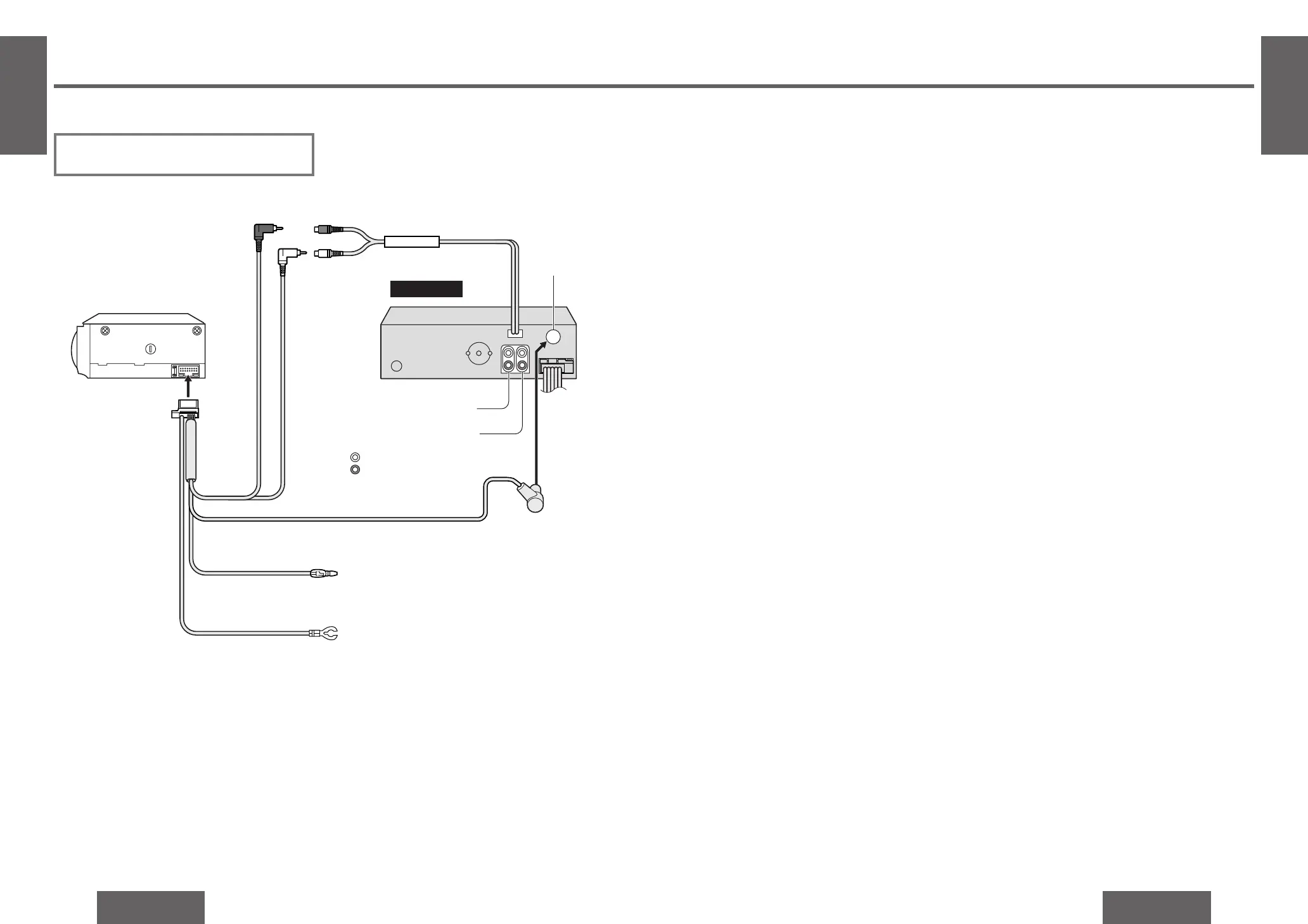

❐ Upgrading the System
Example Combination
≥ CD changer (CX-DP880, option)
CD changer
control connector
CD changer (CX-DP880, option)
R (red)
CD changer input cord
CQ-DF203W
L (white)
CD.C-IN
Preamp output connector (rear)
Preamp output connector (front)
RCA cord (R)
RCA cord (L)
: L (white)
: R (red)
DIN cord
Extension cord
(supplied with CX-DP880)
Ground lead
Battery lead
Specifications
❐ General
Power supply: 12 V DC (11 Vj16 V),
test voltage 14.4 V, neg-
ative ground
Current consumption: Less than 2.2 A
(CD play mode;
0.5 Wa4 channels)
Maximum power output: 50 Wa4 channels at
1 kHz, volume control
maximum
Tone adjustment range:
Bass: n12 dB at 100 Hz
Treble: n12 dB at 10 kHz
Speaker impedance: 4j8 ≠
Preamp output voltage: 2.5 V (CD play mode;
1 kHz, 0 dB)
Preamp output
impedance: 200 ≠
Dimensions (WaHaD): 178a50a155 mm
Weight: 1.4 kg
❐ FM Stereo Radio
Frequency range: 87.50 MHzj108.00 MHz
Usable sensitivity: 11.0 dBf.
(1.25
¨V,
75 ≠)
50 dB quieting sensitivity: 15.2 dBf. (1.6
¨V,
75 ≠)
Frequency response: 30 Hzj15 kHz (n3 dB)
Alternate channel
selectivity: 75 dB
Stereo separation: 35 dB (1 kHz)
Image response ratio: 75 dB
IF response ratio: 100 dB
Signal to noise ratio: 70 dB
❐ AM Radio
Frequency range: 531 kHzj1 602 kHz
Usable sensitivity: 29 dB/¨V
(25
¨V,
S/N 20 dB)
❐ CD Player
Sampling frequency: 8 times oversampling
DA converter: 1 bit/4 DAC system
Pick-up type: Astigma 3-beam
Light source: Semiconductor laser
Wave length: 780 nm
Frequency response: 20 Hzj20 kHz (n1 dB)
Signal to noise ratio: 96 dB
Total harmonic distortion: 0.01 % (1 kHz)
Wow and flutter: Below measurable limits
Channel separation: 75 dB
Note:
≥ Specifications and the design are subject to modi-
fication without notice due to improvements in
technology.
Note:
≥ For wiring, carefully read the operating instruc-
tions for the devices connected.
