7

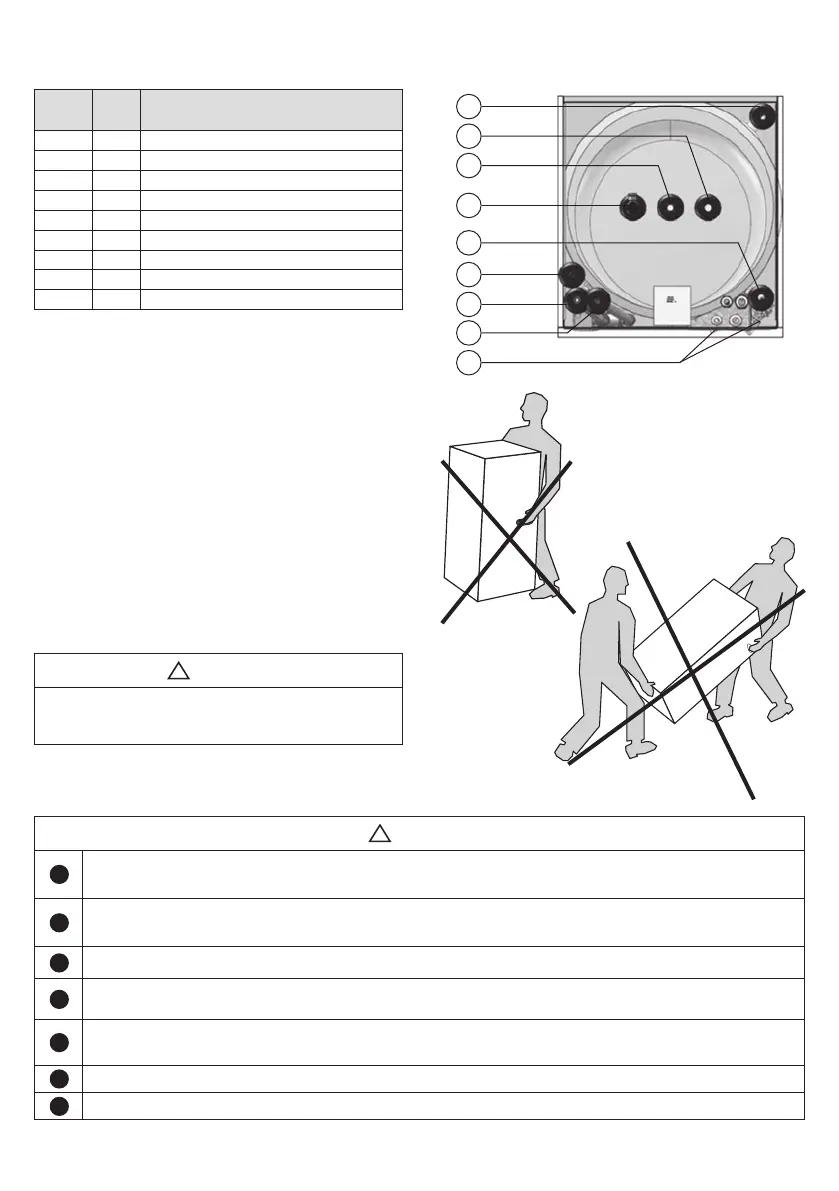

3.3.3 Transport and unpacking

The product should be transported carefully,

with packaging. Also please note:

• The product is very heavy and should not

be lifted by one person alone.

• Do not transport the unit horizontal. This

can cause damage or failure.

• To avoid hand injury, wear gloves when

moving the product and/or while remov-

ing the packaging.

• Be careful not to damage the product

while removing the packaging.

• To avoid damage an installed tank must

be drained before moving.

!

CAUTION

Pipe stubs, valves etc. should not be used to

lift the product as this could cause malfunc-

tions.

3.4 Requirements for installation, location

and positioning

!

CAUTION

!

The product shall be placed in a room with a drain to avoid any damages in case of water

escaping from the product.

!

The product must be placed in an area that is dry, clean, free of vapour, volatile oils,

smoke and gases to avoid any damages to internal parts of the product.

!

The product shall be placed in a dry and permanently frost-free position.

!

The product shall be placed on a floor surface suitable for the total weight of the product

when in operation. See product data plate.

!

Install the tank unit as close to the heat pump as possible. This limits the necessary vol-

ume of coolant (due to pipe length).

!

The product must have a service clearance of 120 cm in front of the cover / 50 cm on top.

!

The product shall be easily accessible in the home for servicing and maintenance.

3.3.2 Pipe connections and valves

Ref. Dim. Description

a ø22 Radiator circuit return

b ø22 Domestic cold water in

c ø22 Domestic hot water out

d 3/4” Temperature and pressure valve (T&P)

e ø22 Radiator circuit flow

f ø22 Heat pump circuit flow

g 1/8” Air vent valve for heating system

h ø22 Heat pump circuit return

i DN15 Drain valves (DHW tank & buffer tank)

a

b

c

d

e

f

g

h

i
