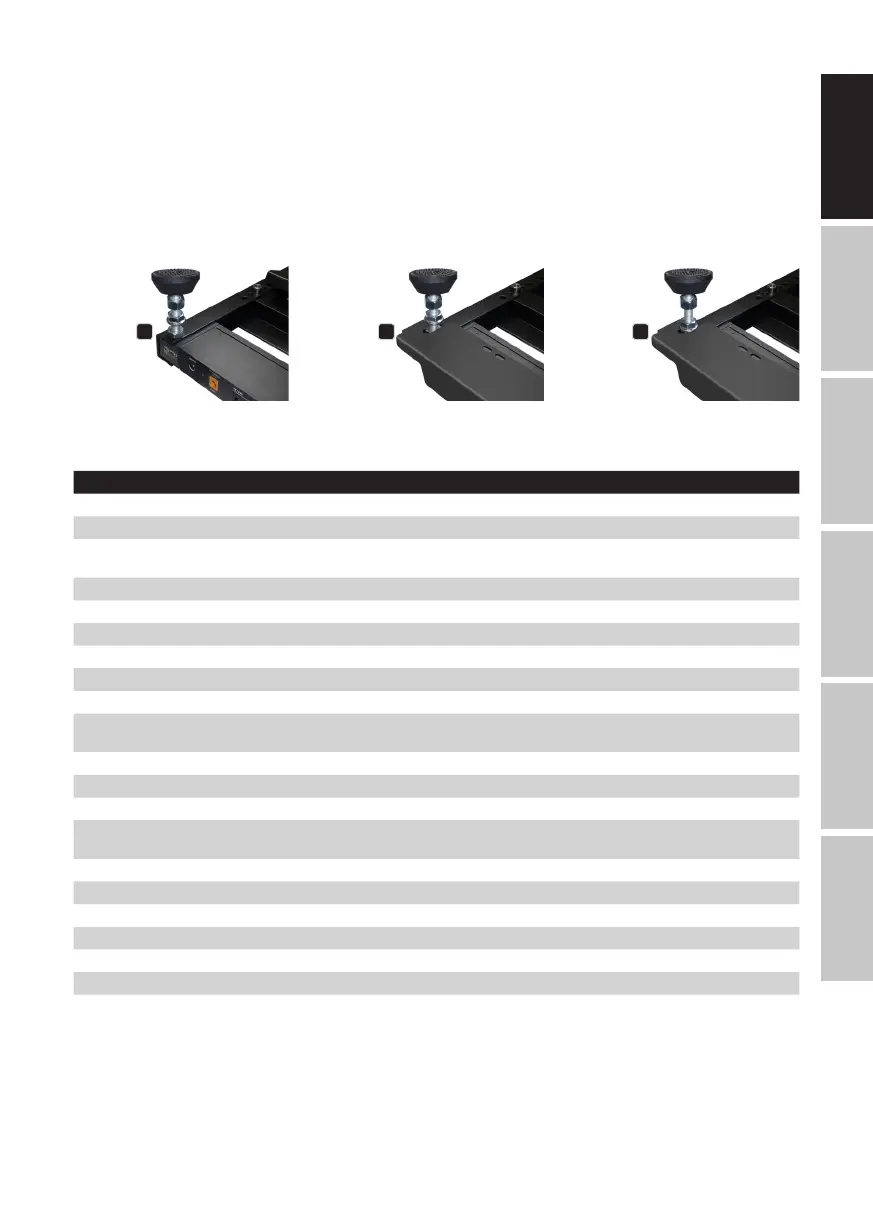

Use the articulated feet to screw the power supply unit to the frame, locking it into place with the standard
M8 nut (D). Now place the L-shaped guard strip on the standard M8 nuts (E) and secure it with the M8
ange nuts (F). For technical reasons, the guard strip may only be positioned on the upper side of the
pedalboard.
Positioning the power supply unit elsewhere rst requires removal of the cross bar on the upper or lower
edge in order to be able to remove the desired cross bar. Once this has been removed from the frame,
place one of the supplied M6 nuts in each of the appropriate recesses on the shorter side of the power
supply unit and simultaneously guide both sides (with the Velcro tape on the upper side) into the frame’s
U-shaped prole. Now screw the power supply unit in with the previously removed M6 socket screw.
Product number: PWTPB40
Product type: Low-voltage power distributor
Type: Power distributor for Palmer PEDALBAY 40
Total outputs: 8 (6x 9 V DC, 2x switchable 9/12/18 V DC) + 1x for forwarding
input voltage
Output connections: 2.1 x 5.5 mm low-voltage sockets
Output voltage: 9 V DC or 9/12/18 V DC, outside: positive
Output current: Maximum 2 A
Total inputs: 1
Input connections: 2.1 x 5.5 mm low-voltage socket
Controls: On/O switch, 2x voltage switches 9/12/18 V
Display elements: Power LED, 8x status two-tone LEDs
(normal operation = green, error = red)
Power supply: External power supply, primary voltage 100 –240 V AC/50–60 Hz
Operating voltage: 12 V DC, 2 A, outside: positive
Protective circuitry: Short circuiting and overloading for each output
Ambient temperature
(in operation):
0° to 40°C
Relative air humidity: <80%, non-condensing
Housing material: Aluminum
Housing nish: Powder coated/anodised
Housing color: Black
Dimensions (W x H x D): 450 x 24 x 50 mm
Weight: 0.65 kg
Accessories included: External power supply with 1.5 m cable, 9x DC cables, 60 cm, with
coaxial power connectors straight to angled, 5x DC cables, 16 cm,
with coaxial power connectors straight to angled, 2x M6 + 2x M8
nuts, 2x M8 ange nuts, Velcro tape, L-shaped guard strip and
4 attachment points for cable ties
TECHNICAL DATA
