INTRODUCTION
The regulated Palmer Universal power supply unit for the Palmer PEDALBAY 40 oers 8 low-voltage outputs
for powering guitar and bass guitar eects devices. Built into the pedalboard, it oers convenient and
organised wiring, and looks tidy. Even during transport, eects devices can remain wired thanks to the
special metal guard strip that protects connected low-voltage wires against damage and unintended
removal. Four attachment points in the metal section are positioned to facilitate permanent and secure
attachment of the wires with cable ties. A suicient number of low-voltage wires with standard 2.1 x 5.5 mm
coaxial power connectors are included.

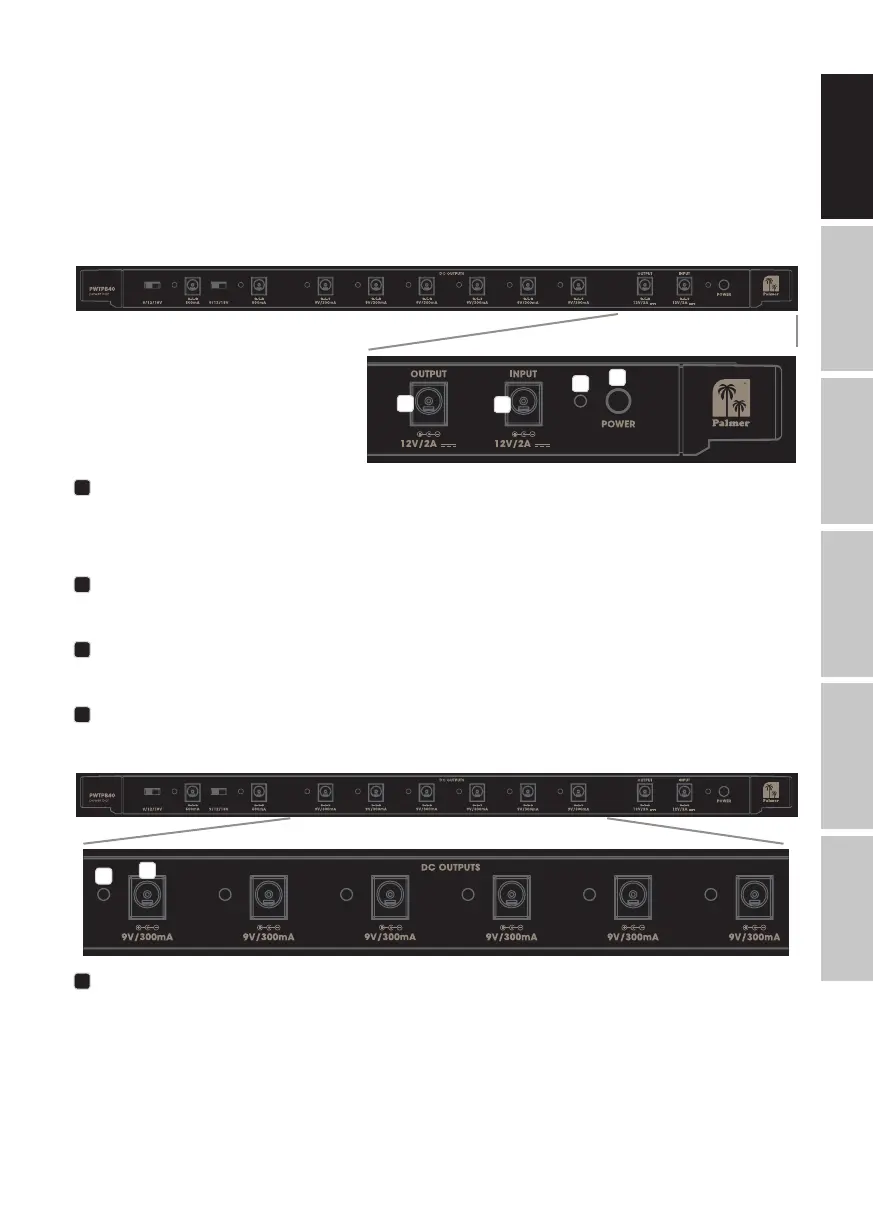

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1
INPUT
Low-voltage connector for supplying power to the power supply unit (12 V DC / 2 A, outside: positive).
Please use only the provided power adapter, to protect the power supply unit from damage and to ensure
suicient and safe power supply for all connected eects devices.
2
OUTPUT
Low-voltage connector for forwarding the power supply connected to the INPUT socket.
3
POWER
Device ON/OFF button.
4
POWER LED
The POWER LED lights up as soon as the device is correctly connected to the power supply and
switched on.
5
DC OUTPUTS
Six low-voltage connectors, each with a 9 V DC and maximum 300 mA current for connecting eects devices
with the corresponding load values (9 V DC / outside: positive / up to 300 mA).
PANTONE Warm Gray 8C
PANTONE Warm Gray 8C
2
1
4
3
PANTONE Warm Gray 8C
PANTONE Warm Gray 8C
6
5
