PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material. Please check the completeness and
integrity of the delivery, and notify your distribution partner immediately aer purchase if the delivery is not complete
or if it is damaged.
The packaging content for the product includes:
1× MONICON M G2 monitor controller
Safety and compliance information (user manual as a download via QR code)

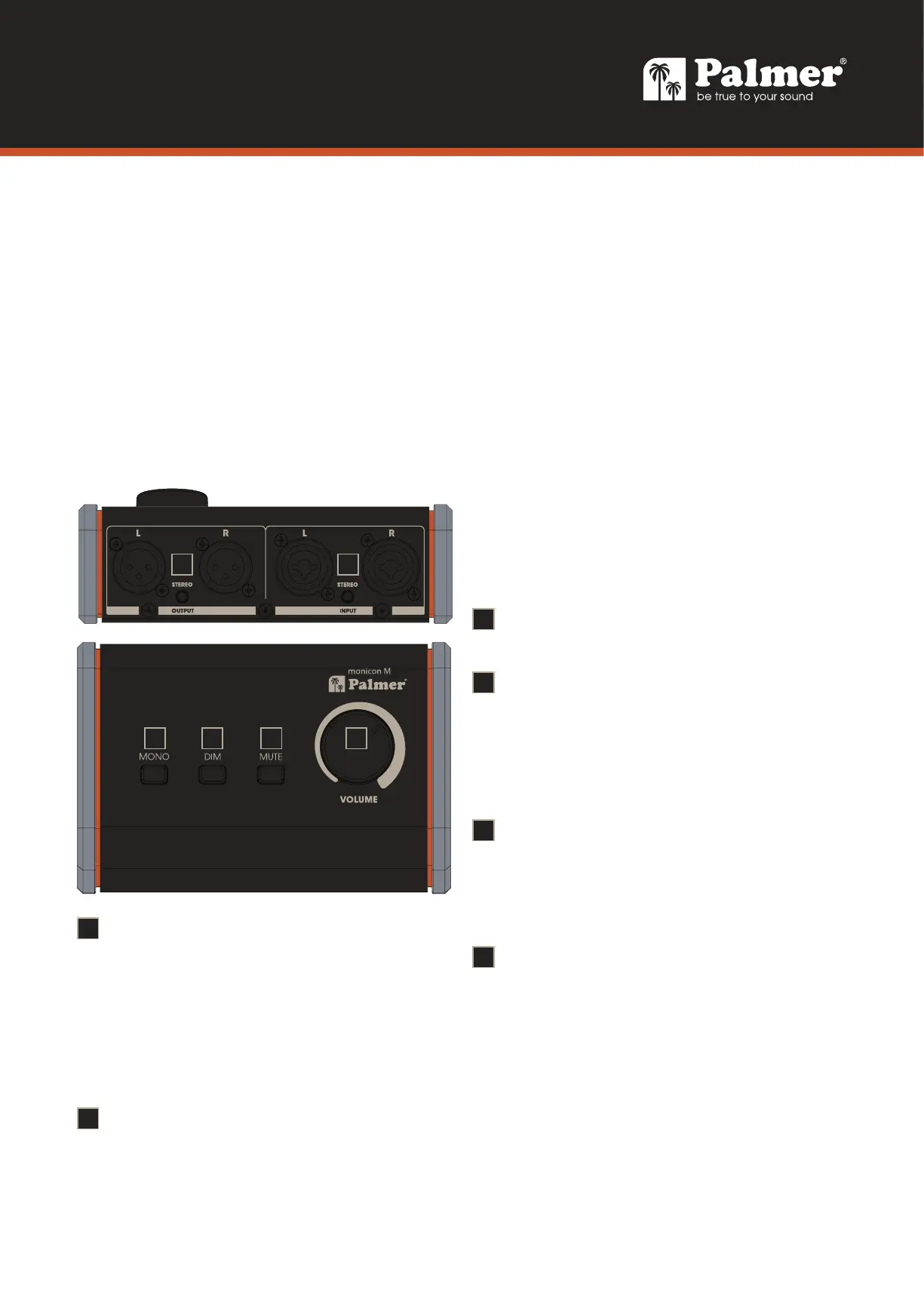

CONNECTIONS AND OPERATING ELEMENTS
4 5 6 3
12
1
INPUT L/R
Stereo input with two balanced XLR / 6.35mm TRS
jack combo sockets and one unbalanced 3.5mm
stereo mini jack socket. Do not use the inputs at
the same time. Use a high-quality stereo cable to
connect an audio interface, studio mixer, or similar
to the stereo input. Ensure the correct channel assi
-
gnment (OUTPUT L
INPUT L, OUTPUT R
INPUT R).
2
OUTPUT L/R
Stereo output with two balanced XLRm sockets
and one 3.5mm stereo mini jack socket. Do not
use the
outputs at the same time.
Use a high- quality stereo cable to connect the
stereo output to active studio monitors or a studio
power amplifier. Ensure the correct channel
assignment (OUTPUT L INPUT L, OUTPUT R INPUT R).
3
VOLUME
Volume control for adjusting the listening volume.
4
MONO
This function can be used to acoustically check
the mono compatibility of a stereo signal, for
example.
Switch not pressed: Stereo signal not summed.
Switch pressed: Stereo signal is summed to mono.
5
DIM
This function can be used to reduce the level of
the output signal by approx. 12dB.
Switch not pressed: No level reduction.
Switch pressed: Level reduction by approx. 12dB.
6
MUTE
This function can be used to mute the controller’s
output.
Switch not pressed: Output not muted.
Switch pressed: Output muted.
