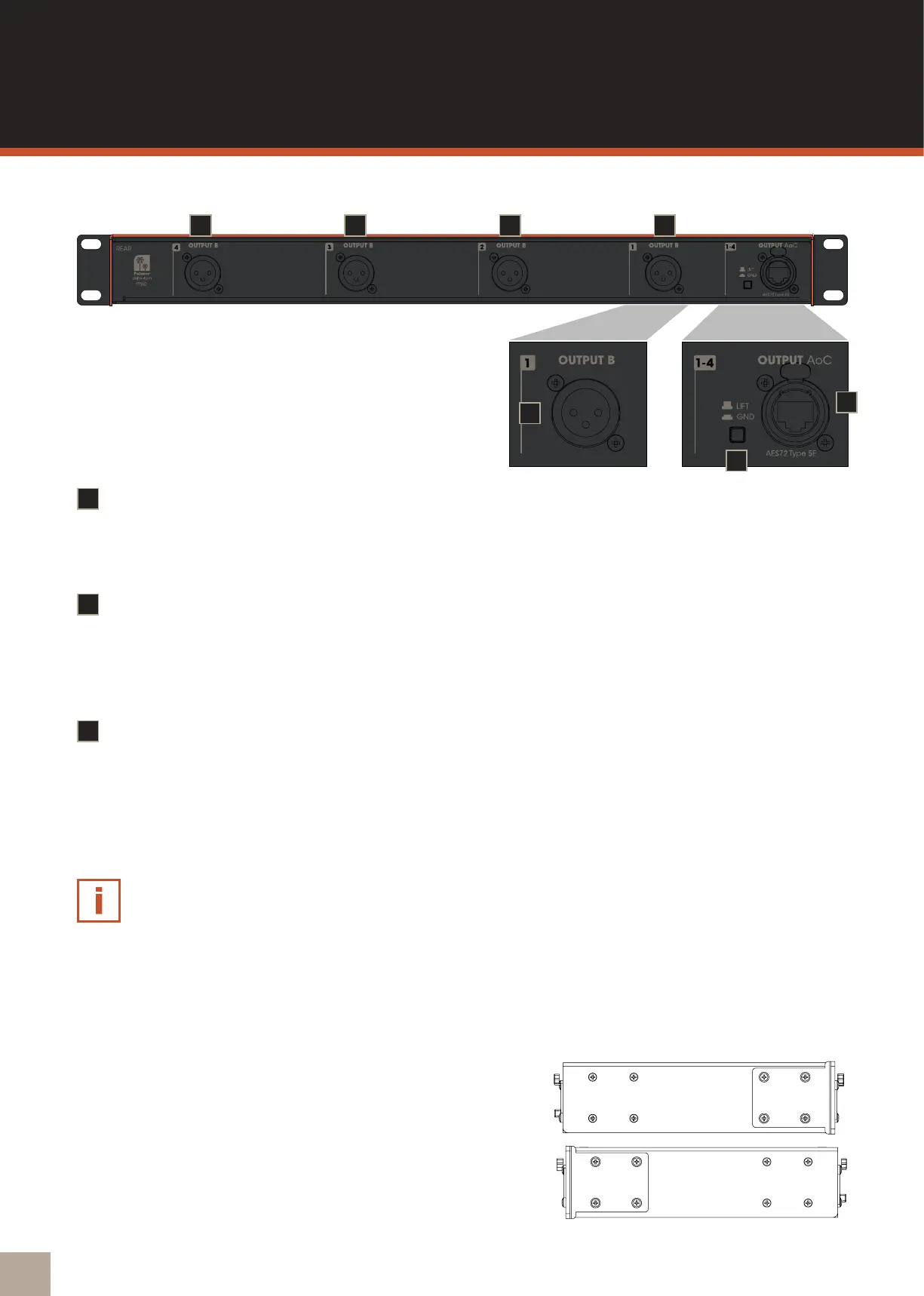

OUTPUT B 1 TO 4
Balanced line outputs with male 3-pin XLR sockets. Output A and Output B are each decoupled from the
line input using high-quality isolating transformers. Use balanced audio cables (e.g. microphone cables) to
connect the line splitter to a balanced input of an amplifier or similar device.
6
OUTPUT AOC 1 TO 4
Balanced line outputs 1 to 4 with lockable etherCON socket (AES72 Type 5E Standard). Separate and
analogue transmission of channels 1 to 4 via a network cable with four pairs of wires plus shielding to
a compatible device (cable category Cat5e or better). The outputs OUTPUT AoC
1 to 4 are connected in parallel to the XLR outputs OUTPUT 1 to 4.
7
LIFT / GND 1 OUTPUT AOC 1 TO 4
Switch for disconnecting the ground connection between the inputs and all rear outputs (ground li is per-
manent for the front outputs OUTPUT A 1 to 4). When not pressed in, the ground connection is disconnected;
the connection is established when the switch is pressed in. The ability to prevent a humming loop using the
ground li switch depends on the grounding of the connected devices. It is therefore possible that either
switch position eectively reduces or eliminates humming.
PLEASE NOTE:
Only use high-quality cables.
The cables should be no longer than necessary for the respective application.
Avoid the use of adapters.
If multiple line outputs are used simultaneously on a single channel, the signal level may be slightly
reduced.
RACK BRACKETS
The rack brackets are fitted at the front on delivery, but
can be fitted at the rear if required. Use only
the original screws for installation.
