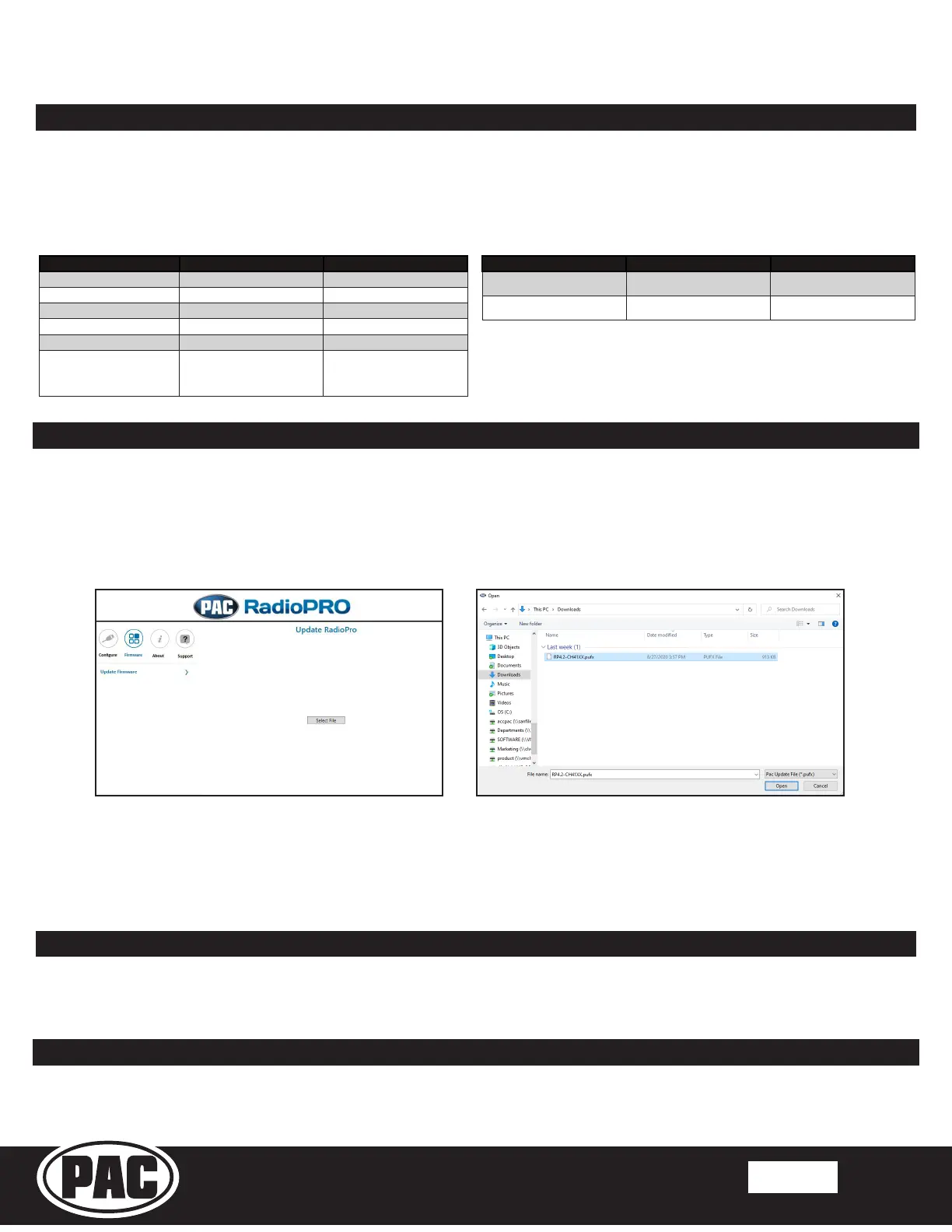

Firmware Updates (RadioPRO and PL1 Interface Modules)

TheRadioPROPCappwillallowyoutoupdatetheinterfacemoduleswithnewrmwareasitbecomesavailable.Please visit

www.PAC-audio.com/rmwaretodownloadavailableupdates.

To update an interface module, open the RadioPRO PC app, connect the interface to your PC via a micro USB cable, and select

”Firmware” and then “Update Firmware”.

Product Updates (Firmware)

Reset / Restoring Interface Factory Settings

You can restore the RadioPRO interface module to factory default settings by pressing and holding the programming button

on the side of the module until the status LED starts blinking red. Once the LED starts blinking red, release the button. You

must release the button while the LED is blinking red in order to perform the reset. This reset will restore all settings to factory

defaults.

Email: support@StingerSolutions.com

Phone: 727-592-5991

Technical Support

Now,select“SelectFile”.Finally,browsetotheplacewhereyousavedthele,andselectit.Thiswillbegintheupdating

process.Oncenished,disconnecttheinterfacefromthePC.Repeatforeachmodule:CH4A-SRKandPL1.

Troubleshooting

1. Vehicle Info icon not showing on main menu - After updating the Radio System Firmware, perform a master reset on the

radiobytapping“MasterReset”inthe“InstallerSettings”;then,updatethePACApplicationAPKrmwareinthatorder.If

theVehicleInfoiconstilldoesnotshow,turno󰀨thevehicle,openthedriverdoor,andletitsleepforabout5minutes,then

restart the vehicle and check for the Vehicle Info icon again.

LED Pattern State Action

LED 2 solid red Vehicle RAP / ACC Output Is On N / A

LED2ashinggreen SWC Activity N / A

LED2ashingred Module Resetting / Initializing N / A

LED 1 solid green Module Powered and Operating N / A

LED1ashingamber USB Connected N / A

O󰀨 No Activity

Verify key is in ignition position.

Verify that there is 12v on the

yellow wire and ground on the

black wire.

CH4A-SRK Interface Module LED Diagnostics

Firmware Updates (Stinger Radio and PAC Application APK)

ToupdatetheStingerradiormwareandPACApplicationAPKrmware,refertotheInstallerSetupGuideforanin-depth

walk-through on how to perform these updates on your Stinger radio unit.

LED Pattern State Action

LEDickeringgreenorred

Data Communication / Normal

Operation

N / A

O󰀨 No Activity

Verify 10pin harness connections

and key position

PL1 Adapter Module LED Diagnostics
