Panel Layout and Device Features
36

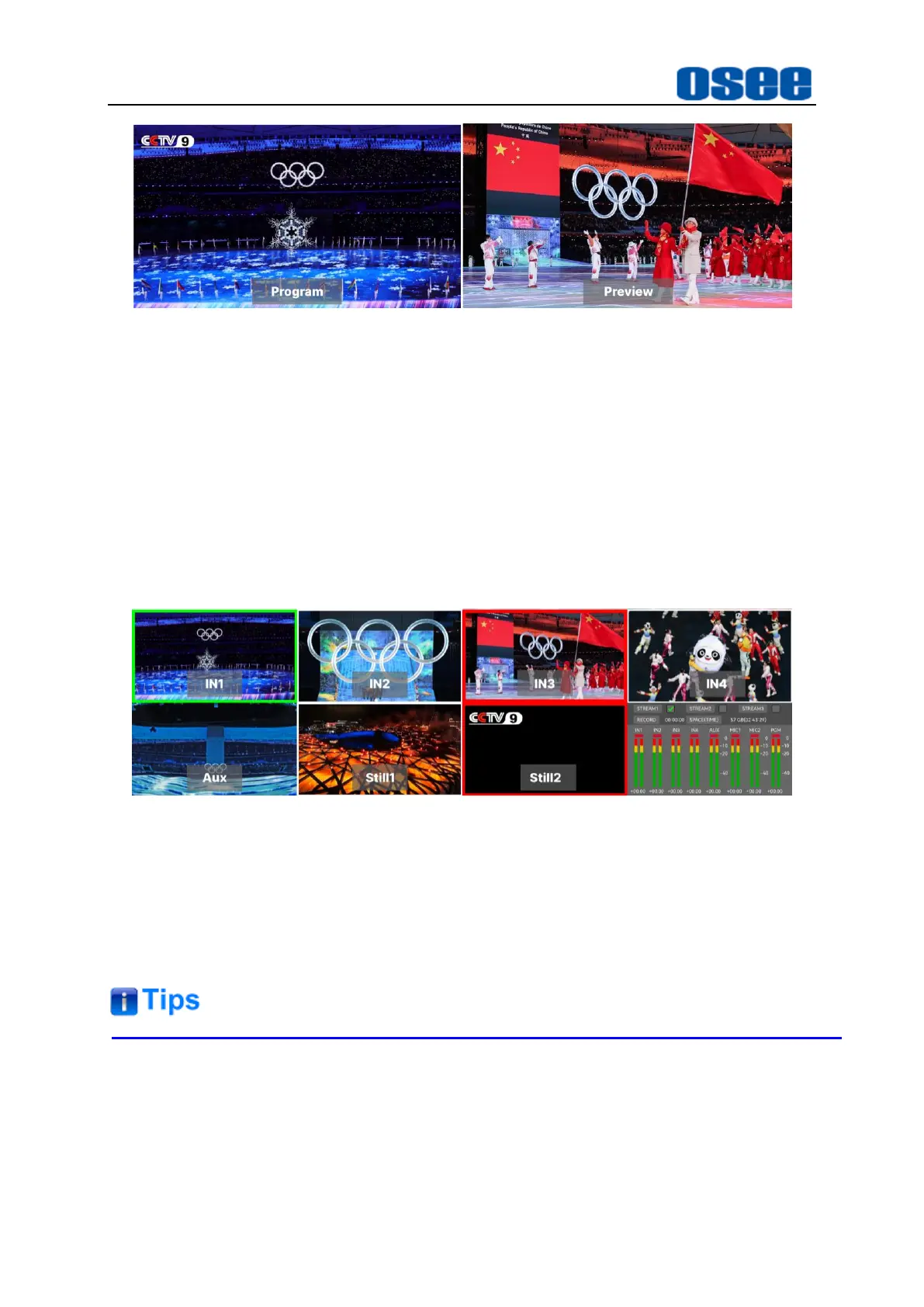

Figure 4.1-22 Program Output and Preview Output Views
◼
Signal Source and Audio Meter
In Row2, the four windows are the input views which display all the sources
connected to the HDMI/SDI inputs, they are arranged from left to right, including
HDMI1, HDMI2, HDMI3, HDMI4, SDI1, SDI2, SDI3 and SDI4.
In Row3, the former three windows are AUX, Still1 and Still2 respectively. You
can specify these three sources by menu settings. The audio meter view is
displayed at the right bottom of the multiview, plus streaming status, recording
time and free space in SD card.
Figure 4.1-23 Signal Sources and Audio Meter Views
◼
Multiview Tally
The multiview includes a tally border feature. Any one of the sources in the
multiview are used in a layer on the program output (PGM) or on air will be
highlighted in red, and on the preview output (PVW) will be highlighted in green.
Complementary for Multiview:
Swap PGM and PVW position: swap the layout of PGM and PVW
windows by setting
Setting
→
mv layout
→
PGM/PVW swap
→
PVW|PGM/PGM|PVW
.
