- Rotate the switch-off delay adjustment to minimum and the ambient
light level adjustment to (☼).
- Check coverage by moving within the detection field limits.
After installation and detection field adjustments, set the ambient light
level and switch-off delay as required.

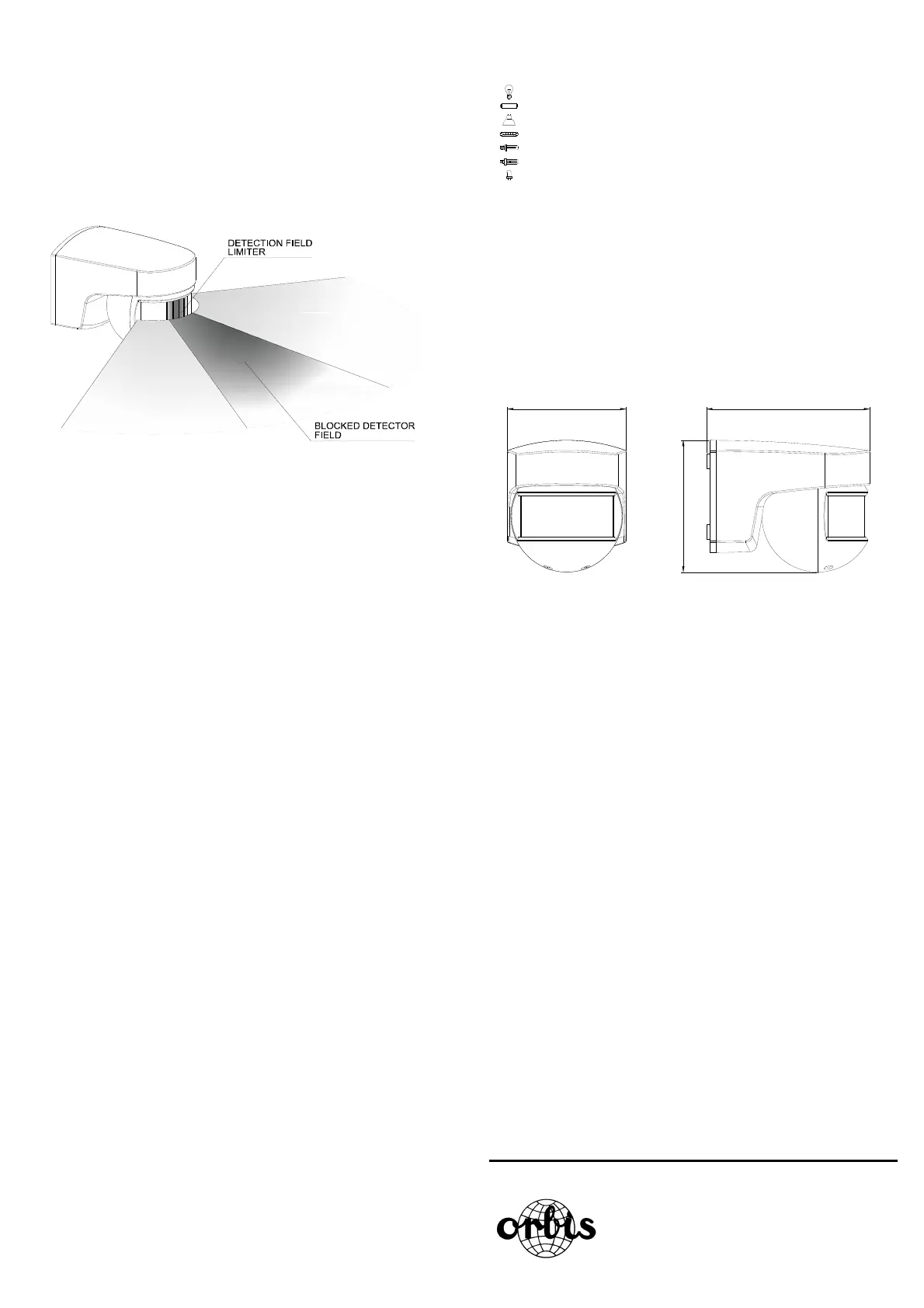

The ISIMAT is supplied with detection area limiters. Each limiter is divided
into four sectors that can be cut according to needs. A sector is excluded
by covering the corresponding part of the lens with limiter adapted to the
actual requirements.
ADJUSTING AMBIENT LIGHT LEVEL
The ISIMAT can be adjusted so that it only operates when ambient light
level conditions are below the selected level. By rotating the ambient light
level control to position (☼), it will react under any lighting conditions.
Setting it to position () will mean it only reacts under very low ambient
light level conditions.
To check the luminosity adjustment, it is necessary to wait until the lights
are off.
For the changes made to take effect in the potentiometers in the
adjustment of the equipment, it is necessary to get out from the
detection area and wait for the installation to be turned off.
ADJUSTING THE SWITCH-OFF DELAY
By rotating the control (), the switch-off delay is as follows:
- Minimum switch-off delay time: 3 seconds
- Maximum switch-off delay time: 30 minutes.
This time is reset for each detection operation.
Detection sensitivity may be reduced if the temperature of the object
to be detected is close to the ambient temperature
When the ISIMAT delay time ends, there is a two-second period of
inactivity during which it does not detect.
OPERATING MODE
- The unit enters normal operation thirty seconds after being switched on.
TECHNICAL SPECIFICATIONS
Power supply 230 V 50 Hz.
Breaking power
μ 10 A 230 V~ cos =1
Maximum recommended loads
Incandescent lamps 2000 W
Fluorescent tubes 1200 VA
Low voltage halogen (12 Vac) 1200 VA
Halogen (230 Vac) 2000 W
Low consumption lamps (CFL) 1200 VA
Low consumption lamps (Downlights) 1200 VA
Led lamps 400 VA
Power consumption 6 VA (1 W approx.)
Ambient lighting level range 5-30-2000 Lux.
Timer range from 3 s to 30 min. approx.
Detection angle 140º
Detection field Front: 12 metres to 20 ºC.
Lateral: 8 metres to 20 ºC.
Operating temperature -20 ºC to +40 ºC
Degree Protection IP 55 iaw EN 60529
Protection class Class II iaw EN 60669
under correct installation
conditions
DIMENSIONS
A016.13.54551
ORBIS TECNOLOGIA ELECTRICA, S.A.
Lérida, 61 E-28020 MADRID
Telephone: +34 91 5672277; Fax: +34 91 5714006
E-mail: info@ orbis.es
http://www.orbis.es
100
72
80
