PWO 0845 – PWO 0850
10
Keep away from curtain, clothing or other something
may affect the fan’s working.
Turn off all switches and pull out power supply plug
when you go out for long time.
Never use the fan before finishing assembly to avoid any
hurts.
Disconnect plug when removing guards for cleaning.

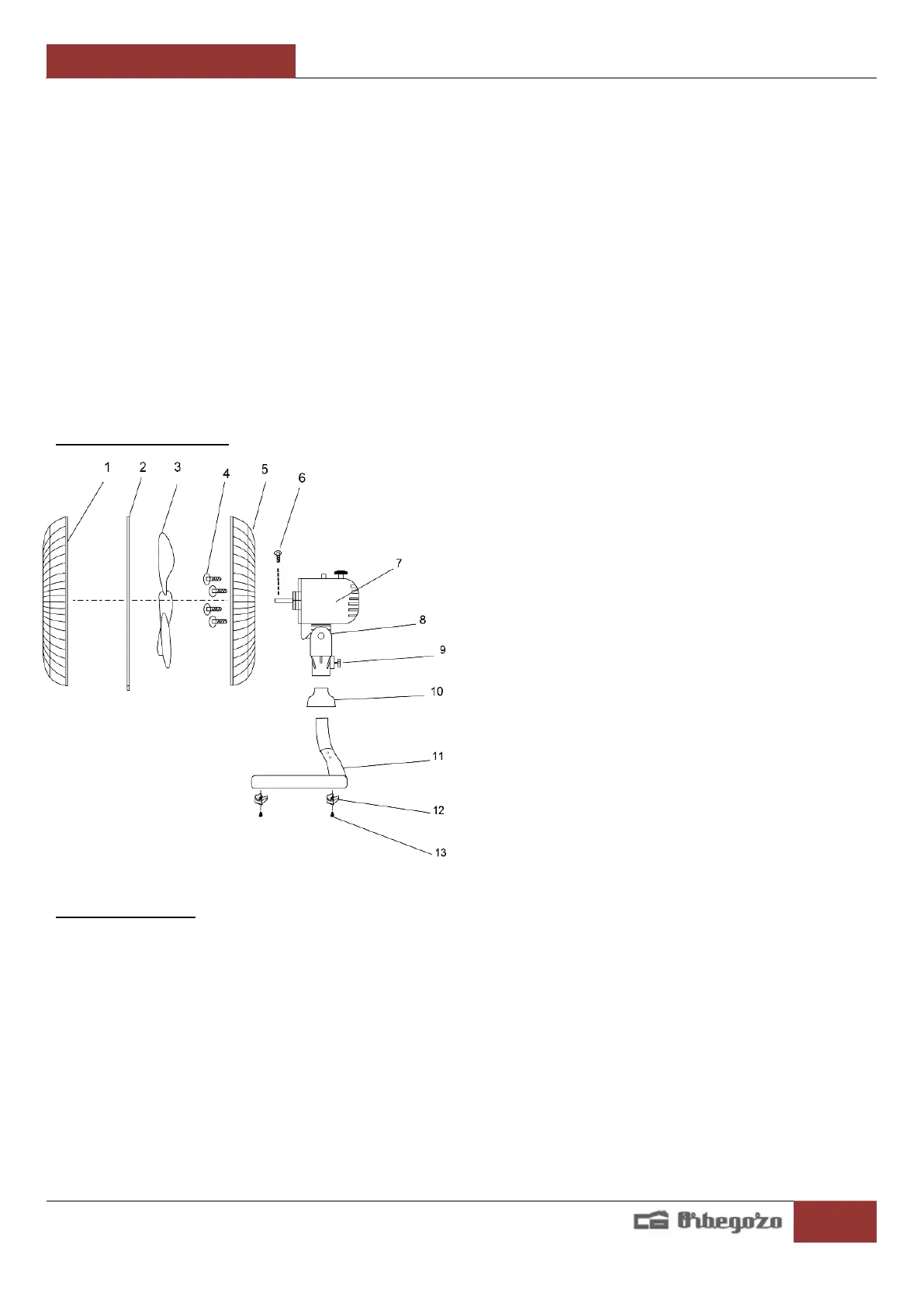

COMPONENTS
1. Front grille
2. Fixing ring with screw
3. Blades
4. Grille fixing screws
5. Rear grille
6. Blade fixing screw
7. Engine
8. Fan support
9. Bracket connection screw
10. Base cover
11. Frame
12. Frame plastic pad
13. Plastic pad screws
MOUNTING
TABLETOP
1. Loosen the fan bracket connecting screw if necessary. Place the rack through the base cover. Insert the
frame into the neck of the fan. Retighten the fan bracket connecting screw.
2. Loosen the grille fixing bolts. Mount the rear fan grille to the motor housing. Retighten the bolts.
3. Mount the blades to the motor shaft by matching the blade fixing screw with the slot in the shaft. Secure
the screw.
4. Assemble the front grill with the rear grill and secure it with the ring.
5. Check that the ring can join the edges of the two grilles (front and rear). If necessary loosen the screw.
Retighten the screw when the ring is correctly positioned.
