CP 152038
11

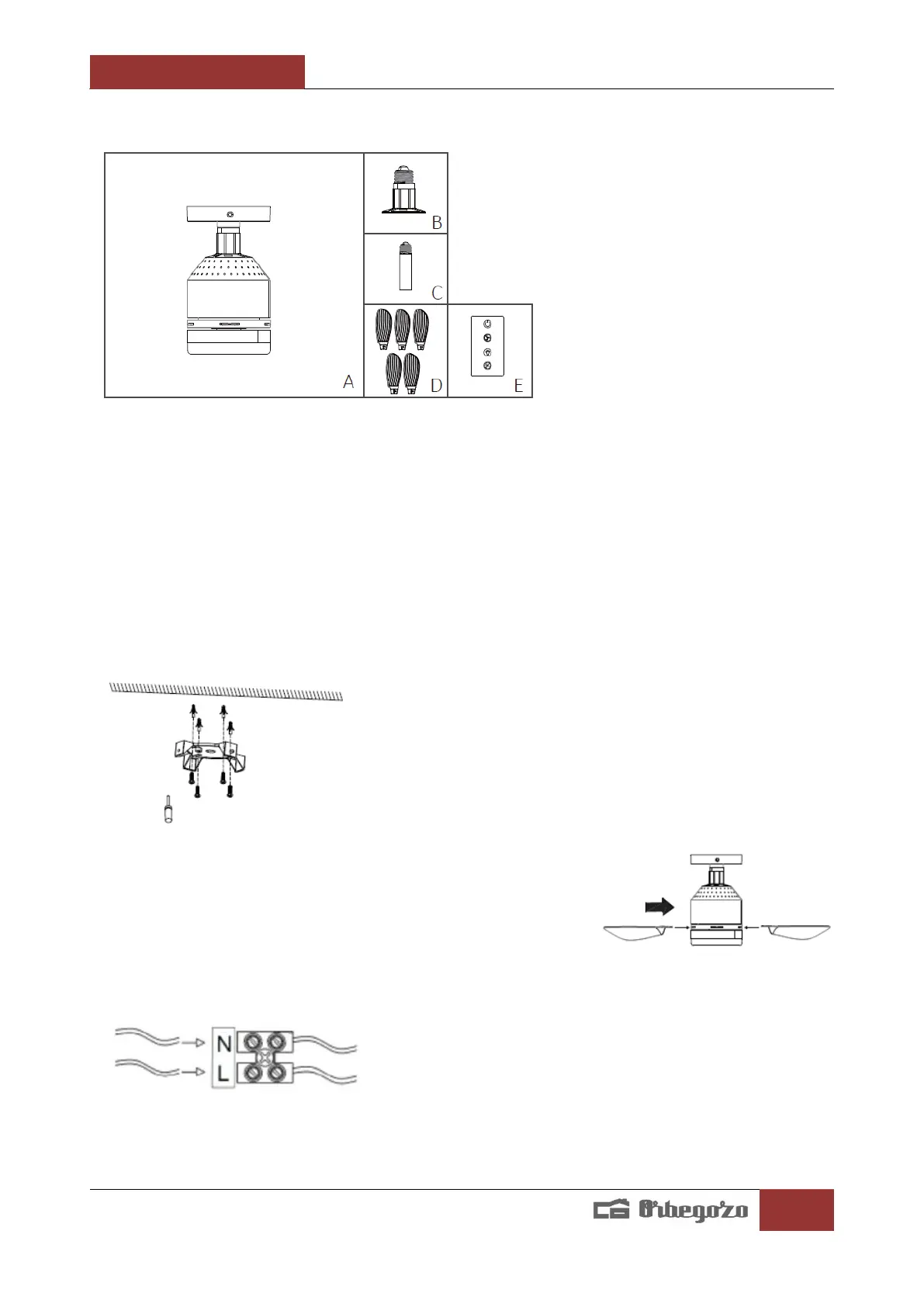

PARTS OF THE FAN
A. Fan
B. E27 bulb connector
C. Long E27 bulb extension
Mr. Aspas
E. Remote control
ATTENTION
5. To avoid possible electrical shock, the main power supply to the house must be disconnected before
installation.
6. Check if the cables were in good condition before installation.
7. All wiring must be done according to the regulations for low-voltage electrical installations.
8. All screws should be checked before turning on the ceiling fan.
INSTALLATION STEPS
Fixed installation with ceiling support
1. Attach the ceiling mount:
- Wood ceilings: Screw directly to the ceiling with 4 wood screws.
- Concrete ceilings: Drill two holes in the ceiling using a 6 mm drill bit
and insert the appropriate anchors, then secure the bracket with lag
screws.
2. Insert the fan blades into the corresponding slots, one by one,
paying attention to the direction of the blades.
3. Make the electrical connection by joining the phase and neutral
cables with the cables of your installation:
Neutral wire – Blue (in some cases it may be white)
Phase cable – Brown, black or gray
