CP 142060
18

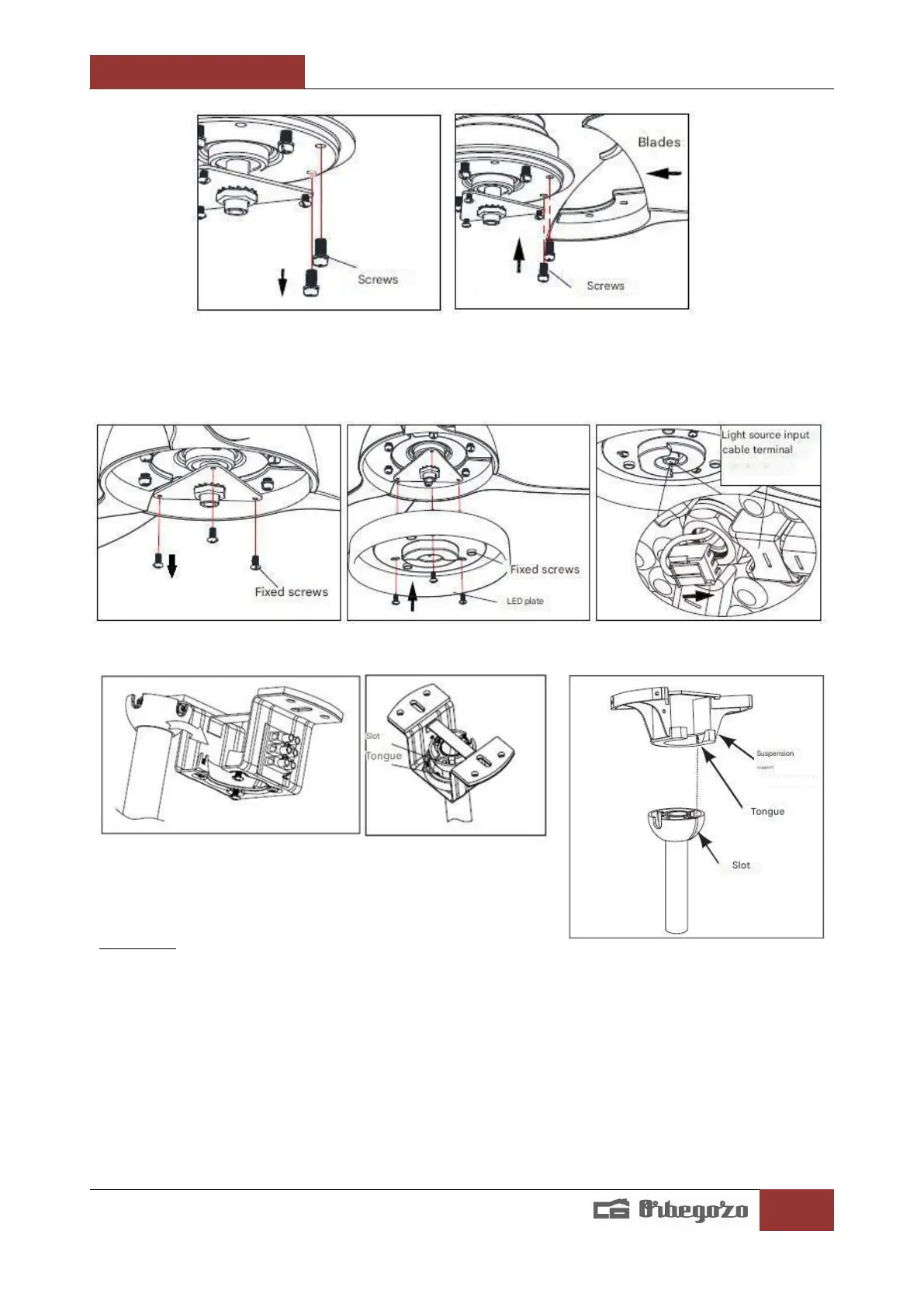

5. Remove the pre-installed screws on the lamp holder and screw the lamp in place using these.
Once the lamp is in place, connect the LED board as shown in the picture. Then connect the
wires to the light kit.
6. Carefully lift the fan and place the tilting support bar into
the suspension bracket attached to the ceiling. Make sure
the ball slot is properly aligned with the tab on the support
bar.
WARNING
The fan should be hung with at least 230 cm of clearance from the floor to the blades.
