CP 128105
16

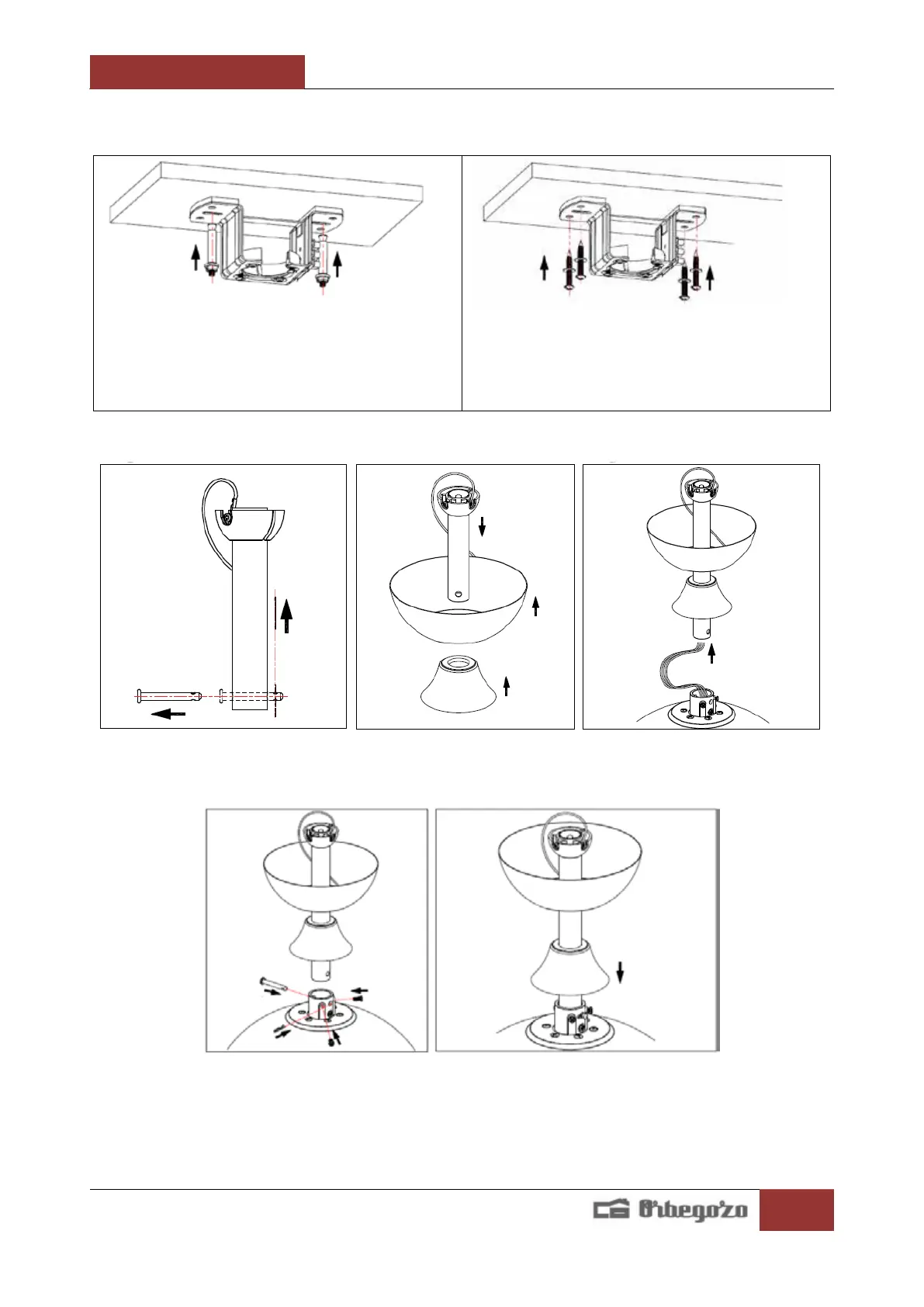

FAN INSTALLATION
1. Position the roof support with the two screws and plugs (depending on the type of roof)
On concrete ceilings, drill two 8mm holes and
insert the screw. Align the bracket with the
hole, and then tighten the nut.
On wooden ceilings, fasten the bracket using
the 4 screws.
2. Pass the support bar through the hole in the docking cover
3. Loosen the motor joint bolts and attach the bar with cover to the motor using the flanged pin
and bolts
ATTENTION: It is very important to ensure that the flanged pin is correctly installed and
secured. Poor fixing of the pin can cause the fan to fall.
