ADDITIONAL INFORMATION

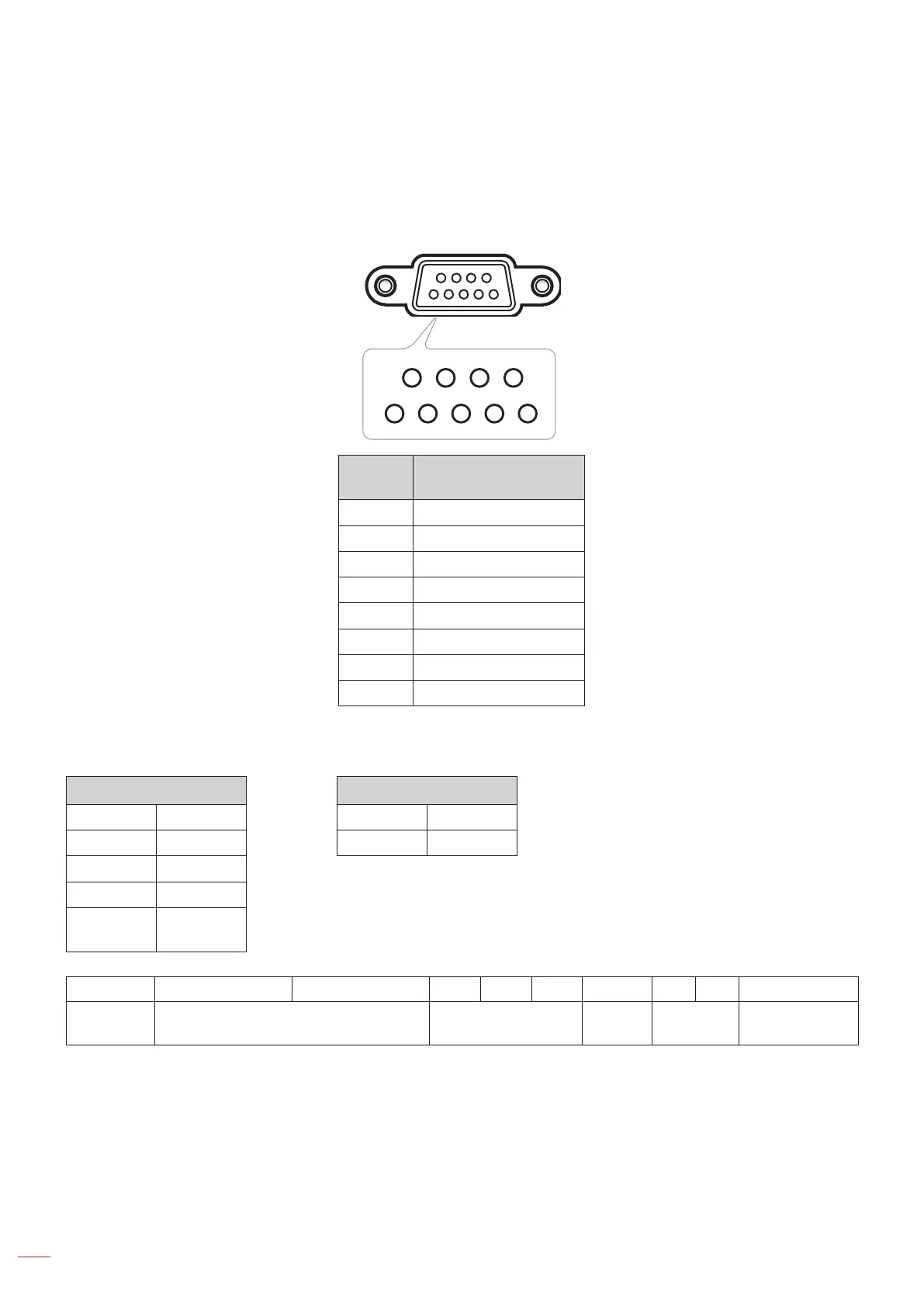

RS232 Protocol Function List

Note: IFP supports RS232 and RJ45 (port 23) control command.

RS232 Pin Assignments

12345

6789

Pin No.

Spec.

(from IFP side)

1 N/A

2 TXD

3 RXD

4 N/A

5 GND

6 N/A

7 N/A

8 N/A

RS232 RJ45 Control Connection

RS232 Settings LAN Control Settings

Baud Rate 9600 IP Machine IP

Data Bits 8 Port 4023

Parity None

Stop Bits 1

Flow

Control

None

~ X X X X X X X CR

Lead Code

Device ID

(where 01 indicates Device ID = 01)

Command ID Space Variable Carriage return
