1-8

Part Names

1-4 Part Names

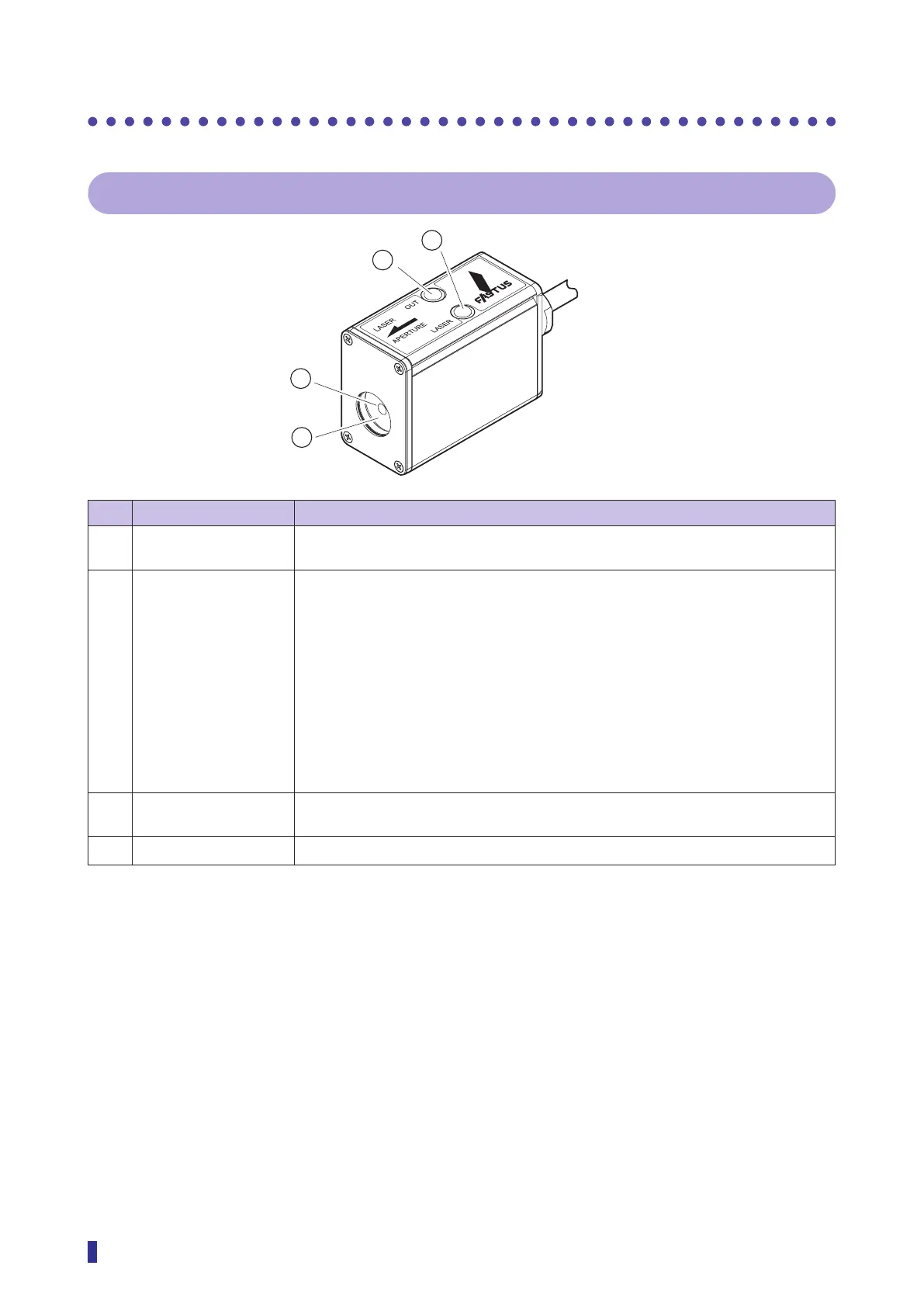

1-4-1 Sensor Head

4

1

2

3

No. Name Description

①

Laser emission

indicator

Illuminates green when the laser is emitting, and turns off when the laser is OFF.

②

Output indicator The lighting color and lighting status change according to the output status and the

levels of errors and warnings.

Illuminated green

: Normal measurement

Illuminated red

: Alarm output ON

Blinking green

: Minor warning

Blinking orange

: Major warning

Blinking red

: Error

For details of errors and warnings, refer to

 “6-1-2 Error/Warning Categories and

Order of Priority” (page 6-3).

③

Laser emission outlet This is the outlet for the ring laser pointer.

Do not look into the outlet when the ring laser pointer is ON.

④

Silicon lens Receives the infrared rays emitted from the measurement target.
