1-2
General Description
1-1 General Description

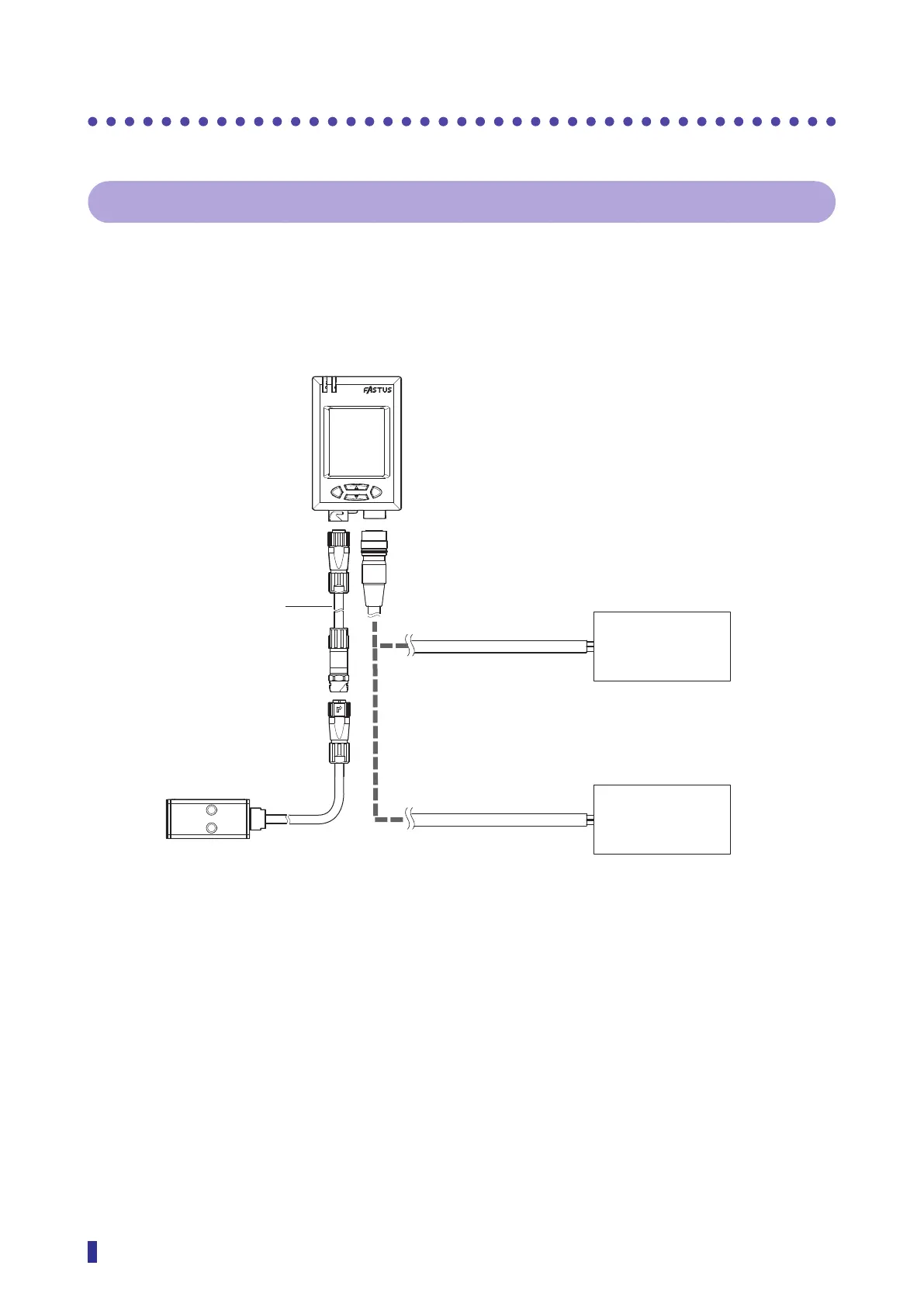

1-1-1 System Configuration
The TI-S series is composed of three parts: the sensor head, controller, and various connector cables.
When a general-purpose I/O cable is connected, the external input, analog output, and upper/lower limit
alarm output can be used. When an IO-Link cable is connected, communication using IO-Link is possible.
MODE
TI-S
PWR
OUT
SET
PLC or actuator, motor
driver, or similar device
with analog input
IO-Link Master
General-purpose I/O cable
(9 wires) (option)
Controller
TI-SC (E)
3 m/10 m extension cable
(option)
IO-Link cable
(option)
• TI-SCA03-G3K
IO-Link master side: 3-wire open-end, 3 m length
• TI-SM1203-G03K:
IO-Link master side: M12 4-pin plug, 0.3 m length
Sensor head
TI-S30
• TI-SSA06-G3K (3 m length)
• TI-SSA06-G10K (10 m length)
● Connect to the
external device using a
general-purpose I/O
cable connection
Various external input, analog output,
and upper/lower limit alarm output can
be used.
● Connect using IO-Link
Connect using an IO-LINK cable with
open-end or M12 connector
according to the connection method
of the IO-Link Master.
• TI-SCA09-G3K (3 m length)
