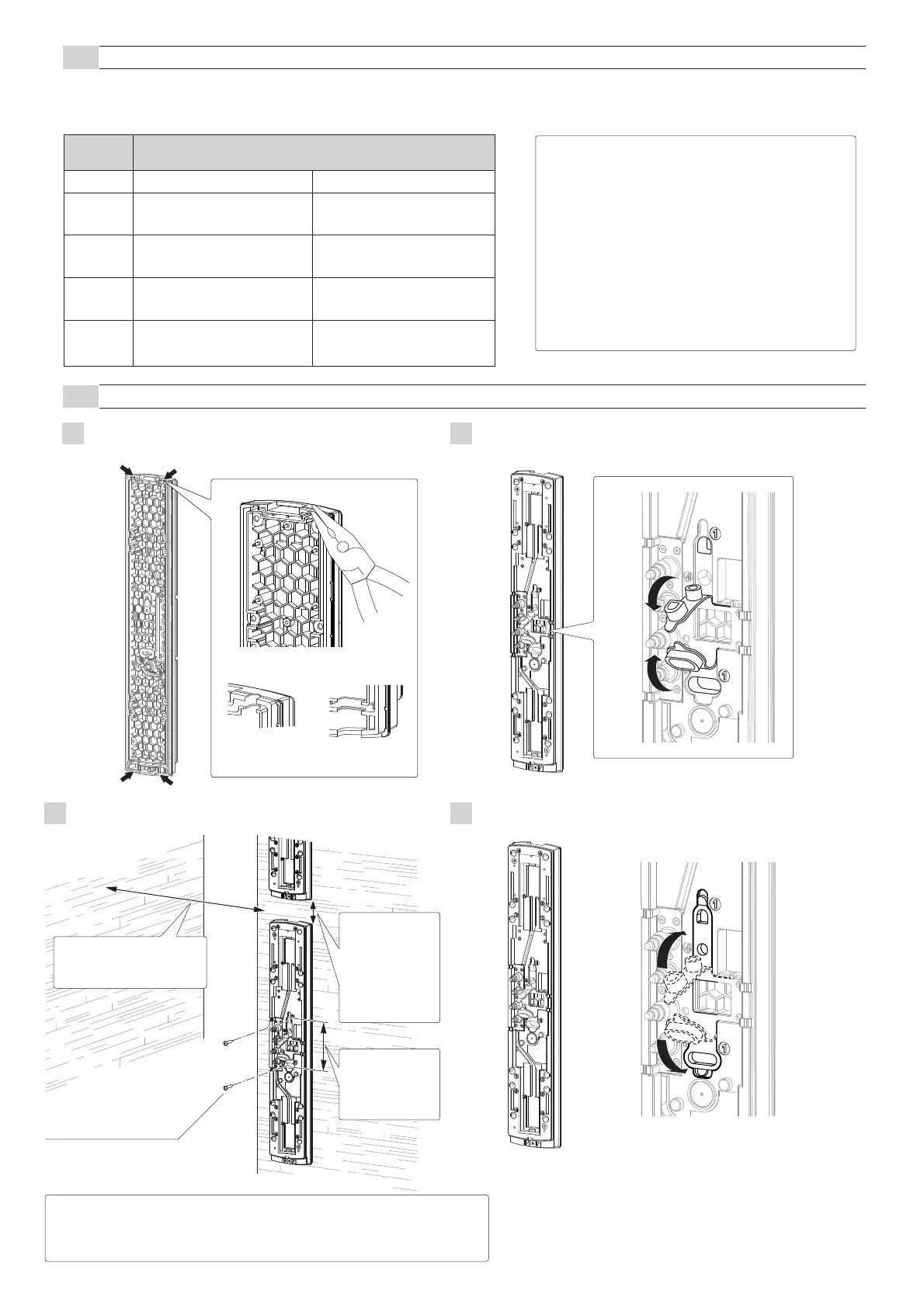

-6-

2

Pull the waterproof packing (x2) marked as "①" at the

center of the chassis.

3

Mount the chassis to the wall.

4×20 self tapping

(with rubber washer)

Side wall

Distance from the side wall:

at least 1m

If two detectors

are installed, the

distance between

the upper and

lower detector

should be at least

20 mm.

4

Put the waterproof packing back in place.

2-6

WALL MOUNTING

- Ensure that the wiring distance from the power supply is within the range shown in the table below.

- When using two or more units on one wire, the maximum length is obtained by dividing the wire length listed below by the number

of units used.

2-5

WIRING DISTANCE BETWEEN POWER SUPPLY AND DETECTOR

Note>>

UL/c-UL requires to be connected to a UL/c-UL

Listed burglar alarm power limited power supply of

providing a nominal input of 12 VDC (10.5 to 30

VDC) 30 mA (SL-200/350/650 QDM) or 22 mA

(SL-200/350/650 QDP), and battery standby time of

4 hours.

Wiring method shall be in accordance with the

National Electrical Code (ANSI / NFPA 70),

Canadian Electrical Code, Part 1 (CSA C22.1)

Safety Standard for Electrical Installations, local

codes, and the authorities having jurisdiction.

Pitch: 83.5 mm

For connection

to gang electric

box

1

Open the wiring guide on the back of the chassis using

pliers as shown.

<After the cutting>

[ Upper ] [ Lower ]

MODEL

WIRE SIZE

12 VDC 24 VDC

2,100 m

(7,000 ft.)

3,300 m

(10,000 ft.)

5,300 m

(17,000 ft.)

8,300 m

(27,000 ft.)

0.33 mm

2

(AWG22)

0.52 mm

2

(AWG20)

0.83 mm

2

(AWG18)

1.31 mm

2

(AWG16)

SL-200QDM /

SL-200QDP /

SL-350QDM /

SL-350QDP /

SL-650QDM

SL-650QDP

600 m

(2,000 ft.)

900 m

(3,000 ft.)

1,500 m

(4,900 ft.)

2,500 m

(8,000 ft.)

Note>>

Install the unit vertically at a height where an object can be detected without

fail. In case to be stacked, be careful to cover the detection area totally.
