-14-
When an alarm is activated during alert status, the detector memorizes the alarm activation.
This will allow you to check which detector activated an alarm even when multiple units are installed.
In Remote mode, connect control voltage signal terminal (system arming status voltage output terminal) of control panel to ALARM
MEMORY INPUT terminal (11).

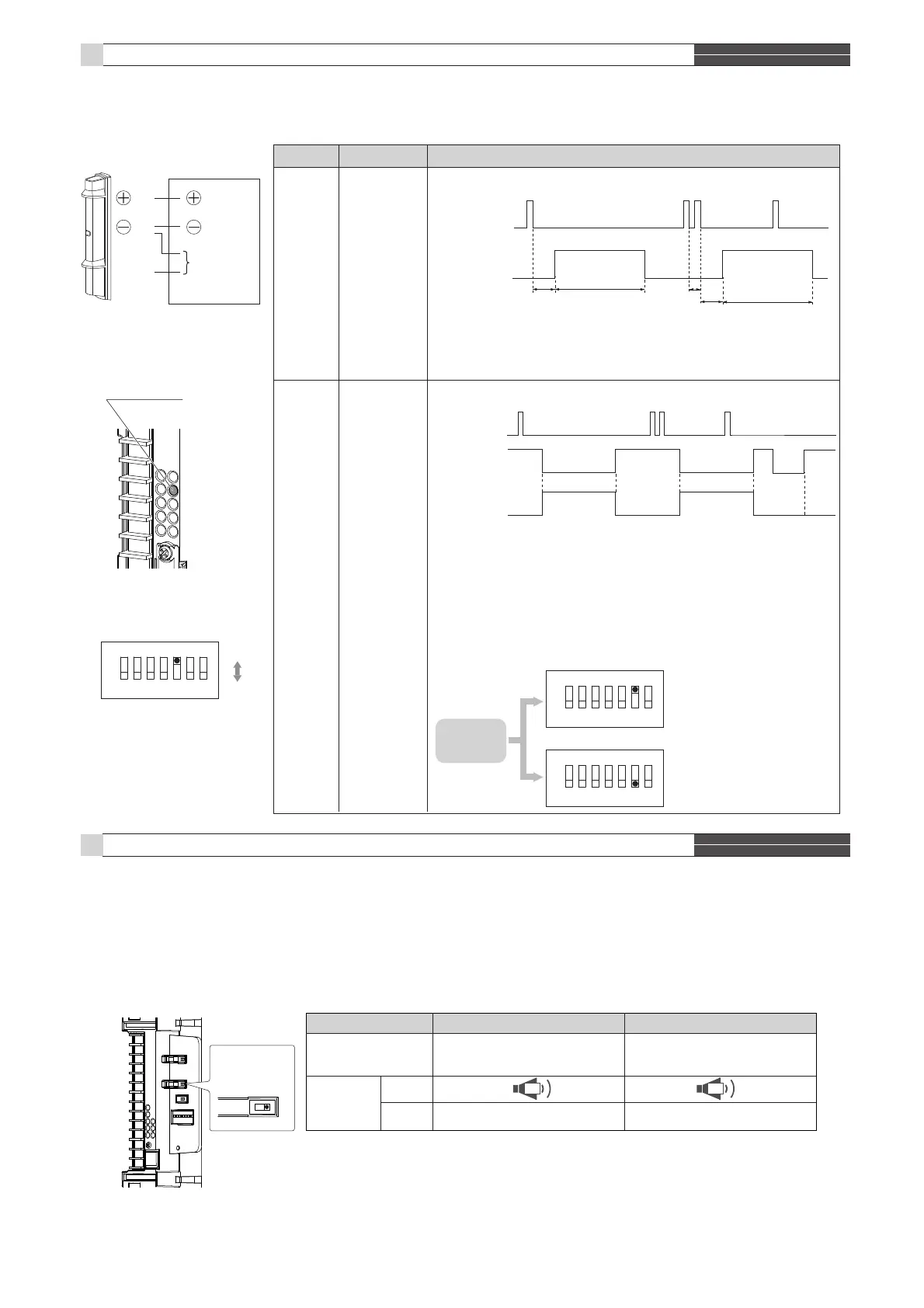

ALARM MEMORY FUNCTION
SL-QDM
SL-QDP
5
SOUND ASSIST FUNCTION
SL-QDM
SL-QDP
6
ON
OFF OFF OFF
POSITION
Walk testOptical alignment
This function informs you of the operation and condition by sounds.
It works well on the two situations below:
< Optical alignment >
The optical alignment level can be checked with sound. The stronger the sensitivity, the faster the sound pattern. It sounds when
the alignment level indicators are illuminated, the tamper button is not pressed.
< Walk test >
Operation check can be performed by the beep sound at interruption for 5 minutes after the tamper button on both the transmitter
and receiver are pressed (after the cover is closed). The sound assist function automatically finishes after 5 minutes.
SOUNDING
DETECTOR
Receiver
SL-QDM: Receiver and transmitter
SL-QDP: Receiver
ONON
Sound assist
[ON/OFF]
ON
Receiver
1234567
Alarm memory
indicator LED
AUTO
(Timer mode)
ON
OFF
MANUAL
(Remote mode)
Alarm
output
Alarm
memory
indicator
< Operating time chart >
FUNCTIONMODEPOSITION
ON
OFF
Alarm Alarm Alarm
5 min. 55 min.
within
5 min.
5 min. 55 min.
Alarm
output
Alarm
memory
indicator
< Operating time chart >
ON
OFF
Alarm Alarm Alarm
The alarm memory indicator is illuminated after approximately 5 minutes since the
last alarm generated, and kept illuminated for approximately 55 minutes.
The duration of illumination will not be extended even if an alarm generated while
the alarm memory indicator is illuminated. Approximately 55 minutes later, the
indicator will be automatically reset and returned to normal mode.
When an alarm generated, the detector retains it in the memory.
When switching the security system from "System armed" to "System disarmed"
(switching the position), the alarm memory indicator of the detector that
memorizes the alarm memory indicator will be illuminated.
When putting the security system back on (switching the position), the alarm
memory indicator will be turned off and reset.
Once the reset is made, the alarm memory indicator will not be illuminated even if
the security system is switched to "System disarmed" until an alarm outputs again.
Armed
Disarmed
Security
system
System armed: 0~1VDC (grounded)
System disarmed: OPEN or + 5~30VDC
Negative (N.O.)
System armed: OPEN or + 5~30VDC
System disarmed: 0~1VDC (grounded)
Positive (N.C.)
Selectable
Output
ON
Receiver
1234567
ON
Receiver
1234567
< Dip switch 6: Alarm memory [Positive/Negative] >
< Dip switch >
< Indicator LED >
< Wiring example >
CONTROL PANEL
POWER
Control
voltage
signal
terminal
Receiver
(1)
(2)
(11)
ON
OFF
