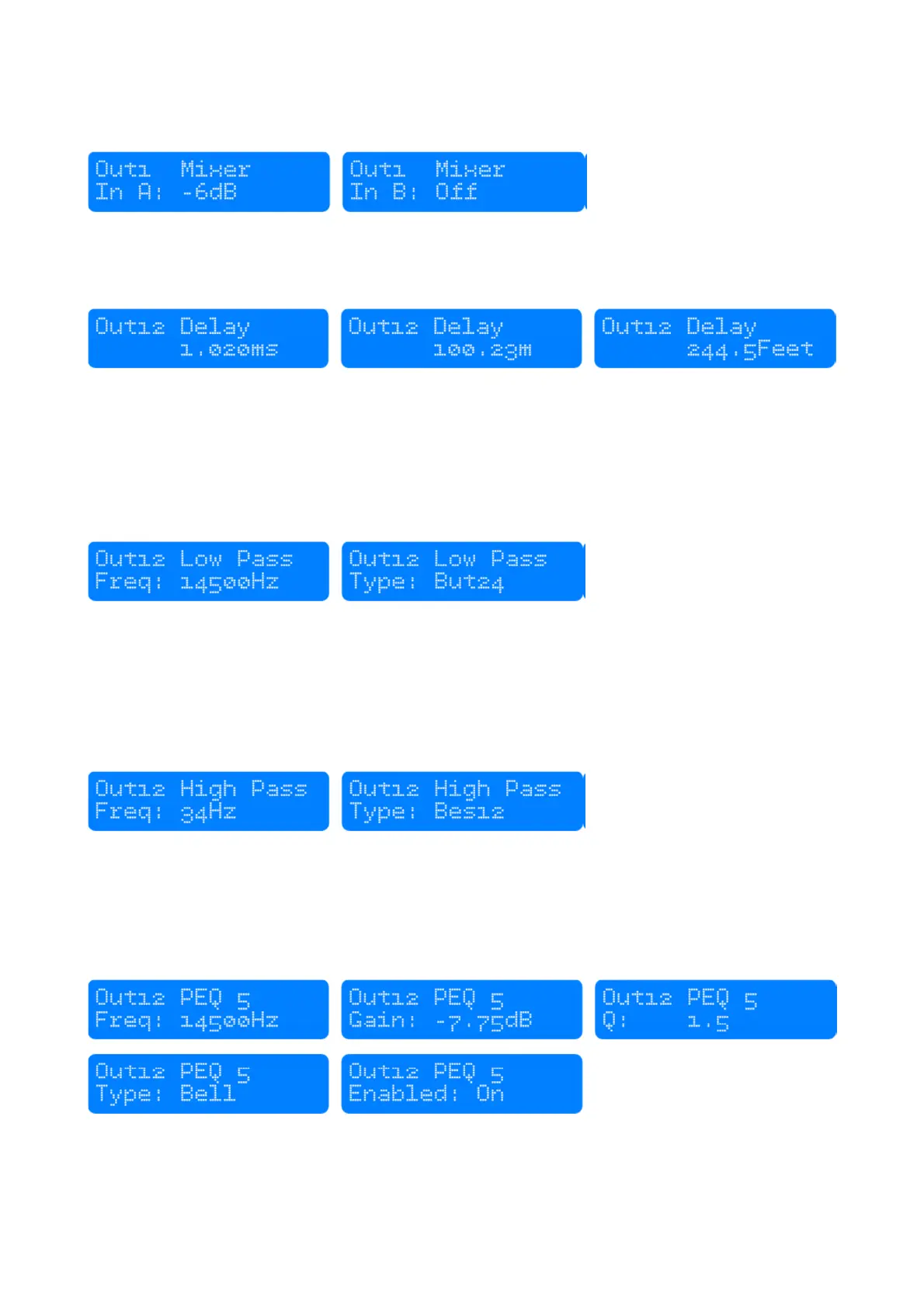

5.2.2 Mixer
Turn the rotary encoder to mix the signal from the selected input to the selected output. Push the rotary
encoder to select the input. Attention: The mixer is only available while the outputs are not linked by Channel
Link. If the channels are linked, the mixer will be skipped.
5.2.3 Delay
Set the delay time by turning the encoder. Select the displayed unit (ms or s, mm or m, feet, inches, or mils)
by pushing the encoder.
5.2.4 Low-pass filter (LPF)
Adjust the low-pass filter frequency by turning the rotary encoder. You can switch the low-pass filter off by
turning the rotary encoder up (clockwise) until the frequency passes 20 Hz. Press the rotary encoder to
change the filter type. Select the type by turning the rotary encoder. You can choose from: Butterworth 6dB,
Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz Riley12dB, Butterworth 18dB, Bessel 18dB,
Butterworth 24dB and Bessel 24dB. Higher order filters may be set by adding filter sections in the PEQ
blocks (section 5.2.6).
5.2.5 High-pass filter (HPF)
Adjust the high-pass frequency by turning the rotary encoder. You can switch the high-pass filter off by
turning the rotary encoder down (counterclockwise) until the frequency passes 20 Hz. Press the rotary
encoder to change the filter type. Select the type by turning the rotary encoder. You can choose from:
Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz Riley 12dB, Butterworth 18dB,
Bessel 18dB, Butterworth 24dB and Bessel 24dB. Higher order filters may be set by adding filter sections in
the PEQ blocks (section 5.2.6).
5.2.6 Parametric equalizer (PEQ)
There are 10 bands of parametric equalization. Each band can be adjusted freely over the frequency range
of 20 Hz to 20 kHz. Adjust the frequency by dialing the rotary encoder. Press the rotary encoder to select the
parameters. The available parameters are: Frequency (20Hz to 20kHz), Gain (-12dB to +12dB), Q (0.2 to
25), Enabled (On or Off), Type (Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low
Pass). For the Shelving filters, the Q value sets the steepness of the filter in dB/Oct.
