W-C
W-A W-B
X2 X2 X2

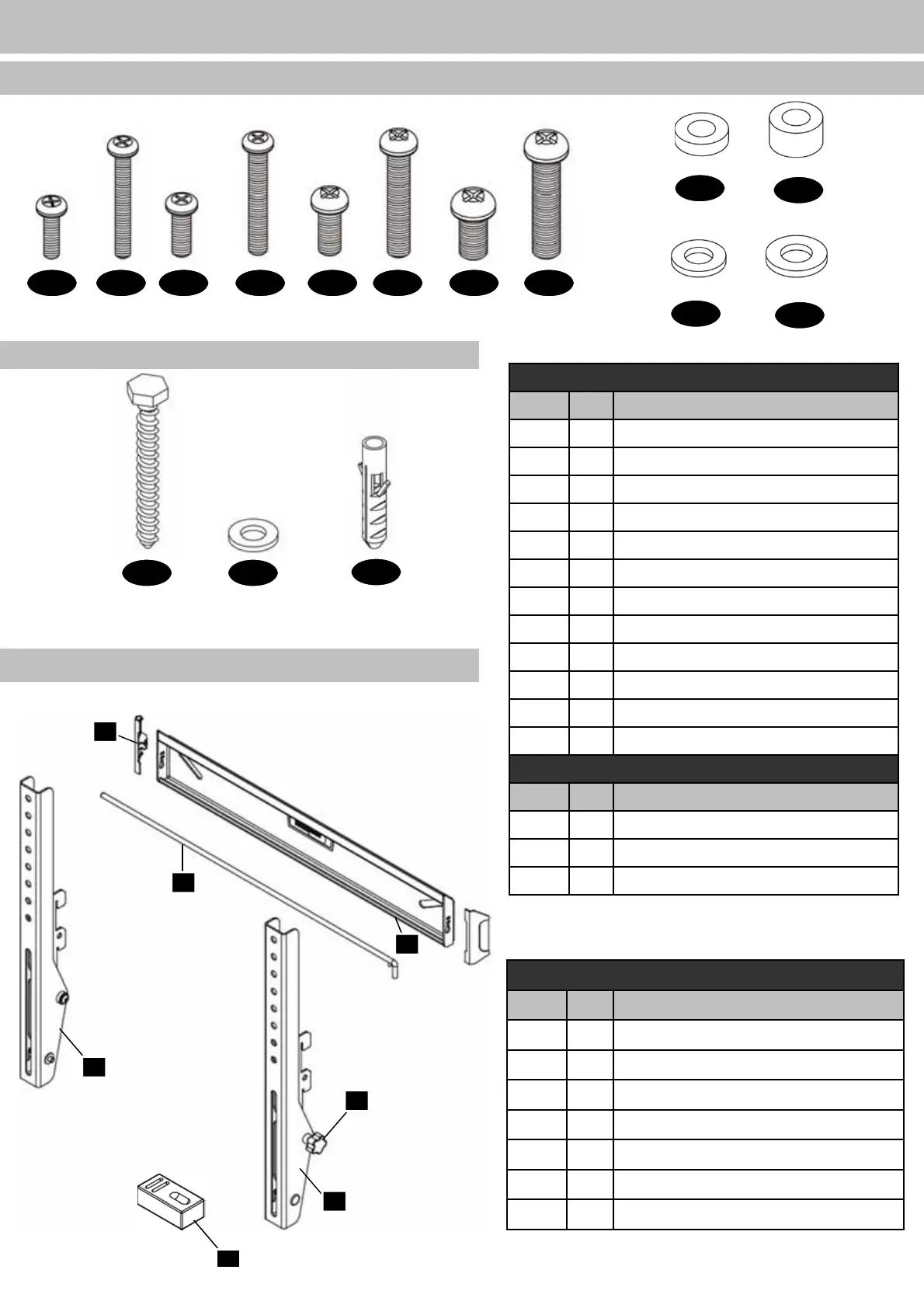

CONTENTS / CONTENIDO
SCREW / HARDWARE PACK FOR WALL
SCREW / HARDWARE PACK FOR TV / TORNILLOS / KIT PARA LA TV
Wall Kit 516-2vC
Monitor Kit L-U-vD
CONTENTS / CONTENIDO
5
2
3
4
6
1
Contents
Part # Qty
Description
1 1 Wall Plate
2 1 Vertical Rail - Right
3 1 Vertical Rail - Left
4 1 Locking Bar
5 2 Wall Plate Covers
6 2 Tilt Tension Knobs
7 1 Stud Finder/Level
7
Screws / Hardware for TV (BOP:697-613-00)
Part # Qty
Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6 - M8 x 5mm
M-J 4 Round Spacers: M6 – M8 x 10mm
M-K 4 Round Washer: M4-M5
M-L 4 Round Washer: M6-M8
Screws / Hardware for Wall (BOP:697-582-00)
Part # Qty
Description
W-A 2 Lag Bolts (8mm x 65mm)
W-B 2 Steel Washer (18mm x 8.5mm x 1.5mm)
W-C 2 Wall Anchor (10mm OD x 8mm ID)
M-A M-B M-C M-D M-E M-F M-G M-H
M-I
X4 X4 X4X4 X4 X4 X4 X4
X4
Spacers
M-L
Washers
M-J
X4
Spacers
M-K
Washers
X4 X4
PN: 888-61-114-M-01
