P4
W-A W-B W-C
X4 X4 X4

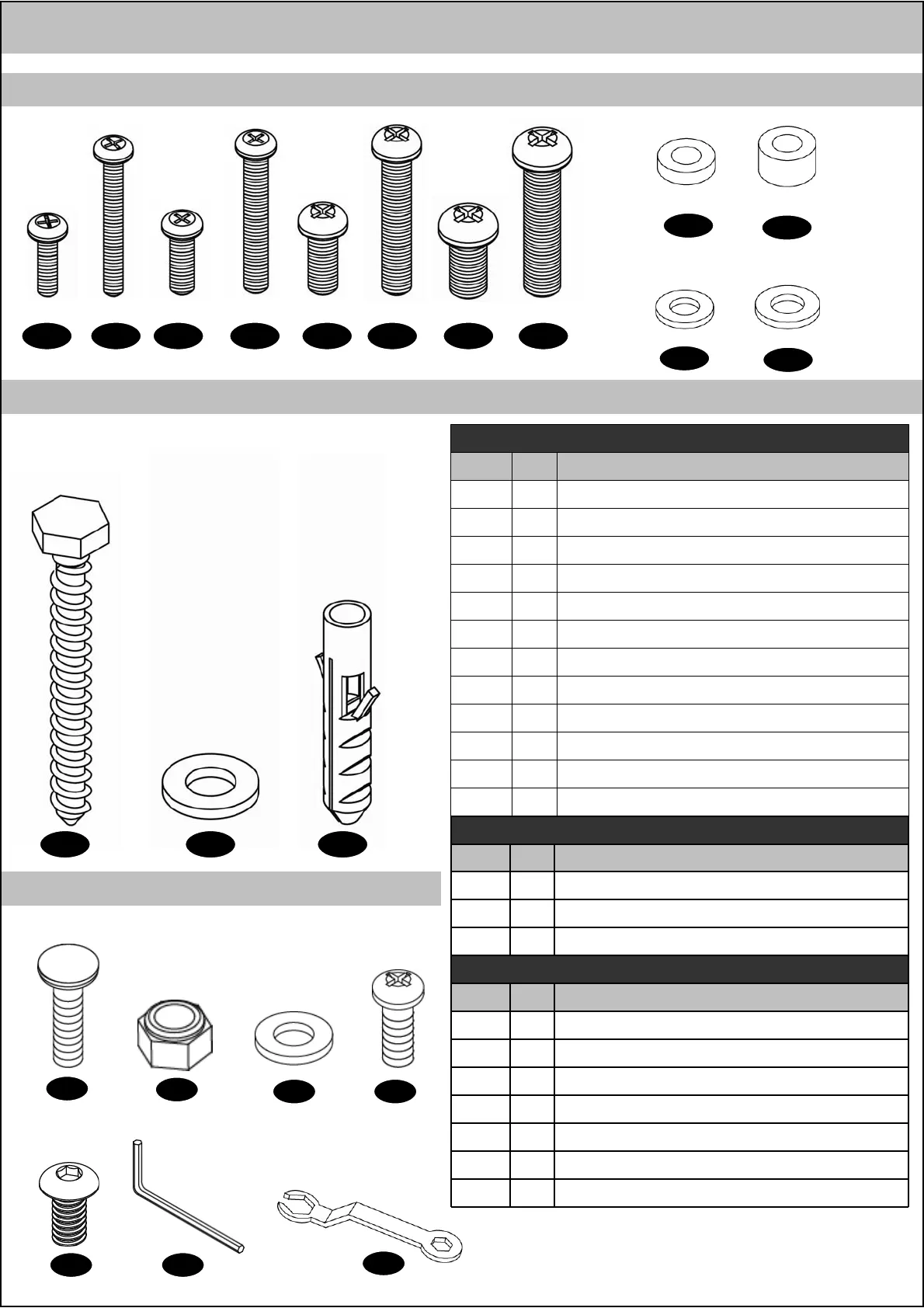

SCREWS/HARDWARE PACK FOR WALL
SCREW / HARDWARE PACK FOR TV / TORNILLOS / KIT PARA LA TV
CONTENTS / CONTENIDO
X 8
X 2X 4
X 1
X 8
P-G
P-A
P-D
P-B
P-C
X 4
P-E
X 2
P-F
OM1100407vA
SCREW / HARDWARE PACK FOR PRODUCT
Screws / Hardware for Wall Mounting (Wall Kit 516-4vC)
Part # Qty
Description
W-A 4 Lag Bolts (8mm x 65mm)
W-B 4 Steel Washer (18mm x 8.5mm x 1.5mm)
W-C 4 Wall Anchor (10mm OD x 8mm ID)
Screws / Hardware for Product (OM1100407vA)
Part # Qty
Description
P-A
8 M6 Carriage Bolt
P-B
8 M6 Nylon Lock Nut
P-C
4 M6 Washers
P-D
2 M5 Phillips Screw
P-E
4 M5 Button Head Screw
P-F
2 3mm Allen Wrench
P-G
1 Wrench
Wall Kit 516-4vC
M-A M-B M-C M-D M-E M-F M-G M-H
M-I
X4 X4 X4X4 X4 X4 X4 X4
X4
Spacers
M-L
Washers
Monitor Kit L-U-vD
M-J
X4
Spacers
M-K
Washers
Screws / Hardware for Flat Panel (Monitor Kit L-U-vD)
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
