7 of 15
888-61-265-W-00 rev. B • 11/18

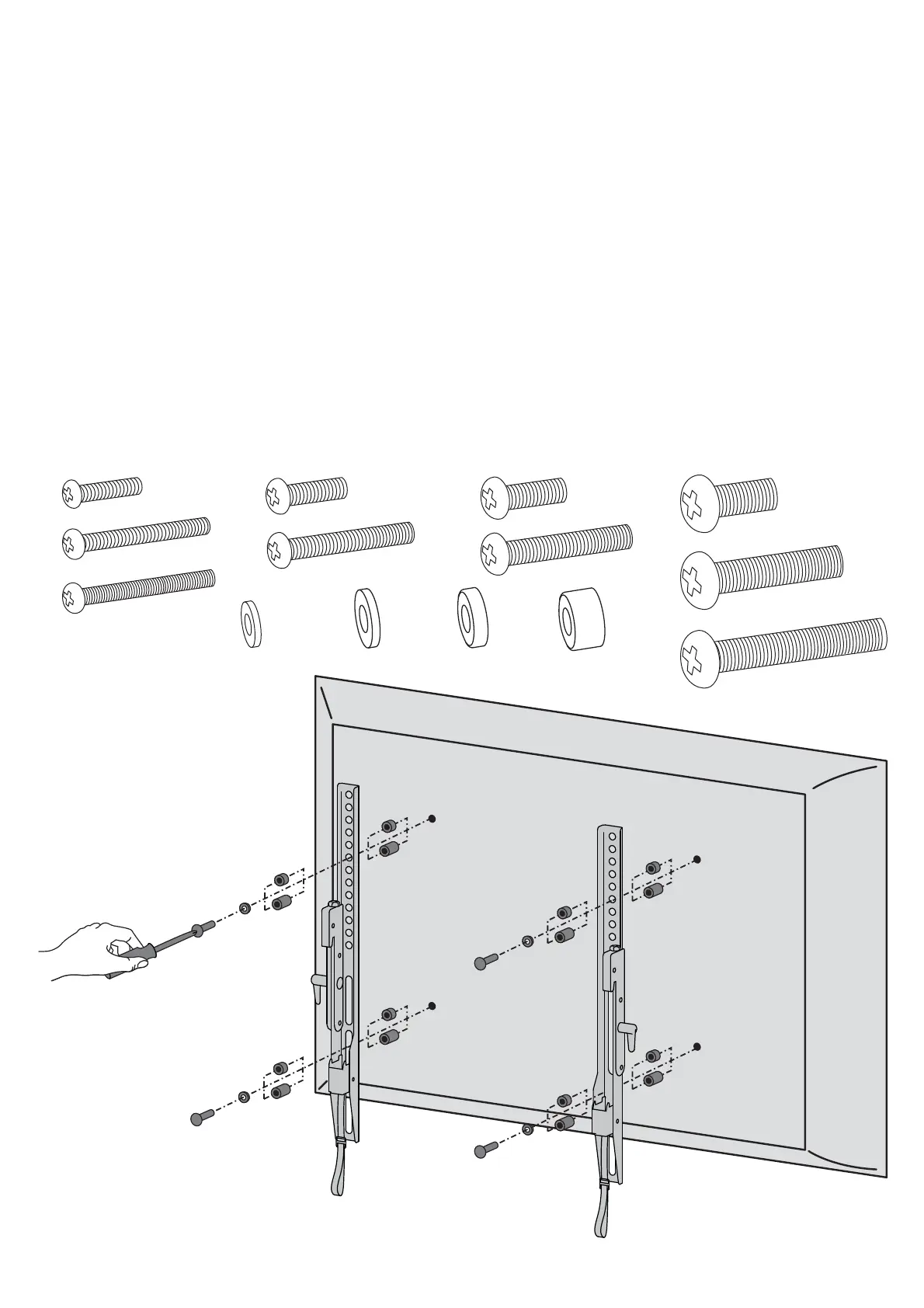

Find the one size screw that fi ts your TV. You will use the 4 screws of that size.
Use the 4 washers that fi t your screw size.
Spacers may be used to help screws/brackets attach without interference.
WARNING: When using included M4 hardware with this mount, the maximum weight of the TV/Monitor being
attached must follow VESA MIS-D specifi cation and cannot exceed 30.8 lbs (14 kg).
2
M4x15mm
M6x15mm
M6-M8x5mm
M8x15mm
M4-M5 Washer
M4x30mm
M4x45mm
4x
4x
4x 4x 4x 4x
4x
4x
4x
4x
4x
4x
M8x45mm
M6-M8x10mm
M8x30mm
M6-M8 Washer
M6x30mm
M5x15mm
4x
4x
M5x30mm
