•Theunitmustalwaysbeinstalledvertically.

•It’s important that the unit is completely leveled before it is put into operation.

•Place the unit preferably in a separate room (e.g. storage, laundry room or similar).

•When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection doors

should be easily accessible.

•Leavefreespaceforopeningtheremovablepanelsandforremovalofthemaincomponents(§3.4).

•The outdoor air grilles if possible be put in the northern or eastern side of the building and away from other exhaust outlets like

kitchen fan exhausts or laundry room outlets.

5.3 Installation

The unit must be installed in the following position.

It is important that the unit is vertical in order for the condensation drainage to work properly.

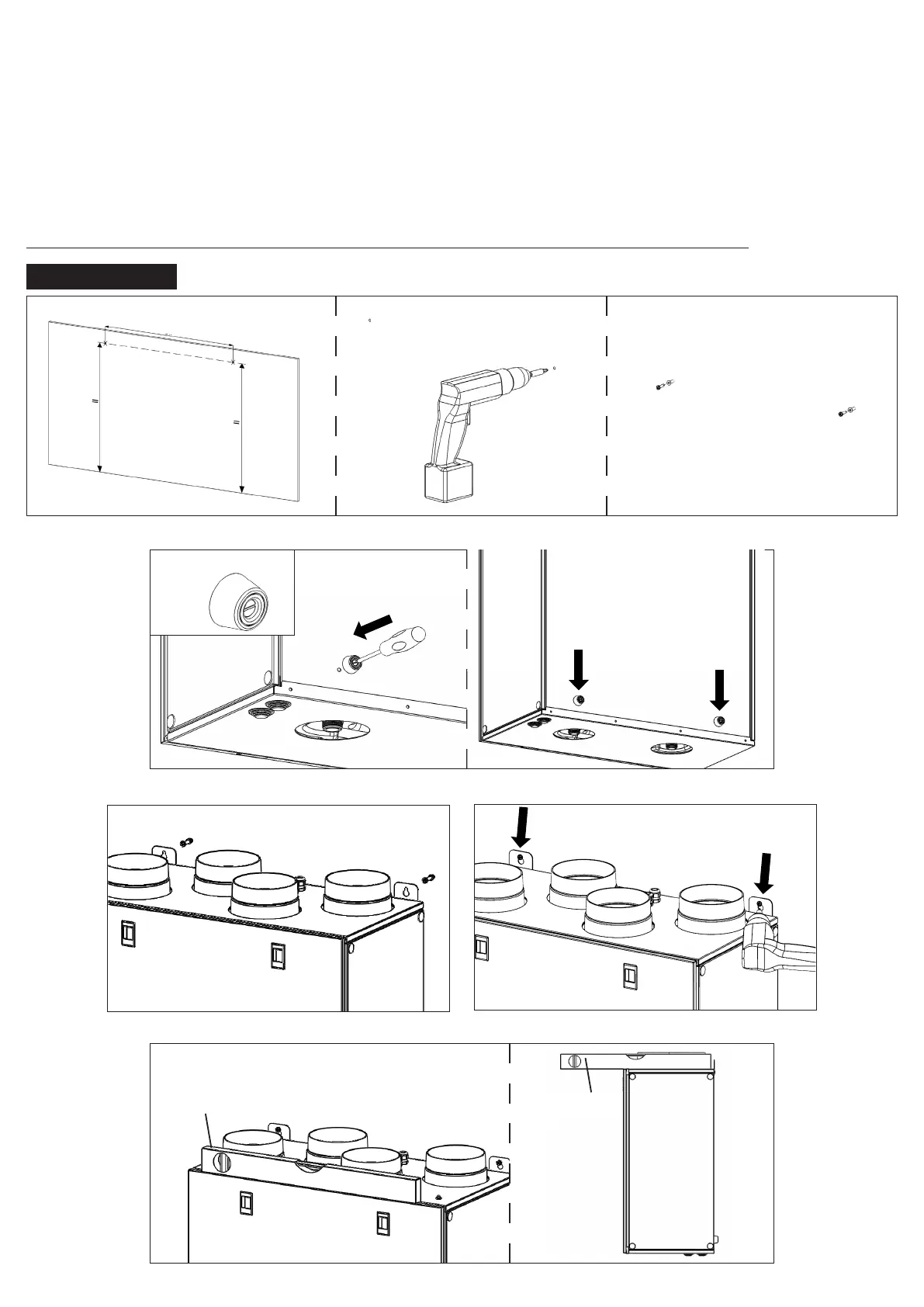

Fig. 5.a Fig. 5.c

517 mm

Fig. 5.b

Fig. 5.e

Fig. 5.g

Fig. 5.f

Fig. 5.d

Spirit level

Spacers

Spirit level

SITALI CXVA 280
