EN - 12
installed above the appliance, the safety
distance between cooktop and any
cupboard/cooker hood should be as
shown below.
HOB
Minimum
42 cm
Minimum
42 cm
Minimum
65 cm (with
hood)
Minimum 70
cm (without
hood)
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.
• If the base of the appliance is accessible
by hand, a barrier made from a suitable
material must be fitted below the base
of the appliance, ensuring that there is
no access to the base of the appliance.
2.5
instAllAtion of the hob
The appliance is supplied with an
installation kit including adhesive sealing
material, fixing brackets and screws.

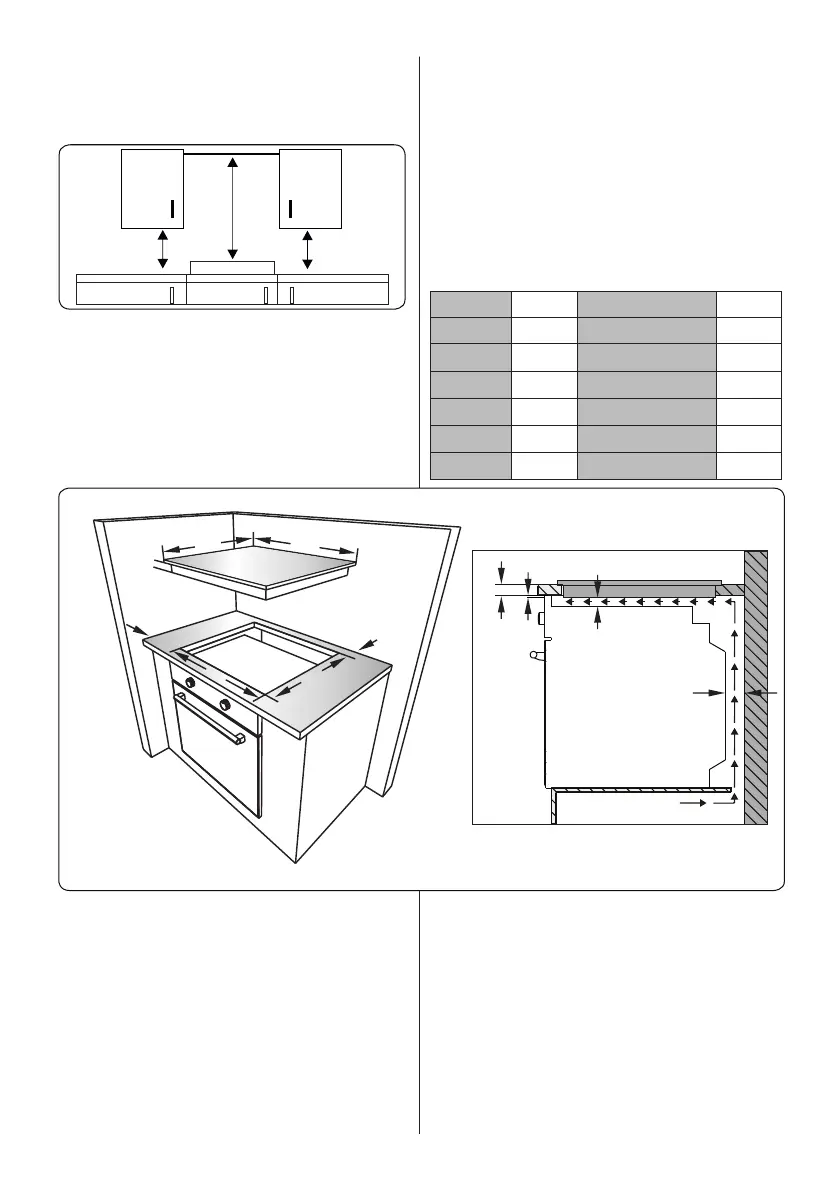

• Cut the aperture dimensions as
indicated in the figure. Locate the
aperture on the worktop so that, after
the hob is installed, the following
requirements are followed.
B (mm) 590 min. A (mm) 50
T (mm) 520 min. C (mm) 50
H (mm) 41-47.5 min. E (mm) 500
C1 (mm) 560 min. F (mm) 10
C2 (mm) 490 G (mm) 20
D (mm) 50 I (mm) 25
J (mm) 5
B
T
C2
A
C
C1
H
F
HOB
G
I
J
