7

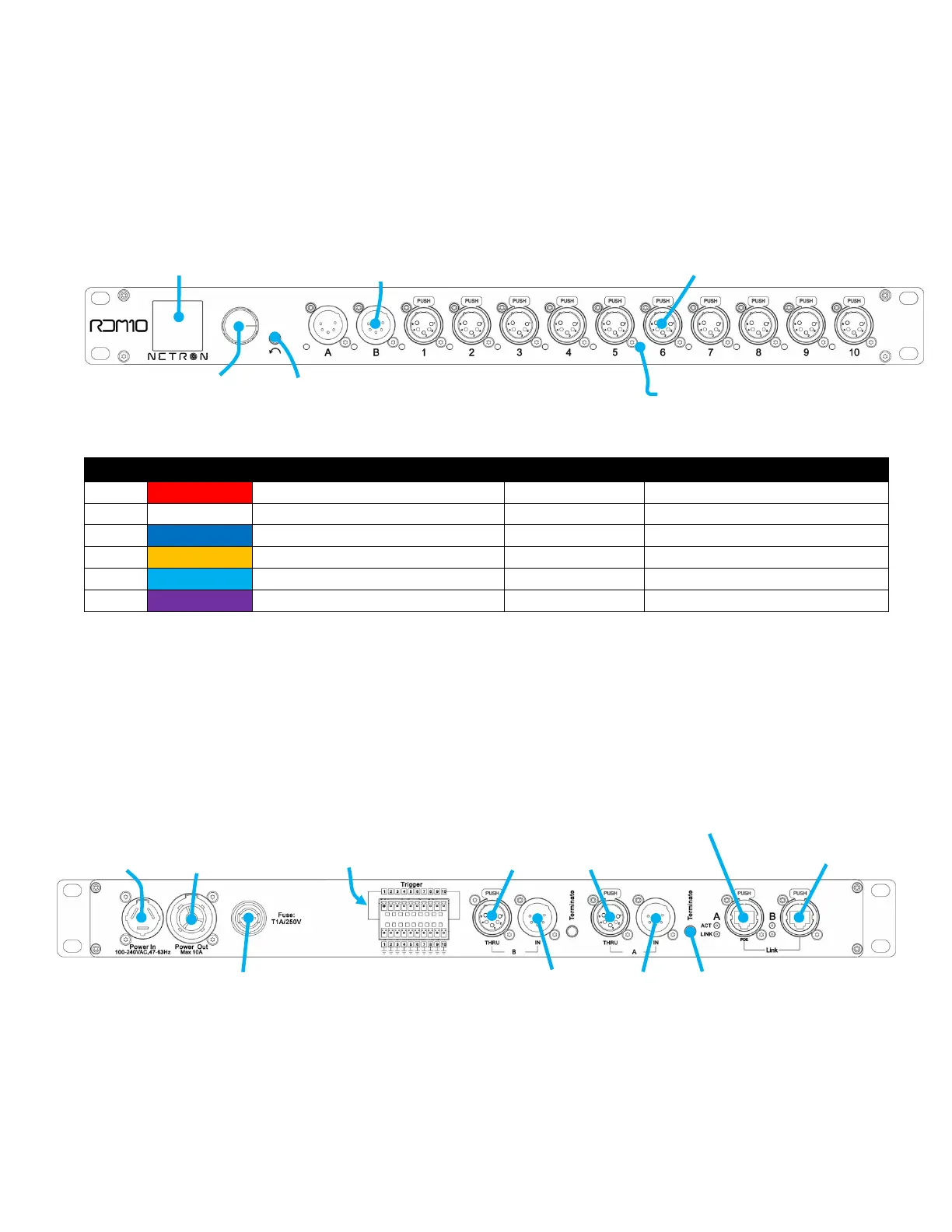

CONNECTIONS: FRONT & REAR PANELS
FRONT CONNECTIONS
- (10) 5pin DMX/RDM optically isolated ports
- Full color OLED display
- Encoder with Push-to-Select / Exit Button
DMX PORTS STATUS INDICATOR LEDs
Ports
LED Color
Solid
Slow Blink
Flashing/Strobing
DMX
Red
Error
DMX
White
active RDM communication
DMX
Blue
Assigned to A
No DMX Signal
DMX
Amber
Assigned to B
No DMX Signal
DMX
Cyan
Assigned to Merger
No DMX Signal
DMX
Purple
Set to Send Static DMX Value
The LEDs are dimmable from the System – Display menu, and can be turned off completely
if desired.
REAR CONNECTIONS
- (2) 5pin DMX Input
- (2) 5pin DMX Through
- (2) RJ45 network connections (1x POE)
- (10) Contact Closures (Terminal Block)
- Power In/Thru
Turn to scroll,
push-to-select
OLED Display
(2) 5-Pin
DMX Input
Menu return
button
Power Out
Power In
Fuse
RJ45 Network
connection w/POE
DMX Port Status
Indicator LED
Contact Closures
(Terminal Block)
(10) 5-Pin Opto-Isolated
DMX Outputs
5pin DMX Through
5pin DMX In
Terminate button
(120 Ohm) for DMX In
RJ45 Network
connection
